Back to product Download PDF
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Kitchen Galley

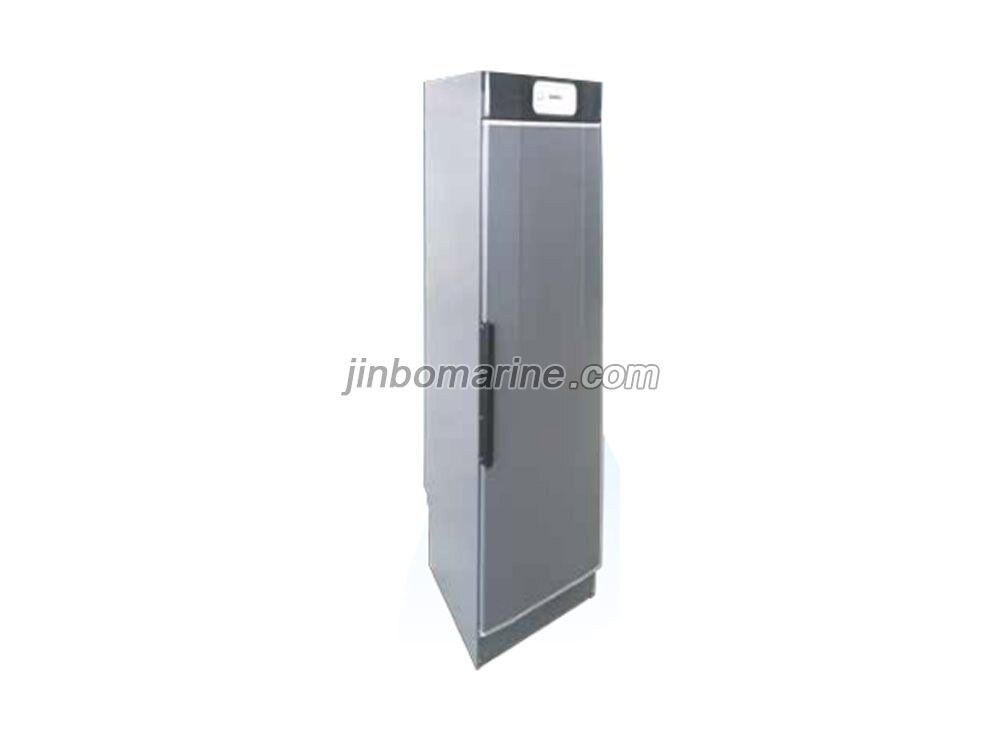

DC4 Marine Drying Wardrobe

DC4 Marine Drying Wardrobe 1. Flexible internal structure, you can slide the hanging rod forward to hang clothes; you can also slide the hanging rod down to make more space 2. Easy to install; the exhaust pipe is ...

ISO9001 Supplier Class Certificate Export Supply
DC4 Marine Drying Wardrobe

Key Highlights

Category
Marine Kitchen Galley
Standard
EN
Material
SS
Weight / Size
Overheat protection DC4 Marine Drying Wardrobe Drawing DC4 Marine Drying...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Kitchen Galley
Model / SKU
DC4-Marine-Drying-Wardrobe
Standard
EN
Material
SS
Weight / Size
Overheat protection DC4 Marine Drying Wardrobe Drawing DC4 Marine Drying Wardrobe Parameters Model DC4 DC8 DC16 Volume(L) 4kg 8kg 16kg Voltage 220V-1PH-50Hz/60Hz 380/415V-3PH-50Hz    440/480V-3PH-60Hz Power(kw) 1.5 6.3 9.45 Size(mm) 595x605x1940 1200x640x1870 1800x800x1955 Weight(kg) 61 145 235
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

DC4 Marine Drying Wardrobe

1. Flexible internal structure, you can slide the hanging rod forward to hang clothes; you can also slide the hanging rod down to make more space
2. Easy to install; the exhaust pipe is connected to the ventilation system to exhaust the humid air outside
3. All electrical components are installed on the top of the machine for easy maintenance
4. The suspension system can be pulled out
5. Can set 3 kinds of temperature: high temperature, normal temperature, low temperature
6. High efficiency and energy saving
7. Overheat protection

DC4 Marine Drying Wardrobe Drawing

DC4 Marine Drying Wardrobe Parameters

Model DC4 DC8 DC16
Volume(L) 4kg 8kg 16kg
Voltage 220V-1PH-50Hz/60Hz
380/415V-3PH-50Hz 440/480V-3PH-60Hz
Power(kw) 1.5 6.3 9.45
Size(mm) 595x605x1940 1200x640x1870 1800x800x1955
Weight(kg) 61 145 235
