Marine Electrical Instrument

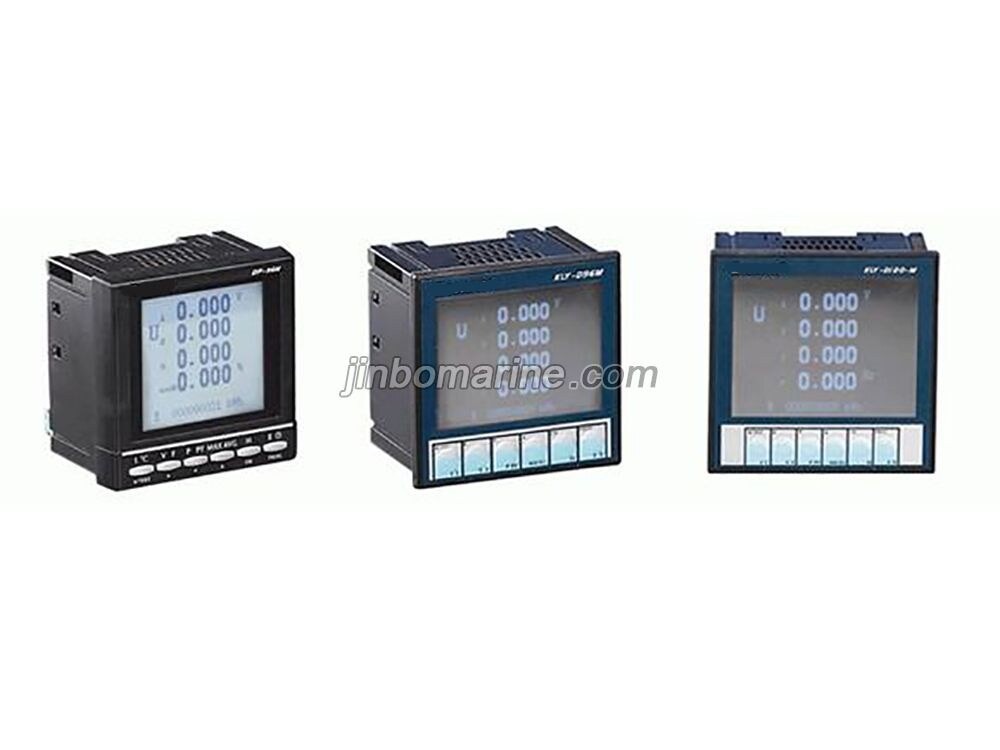

Description: Digital Intelligent Power Meter are multifunction meter with alarm output,analogue output and digital communication. They are widely applied in power suppying and distributing system. ...
Digital Intelligent Power Meter offer:alarm output, analogue output and communication output.(one or several outputs are available up on request)
Communication output:RS485 communication interface(bus) adopts MODBUS-RTU communication protocol. All the obtained data and parameters can be read from the position machine via RS-485 interface. Comply with the national standard GB/T22264-2008.
| Product description | Type | Measurement range | Auxiliary power | Accuracy | Dimension(mm) | Display digits |
| Digital intelligent power meter | D96-M1 | Voltage 500V,current 20A,active,reactive,apparaent power,power factor,frequency,active,reactive,apparent electric power | AC100V-400V/DC120V-350V DC24V | I:0.2 U:0.2 PF:0.5 F:0.1 EP:0.5 EP:2.0 ES:1.0 | 96(H)x96(W)x82.6(D) 92(H)x92(W) | 5 |
| D120-M1 | 120(H)x120(W)x82.6(D) 113(H)x113(W) | |||||
| D144-M1 | 144(H)x144(W)x82.6(D) 138(H)x138(W) | |||||
| Digital intelligent power meter | D96-M2 | 96(H)x96(W)x82.6(D) 92(H)x92(W) | 5 | |||
| D120-M2 | 120(H)x120(W)x82.6(D) 113(H)x113(W) | |||||
| D144-M2 | 144(H)x144(W)x82.6(D) 138(H)x138(W) |
