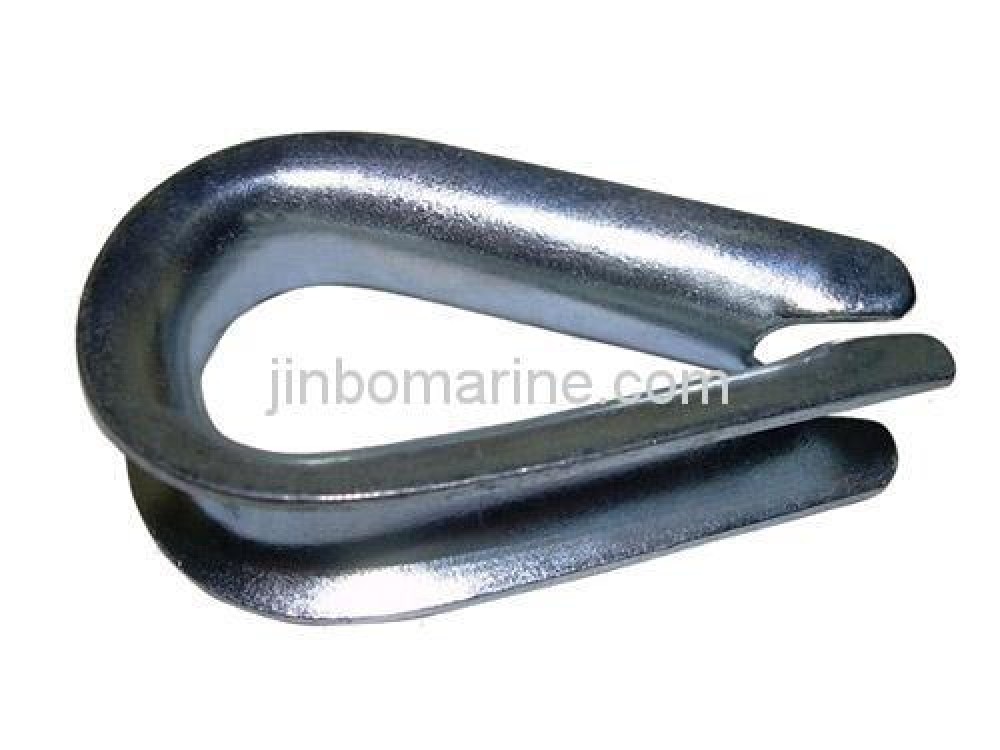

DIN6899B Thimble

DIN6899B Thimble Material: Q235 Size: 1/8" to 1 1/4" Used for wire rope or mooring rope. Size Table Diameter Rope(mm) Groove ...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Rope Thimbles
Standard
DIN
Material
DIN6899B Thimble Material:
Weight / Size
Q235 Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

DIN6899B Thimble

Material: Q235

Size: 1/8" to 1 1/4"

Used for wire rope or mooring rope.

Size Table

Diameter Rope(mm)	Groove Width a(mm)	Overall Length B(mm)	Inside Length I(mm)	Inside Width C(mm)	Back Thickness s(mm)	Approx.weight per 100 Pcs.(kg)
2.5	3	22	19	12	1.6	0.5
3.5	4	26	21	13	1.6	0.8
4	5	32	23	14	1.9	1
5	6	38	25	16	2.4	1.6
6	7	44	28	18	2.4	1.9
7	8	51	32	20	2.8	3
9	10	57	38	24	3.1	4.7
11	12	64	45	28	3.3	6.8
13	13	70	48	30	3.3	8
13	14	76	51	32	3.7	10
15	16	83	58	36	3.8	14.5
16	17	89	61	38	4.7	18
17	18	95	64	40	4.7	20
18	20	102	72	45	5.7	29
20	22	114	80	50	5.7	32
22	24	127	90	56	6.5	47
24	26	140	99	62	6.8	59
26	28	152	112	70	8	80
28	30	165	120	75	8	110
30	32	178	128	80	8	123
