Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Tunnel Thrusters

Electrical Tunnel Thruster

Tunnel thruster is installed on the bow or stern and improve the maneuvering when ship harbor and low-speed situation, emergency steering and under the zero or low speed dynamic positioning thrust is installed on the bow...

ISO9001 Supplier Class Certificate Export Supply

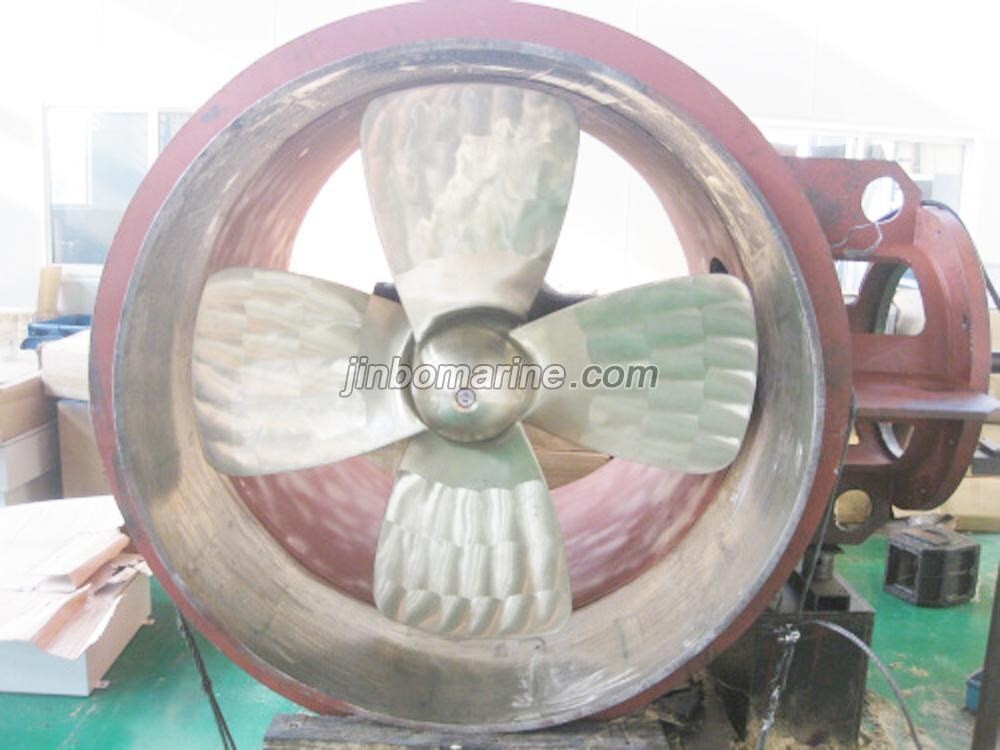

Electrical Tunnel Thruster

Key Highlights

Category
Tunnel Thrusters
Standard
EN
Material
Steel, Cu
Weight / Size
Thrust(KN) 9.5 7.9 17.5 14.5 28 28 42 42 63 51 72 72 125 110 183 155 Sta...
Certificate
ABS, CCS, BV,DNV,CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Tunnel Thrusters
Model / SKU
Electrical-Tunnel-Thruster
Standard
EN
Material
Steel, Cu
Weight / Size
Thrust(KN) 9.5 7.9 17.5 14.5 28 28 42 42 63 51 72 72 125 110 183 155 Standard Inner Dia(mm) 1000 1000 1000 1000 1000 1000 1500 1500 1500 1500 1500 1500 2000 2000 2500 2500 Tunnel thicknessmm 12 12 12 12 15 15 20 20 20 20 20 20 20 20 20 20 Propeller Dia.(mm) 500 500 630 630 800 800 1000/1100 1000/1100 1300 1300 1500 1500 1750 1750 2100 2100 Weight(kgs) 300 300 430 430 730 730 1450 1450 1510 1510 2450 2450 2680 2680 3200 3200 Product Installation
Certificate
ABS, CCS, BV,DNV,CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Electrical Tunnel Thruster:

Tunnel thruster is installed on the bow or stern and improve the maneuvering when ship harbor and low-speed situation, emergency steering and under the zero or low speed dynamic positioning thrust is installed on the bow or stern purpose is to improve the ship into the harbor, low-speed maneuvering, emergency steering and the dynamic positioning under the zero or low speed

Tunnel thruster to improve docking, slow speed maneuvering, emergency steering and the dynamic positioning under the zero or low speed, which installed in the bow or stern of ship.

For more, please contact us at sales@jinbomarine.com for more details or inquiry.

Product Specification

Input Speed (rpm) 1470 1170 1470 1170 1470 1170 1470 1170 1470 1170 1770 1470 1470 1170 1170 970
Frequncy(Hz) 50 60 50 60 50 60 50 60 50 60 60 50 50 60 60 50
Input Power Max.(kw) 63/86 50/68 125/170 100/136 200/272 200/272 280/380 280/380 420/570 336/457 550/748 550/748 900/1224 725/986 1250/1700 1000/1360
Max. Thrust(KN) 9.5 7.9 17.5 14.5 28 28 42 42 63 51 72 72 125 110 183 155
Standard Inner Dia(mm) 1000 1000 1000 1000 1000 1000 1500 1500 1500 1500 1500 1500 2000 2000 2500 2500
Tunnel thicknessmm 12 12 12 12 15 15 20 20 20 20 20 20 20 20 20 20
Propeller Dia.(mm) 500 500 630 630 800 800 1000/1100 1000/1100 1300 1300 1500 1500 1750 1750 2100 2100
Weight(kgs) 300 300 430 430 730 730 1450 1450 1510 1510 2450 2450 2680 2680 3200 3200

Product Installation
