Marine & Offshore Equipment Datasheet
Product Datasheet

Fire Monitor

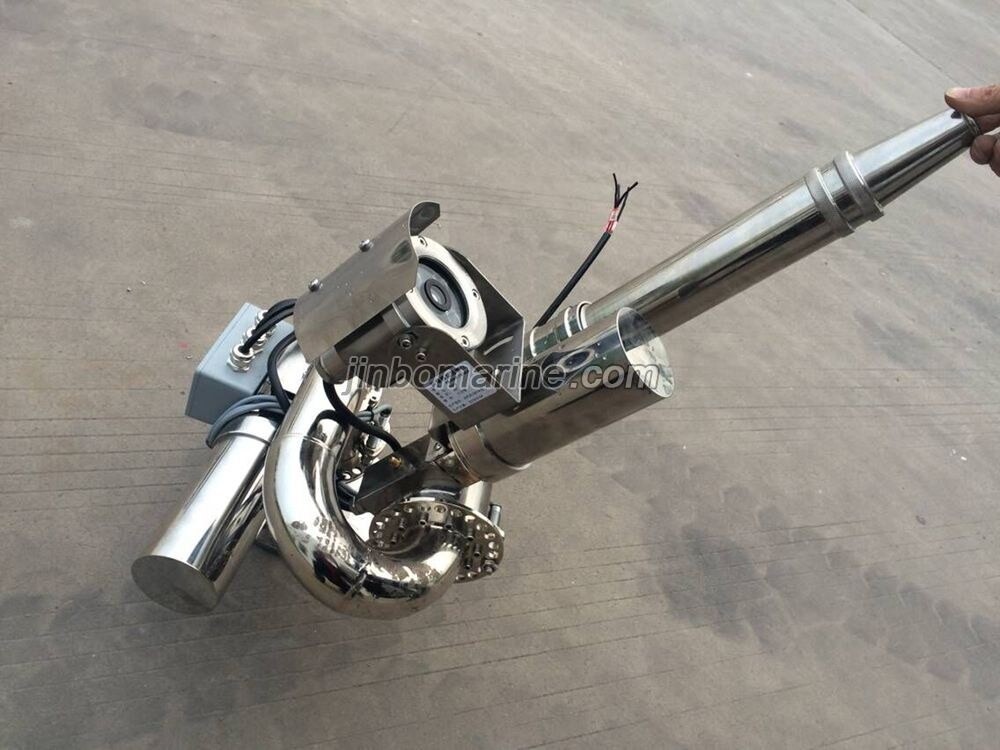

Electrical Water Fire Monitor (Riot Control) 20L/S

Type : JBPSKD20-riot control Flow Range: 20L/S (320GPM), Working Pressure: 6 bar~ 16 bar Max Reach @ Max Flow: 65M Max. Range of motion: +/-90°Vert , 350°Rot Turning speed：18 degrees/sec Material (body)：304L Stainl...

ISO9001 Supplier Class Certificate Export Supply
Electrical Water Fire Monitor (Riot Control) 20L/S

Key Highlights

Category
Fire Monitor
Standard
EN
Material
+/-90°Vert , 350°Rot Turning speed：18 degrees/sec Material (body)：304L S...
Weight / Size
+/-90°Vert , 350°Rot Turning speed：18 degrees/sec Material (body)：304L S...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Fire Monitor
Model / SKU
Electrical-Water-Fire-Monitor-Riot-Control-20L-S
Standard
EN
Material
+/-90°Vert , 350°Rot Turning speed：18 degrees/sec Material (body)：304L Stainless Steel, 316L Stainless Steel is also available Material (Gear)：Bronze Material (nozzle)：stainless steel power supply：12/24VDC or 100-230VAC Power Consumption normal/Max：50W/150W Weight incl.
Weight / Size
+/-90°Vert , 350°Rot Turning speed：18 degrees/sec Material (body)：304L Stainless Steel, 316L Stainless Steel is also available Material (Gear)：Bronze Material (nozzle)：stainless steel power supply：12/24VDC or 100-230VAC Power Consumption normal/Max：50W/150W Weight incl.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Electrical Water Fire Monitor (Riot Control) 20L/S:

Type : JBPSKD20-riot control
Flow Range: 20L/S (320GPM),
Working Pressure: 6 bar~ 16 bar
Max Reach @ Max Flow: 65M
Max. Range of motion: +/-90°Vert , 350°Rot
Turning speed：18 degrees/sec
Material (body)：304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear)：Bronze
Material (nozzle)：stainless steel
power supply：12/24VDC or 100-230VAC
Power Consumption normal/Max：50W/150W
Weight incl. nozzle：appox 20kg
Cable Length Monitor- CPU：5m
Cable Length Joystick-CPU：5m standard/ other length available
Pump requirement for minimum performance：20L/S@ 6 bar
Pipe dimensions for installation: 2-2.5 Inch
Monitor Inlet：2.5” male BSP or DN65 flange
Monitor Outlet：2 inch (50mm)
Water way size: 2 inch

PACKAGE: SS MONITOR, NOZZLE, CAMERAL, INFARED LAMP, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL (OPTIONAL),
