US Type Eye Grab Hooks H323
Eye Grab Hooks H323
Drop Forged Eye Grab Hooks H323
Galv Eye Grab Hooks H323
Lifting Eye Grab Hooks H323
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Hook

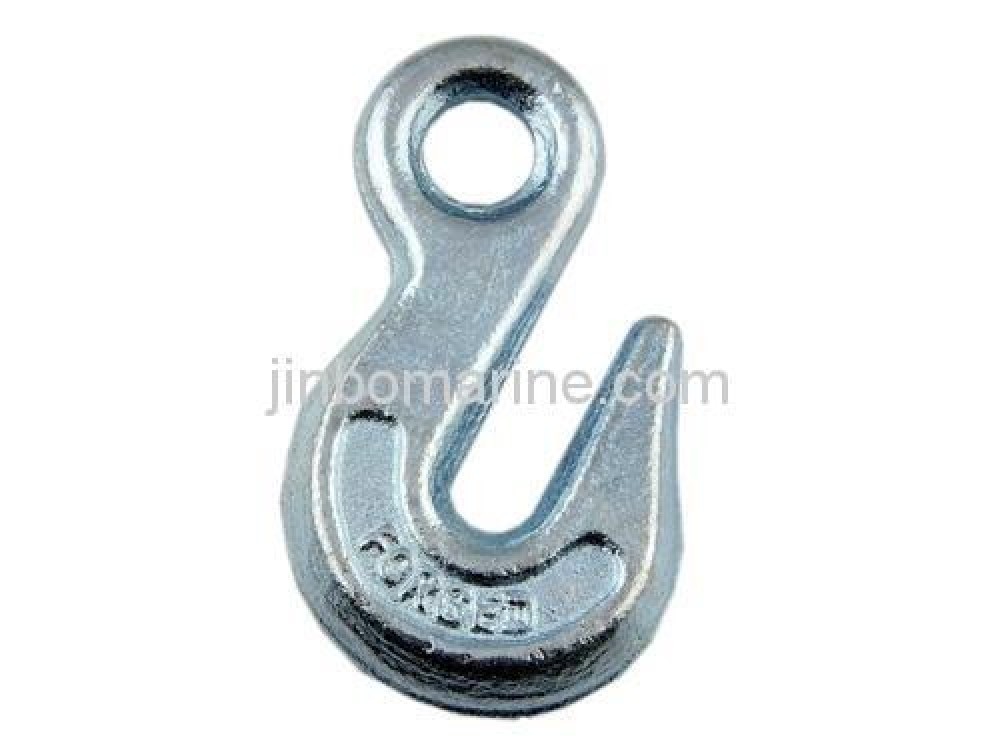

Eye Grab Hooks H323
Similar Name US Type Eye Grab Hooks H323 Eye Grab Hooks H323 Drop Forged Eye Grab Hooks H323 Galv Eye Grab Hooks H323 Lifting Eye Grab Hooks H323 Main Specification Forgin...
ISO9001 Supplier
Class Certificate
Export Supply
-1_1000x750.jpg)
Key Highlights
Category
Hook
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Eye Grab Hooks H323 Eye Grab Hooks H323 Drop Forged...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Hook
Model / SKU
Eye-Grab-Hooks-H323
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Eye Grab Hooks H323 Eye Grab Hooks H323 Drop Forged Eye Grab Hooks H323 Galv Eye Grab Hooks H323 Lifting Eye Grab Hooks H323 Main Specification Forging Technology 45# Steel Galvanized, H.D.G, Paintng Size Table Size of Chain Working Load Limit DIMENSIONS(in) Weight (lbs) H-323 A-323 B E R 1/4" 2,600 3,600 1/2 11/32 1-31/32 0.28 5/16" 3,900 5,400 9/16 7/16 2002-1-4 0.45 3/8" 5,400 7,500 21/32 12 2002-9-16 0.79 1/2" 9,200 12,750 7/8 21/32 2003-3-8 1.75 5/8" 12,750 19,000 2001-1-16 25/32 4-3/32 3.25 3/4" 18,500 27,000 2001-3-8 15/16 5-5/32 5.94
Surface
Galvanized
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
Forging Technology
45# Steel
Galvanized, H.D.G, Paintng
Size Table
| Size of Chain | Working Load Limit | DIMENSIONS(in) | Weight (lbs) | |||
| H-323 | A-323 | B | E | R | ||
| 1/4" | 2,600 | 3,600 | 1/2 | 11/32 | 1-31/32 | 0.28 |
| 5/16" | 3,900 | 5,400 | 9/16 | 7/16 | 2002-1-4 | 0.45 |
| 3/8" | 5,400 | 7,500 | 21/32 | 12 | 2002-9-16 | 0.79 |
| 1/2" | 9,200 | 12,750 | 7/8 | 21/32 | 2003-3-8 | 1.75 |
| 5/8" | 12,750 | 19,000 | 2001-1-16 | 25/32 | 4-3/32 | 3.25 |
| 3/4" | 18,500 | 27,000 | 2001-3-8 | 15/16 | 5-5/32 | 5.94 |
