Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Hook

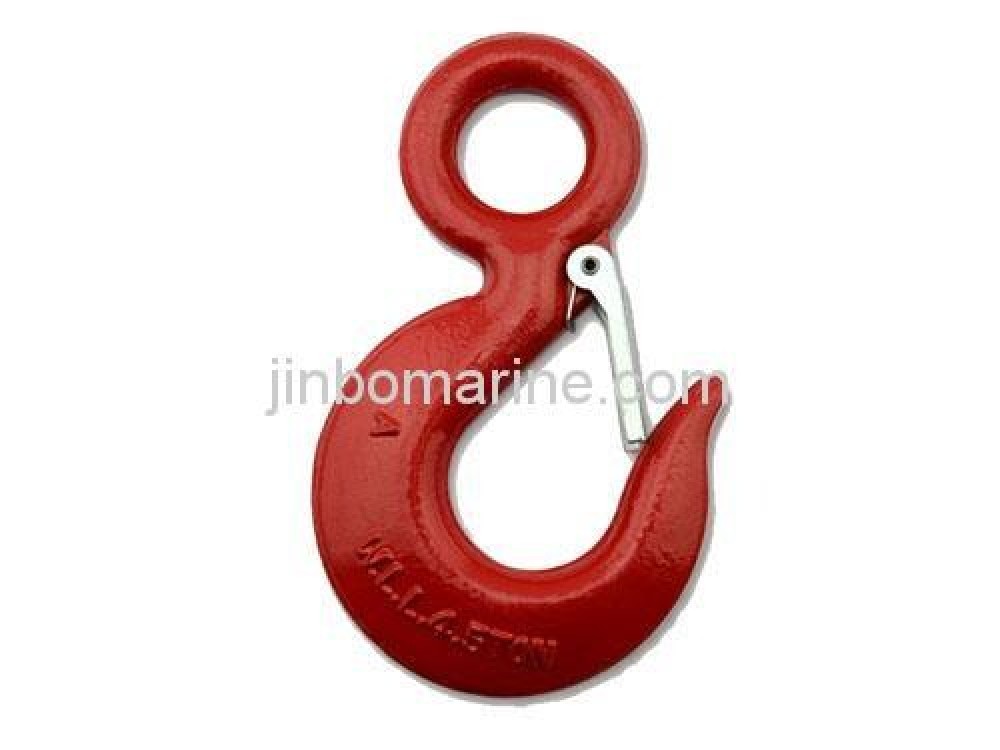

Eye Hooks with Latch S320
Similar Name Latch hook Safety hook Lifting hook Eye hook Main Specification Compromise of Hook and Latch Forging Technology 45# Steel Galvanized, H.D.G, Paint...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Hook
Standard
EN
Material
45# Steel
Weight / Size
Similar Name Latch hook Safety hook Lifting hook Eye hook Main Specifica...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Hook
Model / SKU
Eye-Hooks-with-Latch-S320
Standard
EN
Material
45# Steel
Weight / Size
Similar Name Latch hook Safety hook Lifting hook Eye hook Main Specification Compromise of Hook and Latch Forging Technology 45# Steel Galvanized, H.D.G, Paintng Size Table WLL(metric) DIMENSIONS(in) Weight (lbs) 320C 320A A B D E G H K L R T O 3/4 1 1.47 0.75 2.88 0.94 0.75 0.81 0.56 4.34 3.22 0.81 0.88 0.55 1 1 1/2 1.75 0.91 3.19 1.03 0.84 0.94 0.62 4.94 3.66 0.81 0.97 0.75 1 1/2 2 2.03 1.12 3.62 1.06 1 1.16 0.75 5.56 4.09 0.84 1 1.25 2 3 2.41 1.25 4.09 1.22 1.12 1.31 0.84 6.4 4.69 1.19 1.12 1.7 3 4 1/2 2.94 1.56 4.94 1.5 1.44 1.62 1.12 7.91 5.75 1.38 1.34 3.6 5 7 3.81 2 6.5 1.88 1.81 2.06 1.38 10.09 7.38 1.78 1.69 7.08 7 1/2 11 4.69 2.44 7.56 2.25 2.25 2.62 1.62 12.44 9.06 2.12 2.06 13
Surface
Galvanized
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
Compromise of Hook and Latch
Forging Technology
45# Steel
Galvanized, H.D.G, Paintng
Size Table
| WLL(metric) | DIMENSIONS(in) | Weight (lbs) | |||||||||||
| 320C | 320A | A | B | D | E | G | H | K | L | R | T | O | |
| 3/4 | 1 | 1.47 | 0.75 | 2.88 | 0.94 | 0.75 | 0.81 | 0.56 | 4.34 | 3.22 | 0.81 | 0.88 | 0.55 |
| 1 | 1 1/2 | 1.75 | 0.91 | 3.19 | 1.03 | 0.84 | 0.94 | 0.62 | 4.94 | 3.66 | 0.81 | 0.97 | 0.75 |
| 1 1/2 | 2 | 2.03 | 1.12 | 3.62 | 1.06 | 1 | 1.16 | 0.75 | 5.56 | 4.09 | 0.84 | 1 | 1.25 |
| 2 | 3 | 2.41 | 1.25 | 4.09 | 1.22 | 1.12 | 1.31 | 0.84 | 6.4 | 4.69 | 1.19 | 1.12 | 1.7 |
| 3 | 4 1/2 | 2.94 | 1.56 | 4.94 | 1.5 | 1.44 | 1.62 | 1.12 | 7.91 | 5.75 | 1.38 | 1.34 | 3.6 |
| 5 | 7 | 3.81 | 2 | 6.5 | 1.88 | 1.81 | 2.06 | 1.38 | 10.09 | 7.38 | 1.78 | 1.69 | 7.08 |
| 7 1/2 | 11 | 4.69 | 2.44 | 7.56 | 2.25 | 2.25 | 2.62 | 1.62 | 12.44 | 9.06 | 2.12 | 2.06 | 13 |
