US Type Eye Slip Hooks H324
Eye Slip Hooks H324
Drop Forged Eye Slip Hooks H324
Galv Eye Slip Hooks H324
Lifting Eye Slip Hooks H324
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Hook

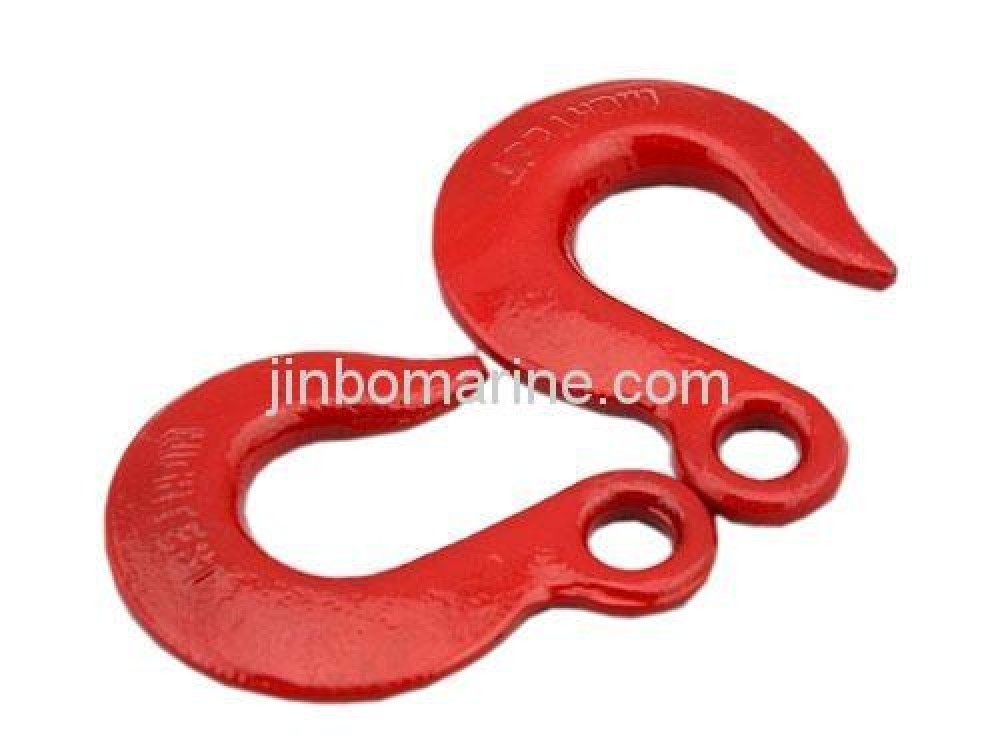

Eye Slip Hooks H324
Similar Name US Type Eye Slip Hooks H324 Eye Slip Hooks H324 Drop Forged Eye Slip Hooks H324 Galv Eye Slip Hooks H324 Lifting Eye Slip Hooks H324 Main Specification ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Hook
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Eye Slip Hooks H324 Eye Slip Hooks H324 Drop Forged...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Hook
Model / SKU
Eye-Slip-Hooks-H324
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Eye Slip Hooks H324 Eye Slip Hooks H324 Drop Forged Eye Slip Hooks H324 Galv Eye Slip Hooks H324 Lifting Eye Slip Hooks H324 Main Specification Forging Technology 45# Steel Size Table Size of Chain Working Load Limit DIMENSIONS(in) Weight (lbs) H-324 A-324 B E R 1/4" 1,950 2750 ’1/2 15/16 2-17/32 0.4 5/16" 2,875 4300 ‘5/8 ’1 1/16 2-29/32 0.7 3/8" 4,000 5250 23/32 ‘1 5/16 ‘3 5/16 1 7/16" 5,000 7000 13/16 ’1 9/16 ’3 7/8 1.56 1/2" 6,500 9000 15/16 1 11/16 4-9/32 2.31 5/8" 9,250 13500 2 2 5-7/32 3.78 3/4" 12,500 19250 ’2 1/8 ‘2 1/8 5-25/32 6.56
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
Forging Technology
45# Steel
Size Table
| Size of Chain | Working Load Limit | DIMENSIONS(in) | Weight (lbs) | |||
| H-324 | A-324 | B | E | R | ||
| 1/4" | 1,950 | 2750 | ’1/2 | 15/16 | 2-17/32 | 0.4 |
| 5/16" | 2,875 | 4300 | ‘5/8 | ’1 1/16 | 2-29/32 | 0.7 |
| 3/8" | 4,000 | 5250 | 23/32 | ‘1 5/16 | ‘3 5/16 | 1 |
| 7/16" | 5,000 | 7000 | 13/16 | ’1 9/16 | ’3 7/8 | 1.56 |
| 1/2" | 6,500 | 9000 | 15/16 | 1 11/16 | 4-9/32 | 2.31 |
| 5/8" | 9,250 | 13500 | 2 | 2 | 5-7/32 | 3.78 |
| 3/4" | 12,500 | 19250 | ’2 1/8 | ‘2 1/8 | 5-25/32 | 6.56 |
