Marine Air Horn

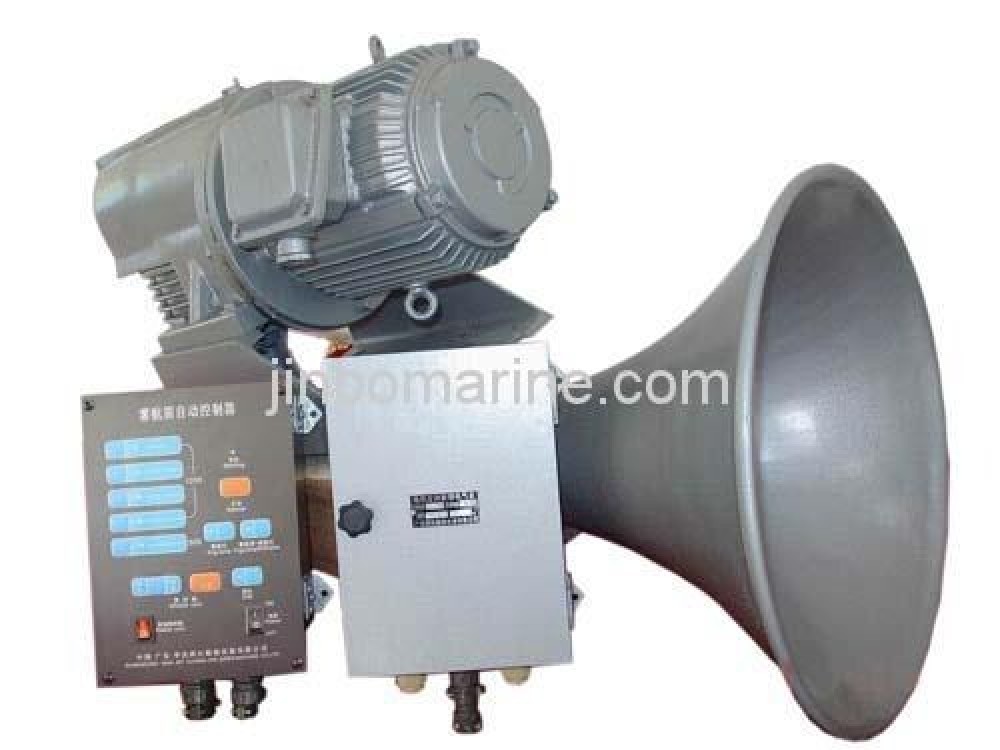

HSD161 Marine Piston Electric Horn

Main Specification: (1) Surrounded temperature:25℃～55℃ (2) Relative humidity: 92%～98% (3)When vibration frequency is 2～13.2HZ, displacement amplitude is±1mm.when vibration frequency is +13.2～...

ISO9001 Supplier Class Certificate Export Supply
HSD161 Marine Piston Electric Horn

Key Highlights

Category
Marine Air Horn
Standard
EN
Weight / Size
(5) Power loss of the control:15 W (6)Output contactor capacity of the c...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Air Horn
Model / SKU
HSD161-Marine-Piston-Electric-Horn
Standard
EN
Weight / Size
(5) Power loss of the control:15 W (6)Output contactor capacity of the control:5A/250V (ultimate capacity:10A/AC250V) (7) Outer size of the control:
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

Main Specification:

(1) Surrounded temperature:25℃～55℃

(2) Relative humidity: 92%～98%

(3)When vibration frequency is 2～13.2HZ, displacement amplitude is±1mm.when vibration frequency is +13.2～80HZ, acceleration amplitude is±7%.

(4) The voltage of the control is within +6%～-10% of the rated voltage. It can work safely when the frequency change is within±5% of the rated frequency.

(5) Power loss of the control:15 W

(6)Output contactor capacity of the control:5A/250V (ultimate capacity:10A/AC250V)

(7) Outer size of the control: length x width x height = 216×165×100 mm

(8) Weight of the control:3 Kg

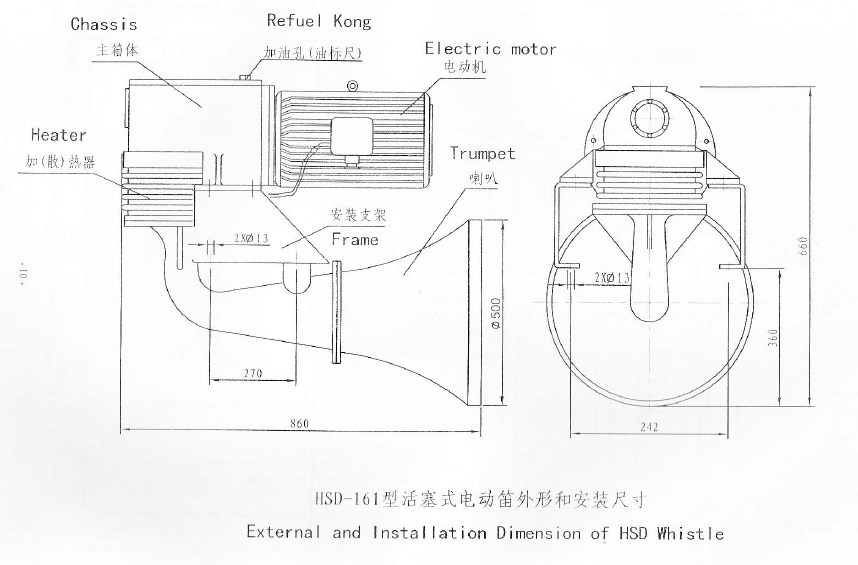

HSD161 Horn Install Dimension
