Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Explosion-proof Lights Series

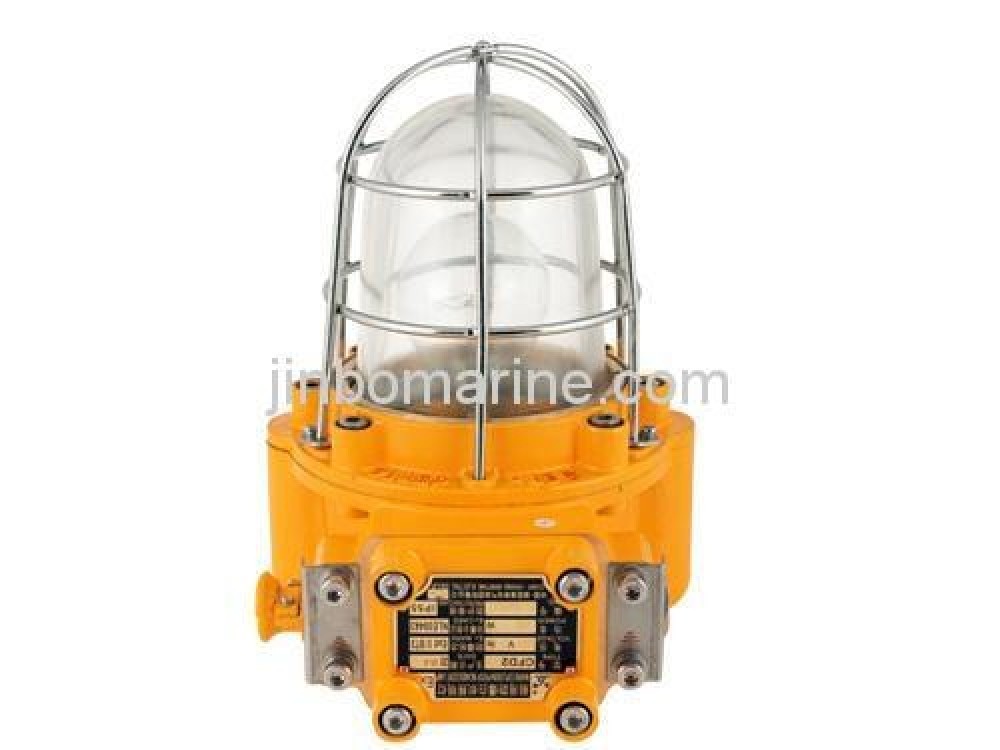

Incandescent Explosion-Proof Light CFD2 CFD3

The shell is made of good quality brass, glass lamp-shade and brass guard.

ISO9001 Supplier Class Certificate Export Supply
Incandescent Explosion-Proof Light CFD2 CFD3

Key Highlights

Category
Marine Explosion-proof Lights Series
Standard
EN
Material
Brass
Weight / Size
Main Specification Type CFD2 CFD3 CFD3-1 Explosion-proof Mark Exd II B T...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Explosion-proof Lights Series
Model / SKU
Incandescent-Explosion-Proof-Light-CFD2-CFD3
Standard
EN
Material
Brass
Weight / Size
Main Specification Type CFD2 CFD3 CFD3-1 Explosion-proof Mark Exd II B T3 Exd II B T4 Exd II B T4 Voltage 220V 24V/110V/220V 24V/110V/220V Power 200W 25W/40W/60W/100W 25W/40W/60W/100W Illuminant  Incandescent Lamp Lamp Holder E27 Protection Class IP55 IP55 IP56 Cable Diameter Dia11-13mm Weight 19kg 13.5kg 8.5kg
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Incandescent Explosion-Proof Light CFD2 CFD3:

The shell is made of good quality brass, glass lamp-shade and brass guard.

Main Specification

Type CFD2 CFD3 CFD3-1
Explosion-proof Mark Exd II B T3 Exd II B T4 Exd II B T4
Voltage 220V 24V/110V/220V 24V/110V/220V
Power 200W 25W/40W/60W/100W 25W/40W/60W/100W
Illuminant Incandescent Lamp
Lamp Holder E27
Protection Class IP55 IP55 IP56
Cable Diameter Dia11-13mm
Weight 19kg 13.5kg 8.5kg
