Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Rudder Stock Seal

Lower Rudder Carrier CB*3146

Product Advantage This type of lower rudder bearer is used together with CB*3145 upper rudder bearer. Model 60 70 80 ...

ISO9001 Supplier Class Certificate Export Supply

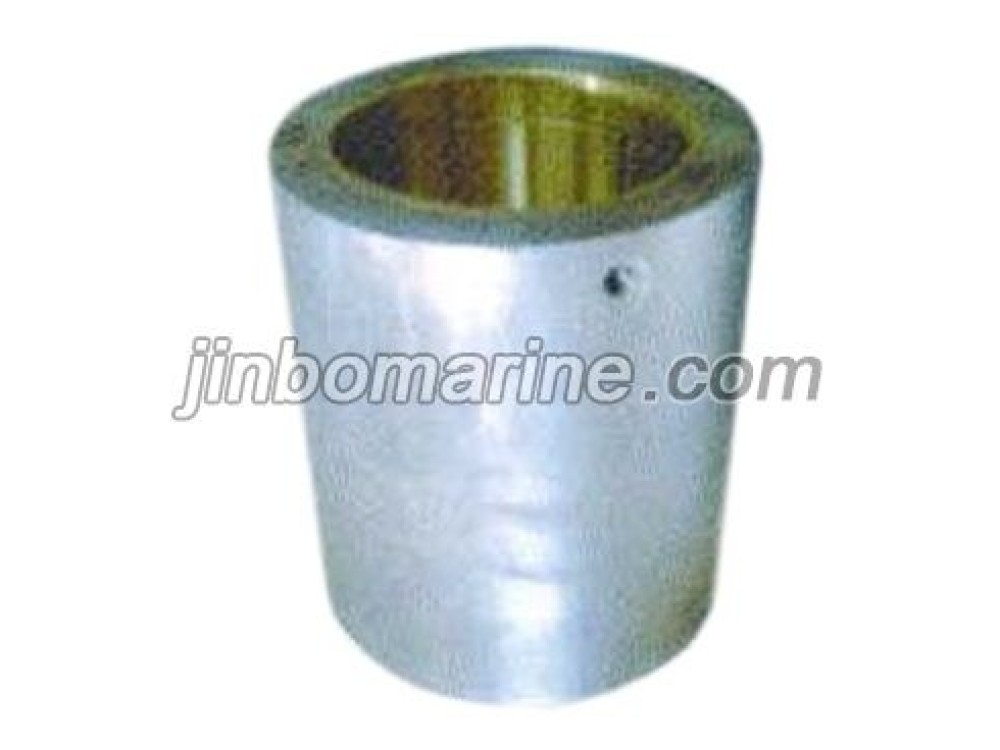

Lower Rudder Carrier CB*3146

Key Highlights

Category
Rudder Stock Seal
Standard
CB
Weight / Size
Model 60 70 80 90 100 110 120 130 140 150 160 180 200 220 240 260 280 30...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Rudder Stock Seal
Model / SKU
Lower-Rudder-Carrier-CB-3146
Standard
CB
Weight / Size
Model 60 70 80 90 100 110 120 130 140 150 160 180 200 220 240 260 280 300 320 Dimensions D 60 70 80 90 100 110 120 130 140 150 160 180 200 220 240 260 280 300 320 A 122 132 142 160 180 190 200 224 234 244 254 274 308 328 348 368 402 422 442 (mm) H 120 135 150 165 180 195 210 225 240 255 270 300 330 360 390 420 450 480 510 dN 10 10 10 10 10 15 15 15 15 15 15 15 15 25 20 20 20 20 20 Weight (kg) 8.8 10.5 14.8 19.5 24.9 28.9 35.4 42 49.4 57.3 65.8 87.2 112.6 137.2 165.5 187.7 233.7 264 300.5
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Product Advantage

This type of lower rudder bearer is used together with CB*3145 upper rudder bearer.

Model 60 70 80 90 100 110 120 130 140 150 160 180 200 220 240 260 280 300 320
Dimensions D 60 70 80 90 100 110 120 130 140 150 160 180 200 220 240 260 280 300 320
A 122 132 142 160 180 190 200 224 234 244 254 274 308 328 348 368 402 422 442
(mm) H 120 135 150 165 180 195 210 225 240 255 270 300 330 360 390 420 450 480 510
dN 10 10 10 10 10 15 15 15 15 15 15 15 15 25 20 20 20 20 20
Weight (kg) 8.8 10.5 14.8 19.5 24.9 28.9 35.4 42 49.4 57.3 65.8 87.2 112.6 137.2 165.5 187.7 233.7 264 300.5
