| SIZE | A mm | B mm | C mm | D mm | E mm | F mm | SWL kgs | BL kgs |
| 50 | 45 | 115 | 50 | 19 | 28 | 14 | 750 | 3000 |
| 75 | 70 | 175 | 75 | 24 | 40 | 14 | 1125 | 4500 |
| 100 | 95 | 200 | 100 | 24 | 40 | 17 | 1900 | 7600 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Rope Thimbles

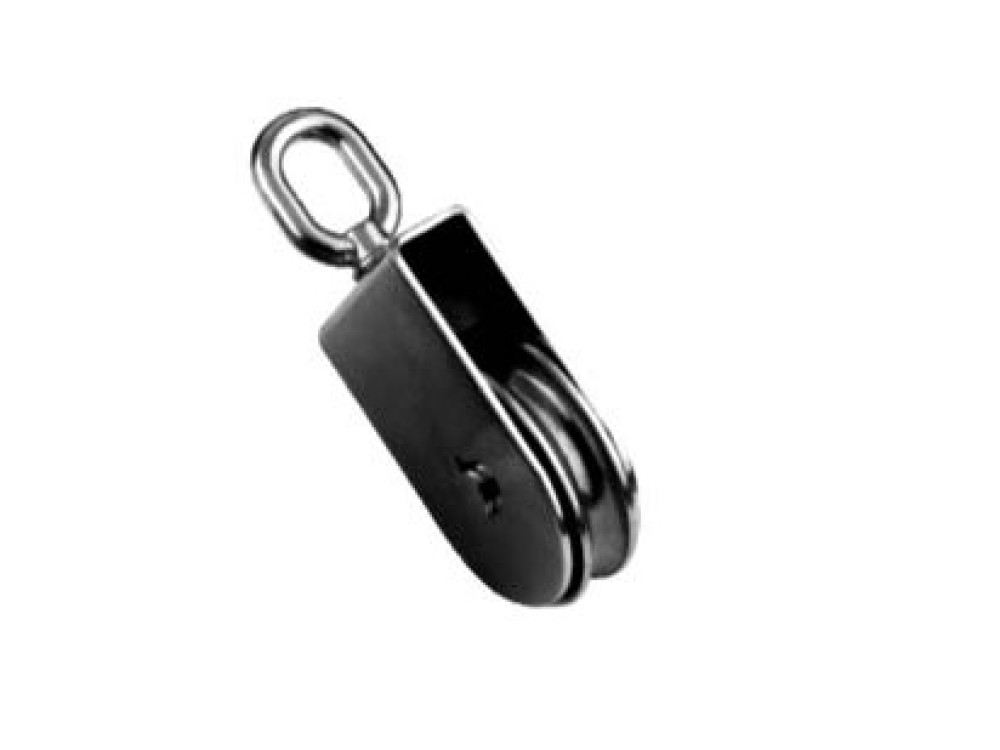

Mame Swlvel Bolck (Stainless Sheave With Brass Bushing), CSSB0101
SIZE A mm B mm C mm D mm E mm F mm SWL kgs BL kgs 50 ...
ISO9001 Supplier
Class Certificate
Export Supply
,-CSSB0101_1000x750.jpg)
Key Highlights
Category
Rope Thimbles
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm D mm E mm F mm SWL kgs BL kgs 50 45 115 50 19 28 14 ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Rope Thimbles
Model / SKU
MAME-SWLVEL-BOLCK-STAINLESS-SHEAVE-WITH-BRASS-BUSHING-CSSB0101
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm D mm E mm F mm SWL kgs BL kgs 50 45 115 50 19 28 14 750 3000 75 70 175 75 24 40 14 1125 4500 100 95 200 100 24 40 17 1900 7600
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
