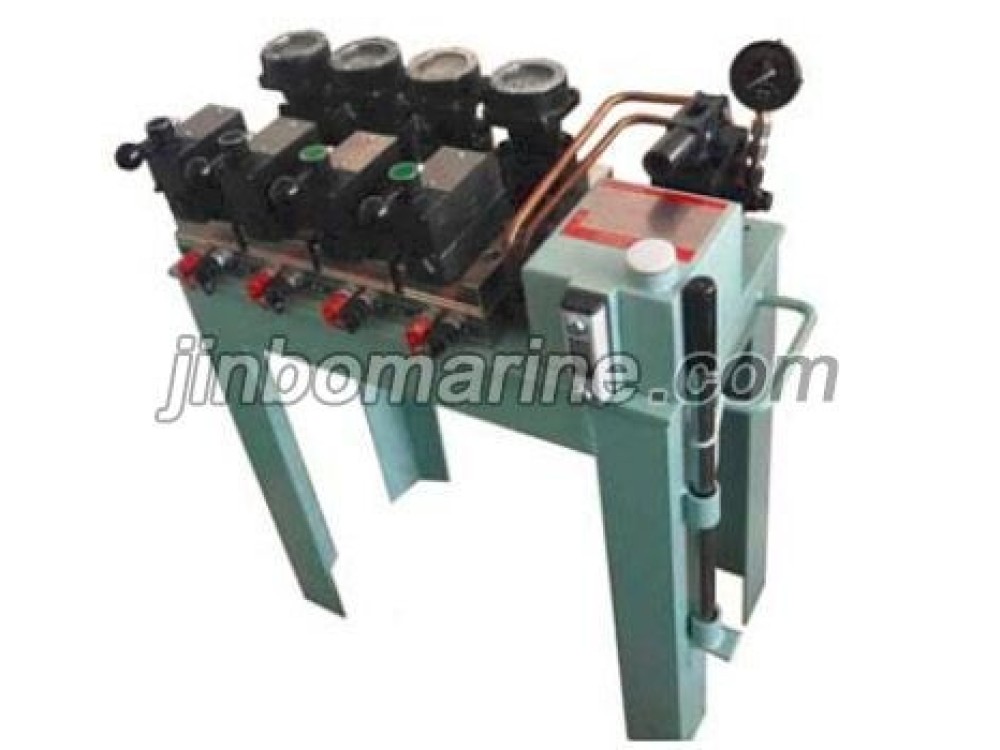

Manual Hydraulic Valve Control Stand

MHCS manual hydraulic valve remote control system is a hydraulic control valve device to control
Valve by manual in distance, no need extra power. And, it can be used in any occasions, especially
Suitable for hazardous area.
Each control channel is with manual directional valve and flow meter. When located the manual
Direction valve at open, the mini pump supply hydraulic power to hydraulic actuator in order to make
The valve is opened. Meanwhile, the flow meter accurately indicates the valve position, compared with
Volumetric principle

Oil tank capacitor: 2.2 L
Pump discharge: 12mL /stroke, 40mL/stroke
Working pressure: 6.3-16MPa
Oil type: HM32，HM46
Ambient temperature: -25℃ - 65℃
Use the oil temperature: -15℃ - 60℃
Protection class: IP65 (Deck box), IP54 (Standard)
Control channel: 2, 3,4,5,6 or more
Pipeline diameter: φ10 mm
Emergency operation: Quick connector
Painting: Client made
