CB Marine Air Pipe Head

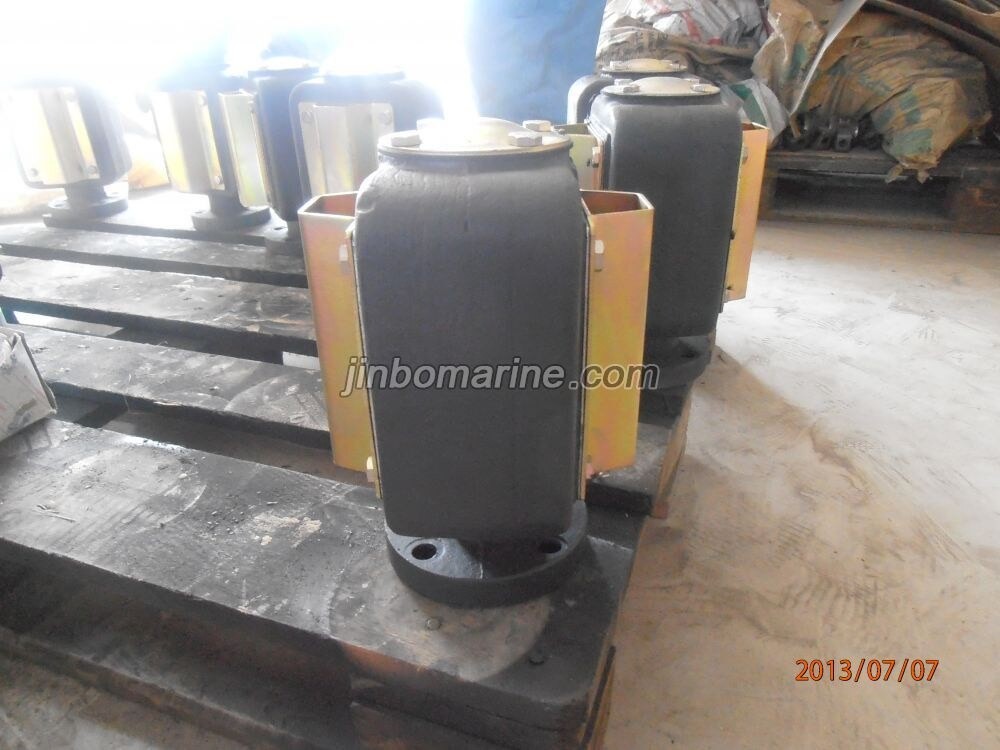

Marine Air Pipe Head with Float Ball CB/T3594-94 Type FS

Marine Air Pipe Head or can be called as marine air vent head, air pipe joint. It is used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,...

ISO9001 Supplier Class Certificate Export Supply
Marine Air Pipe Head with Float Ball CB/T3594-94 Type FS

Key Highlights

Category
CB Marine Air Pipe Head
Standard
DIN
Material
Cast Iron, Nodular Iron
Weight / Size
CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81 Flange Size as per GB569 ...
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
CB Marine Air Pipe Head
Model / SKU
Marine-Air-Pipe-Head-with-Float-Ball-CB-T3594-94-Type-FS
Standard
DIN
Material
Cast Iron, Nodular Iron
Weight / Size
CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81 Flange Size as per GB569 or GB2501 Type Name Size Application A/AS Mushroom Air Pipe Head 50--250 on the air pipe top of oil &water tank B/BS Gooseneck Air Pipe Head C/CS Sounding & Ventilation Air Pipe Head 50--100 D/DS Disc Float Type Air Pipe Head for Oil Tank 50-450 on the air pipe top of oil tank E/ES Disc Float Type Air Pipe Head for Water Tank on the air pipe top of water tank FS Ball Float Type Air Pipe Head for oil&water Tank on the air pipe top of oil &water tank Main Material:
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Air Pipe Head with Float Ball CB/T3594-94 Type FS:

Marine Air Pipe Head or can be called as marine air vent head, air pipe joint. It is used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,D/DS,E/ES,FS.

Standard: CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81

Flange Size as per GB569 or GB2501

Type Name Size Application
A/AS Mushroom Air Pipe Head 50--250 on the air pipe top of oil &water tank
B/BS Gooseneck Air Pipe Head
C/CS Sounding & Ventilation Air Pipe Head 50--100
D/DS Disc Float Type Air Pipe Head for Oil Tank 50-450 on the air pipe top of oil tank
E/ES Disc Float Type Air Pipe Head for Water Tank on the air pipe top of water tank
FS Ball Float Type Air Pipe Head for oil&water Tank on the air pipe top of oil &water tank

Main Material:

1-Body: Nodular Cast Iron, Cast Iron

2-Screen Cover: carbon Steel or Stainless Steel

3-Float Ball: Stainless Steel

4-Seal Ring: NBR

Main Size List for FS Type(mm):

nominal
diameter 		structure dimension Thickness
δ 		flange connection dimension float
diameter
s 		weight(kg)
L L1 H D D1 D2 b n d0 Oil tank Water tank
50 125 160 250 7 165 125 102 20 4 18 65 12.50 12.60
65 170 200 285 7 185 145 122 20 4 18 88 19.10 19.20
80 200 225 325 7 200 160 133 20 8 18 105 22.40 22.60
100 245 275 380 8 220 180 158 22 8 18 130 34.10 34.40
125 300 325 440 8 250 210 184 22 8 18 150 49.30 49.80
150 345 370 510 9 285 240 212 24 8 22 190 94.70 95.70
200 450 475 630 9 340 295 268 24 8 22 245 157.00 158.00
250 565 590 750 10 395 350 320 26 12 22 305 222.00 223.00
300 670 700 870 11 445 400 370 26 12 22 345 302.00 304.00
350 780 820 1020 12 505 460 430 26 16 22 450 459.00 461.00
