Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

GB Marine Globe Valve

Marine Bronze Female Thread Globe Valve CB/T309-1999

It is suitable for the pipe system of sea water, fresh water, lubrication oil, and steam not over 250℃.There are two types, Type A is straight, Type B is angle. Design Standard: CB/T309-1999 Nominal Pressure:...

ISO9001 Supplier Class Certificate Export Supply

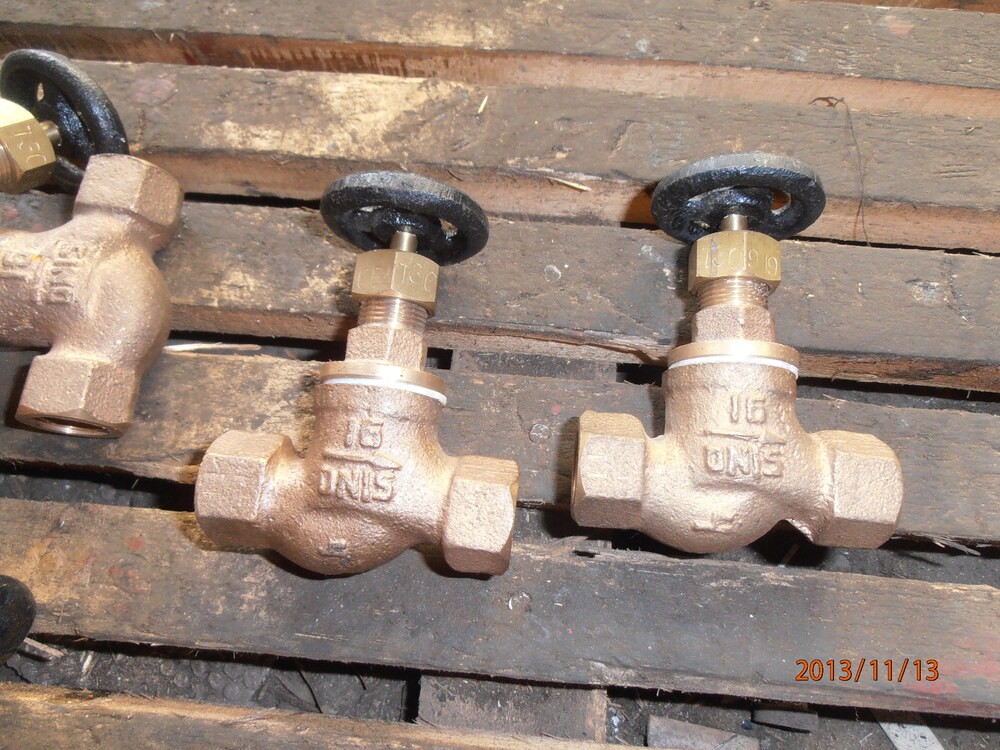

Marine Bronze Female Thread Globe Valve CB/T309-1999

Key Highlights

Category
GB Marine Globe Valve
Standard
GB
Material
Bronze
Weight / Size
GB600 Flange size as per GB569,GB2501 Main Material:
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
GB Marine Globe Valve
Model / SKU
Marine-Bronze-Female-Thread-Globe-Valve-CB-T309-1999
Standard
GB
Material
Bronze
Weight / Size
GB600 Flange size as per GB569,GB2501 Main Material:
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Bronze Female Thread Globe Valve CB/T309-1999:

It is suitable for the pipe system of sea water, fresh water, lubrication oil, and steam not over 250℃.There are two types, Type A is straight, Type B is angle.

Design Standard: CB/T309-1999

Nominal Pressure: 1.6Mpa

Test Standard: GB600

Flange size as per GB569,GB2501

Main Material:

Body-Bronze

Bonnet-Bronze

Disc-Bronze

Stem-Bronze

Main Size List(mm):

nominal
diameter 		Structure Dimension
 thread dimension lift m Weight(kg)
L H H1
Type A Type B Type A Type B D1 S L1 D0 S1 Type A Type B
6 65 - 86 - - G1/4 19 10 50 6 5 0.35 -
10 75 - 88 - - G3/8 22 12 50 6 5 0.44 -
15 84 35 100 125 35 G1/2 27 14 50 6 6 0.56 0.53
20 95 40 112 143 40 G3/4 36 16 65 7 7 0.9 0.91
25 110 45 125 158 45 G1 41 18 80 8 8 1.26 1.26
32 130 54 139 176 54 G1-1/4 50 20 80 8 8 2.02 2.02
40 150 65 155 220 65 G1-1/2 60 22 120 11 14 2.93 2.93
50 180 80 175 283 80 G2 70 24 120 11 15 4.37 3.83
