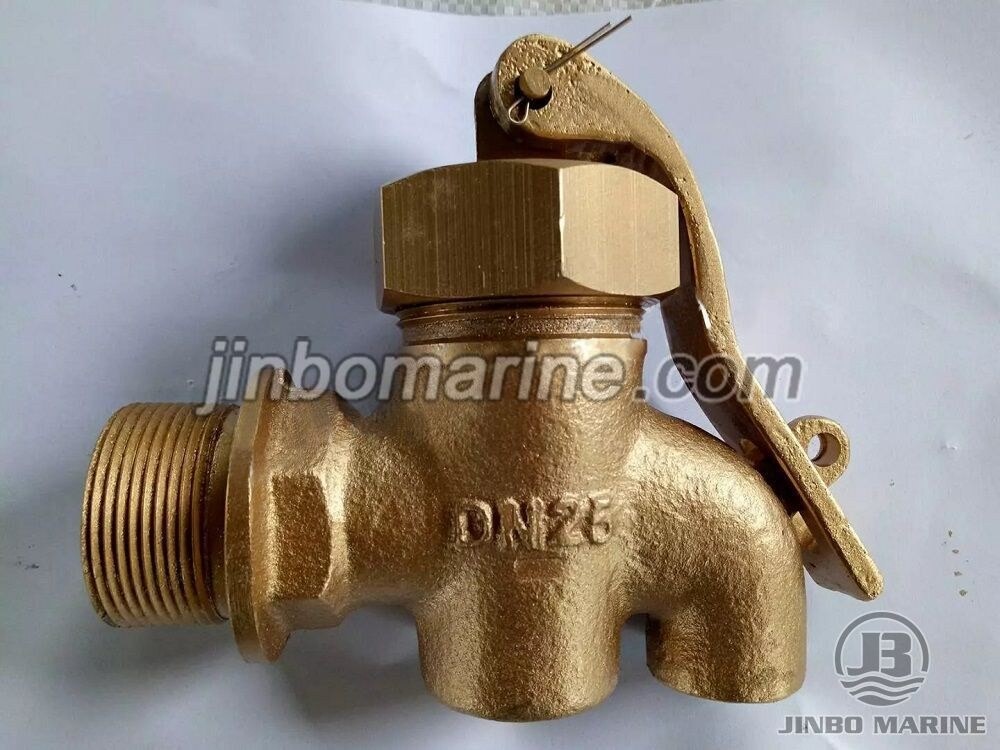

China Marine Bronze Male Thread Drain Cock GB/T599-1996:
Technical Specification:
1. Design & Manufacturing Standard: GB/T599-1996, JIS F7390
2. Test Standard: GB600
| Nominal Pressure (Mpa) | Nominal Size(mm) | Applicable Medium |
| 0.1 | 10,15,20,25 | sea water, fresh water,lubrication oil, fuel oil |
| 1.0 | 32 | |
| 1.6 | 20.25 | |
| 2.5 | 6,10,15 |
Main Parts & Material:
Body---Bronze
Core---Bronze
Handle---Cast Iron
Main Size List(mm):
Type A:
| PN (MPa) | DN (mm) | Structure Dimension | thread connection | handle l0 | Thickness δ | Weight(kg) | ||||||||
| L | L1 | H1 | H | D | D1 | D2 | I | I1 | I2 | |||||
| 2.5 | 6 | 60 | 25 | 20 | 60 | M22×1.5 | 19.8 | 10 | 14 | 3 | 3 | 100 | 5 | 0.4 |
| 10 | 69 | 30 | 27 | 72 | M27×1.5 | 24.8 | 14 | 16 | 3 | 3 | 110 | 5 | 0.63 | |
| 15 | 87 | 41 | 37 | 92 | M36×2 | 33 | 22 | 22 | 5 | 3 | 115 | 5 | 0.94 | |
| 1.6 | 20 | 92 | 43 | 40 | 99 | M36×2 | 33 | 24 | 20 | 3 | 2 | 125 | 4 | 1.43 |
| 25 | 103 | 50 | 42 | 108 | M42×2 | 39 | 29 | 21 | 3 | 2 | 140 | 4 | 1.69 | |
| 1.0 | 32 | 119 | 56 | 49 | 120 | M48×2 | 45 | 36 | 21 | 3 | 2 | 160 | 5 | 3.21 |
Type B:
| PN (MPa) | DN (mm) | Structure Dimension | thread connection D | handle l0 | Thickness δ | hex. Subtense s | locking hole d | Weight(kg) | |||
| L | L1 | H1 | H | ||||||||
| 0.1 | 10 | 58 | 14 | 21 | 58 | M22×1.5 | 80 | 3 | 22 | 6 | 0.58 |
| 15 | 67 | 18 | 26 | 65 | M27×1.5 | 85 | 3 | 27 | 6 | 0.88 | |
| 20 | 81 | 20 | 32 | 77 | M33×2 | 100 | 3 | 36 | 7 | 1.18 | |
| 25 | 98 | 22 | 37 | 90 | M42×2 | 120 | 3 | 41 | 8 | 1.7 | |
