CB Marine Air Pipe Head

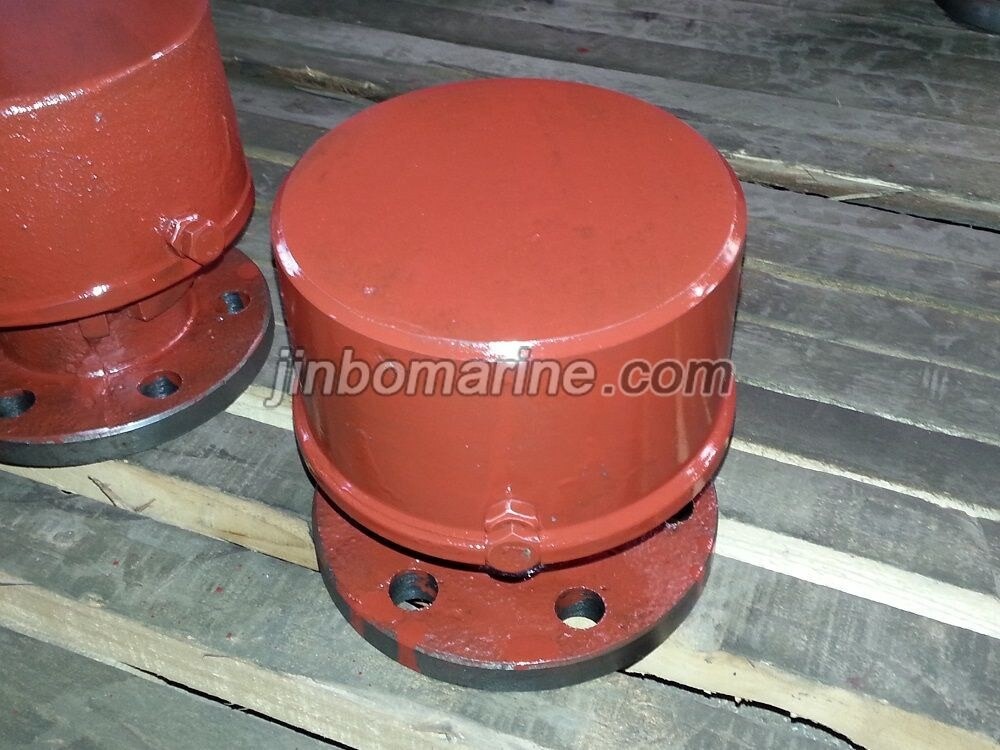

Mushroom Air Pipe Head CB/T3594-94 Type A/AS

Marine Air Pipe Head or can be called as marine air vent head, air pipe joint. It is used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,...

ISO9001 Supplier Class Certificate Export Supply
Mushroom Air Pipe Head CB/T3594-94 Type A/AS

Key Highlights

Category
CB Marine Air Pipe Head
Standard
DIN
Material
Cast Iron
Weight / Size
CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81 Flange Size as per GB569 ...
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
CB Marine Air Pipe Head
Model / SKU
Mushroom-Air-Pipe-Head-CB-T3594-94-Type-A-AS
Standard
DIN
Material
Cast Iron
Weight / Size
CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81 Flange Size as per GB569 or GB2501 Type Name Size Application A/AS Mushroom Air Pipe Head 50--250 on the top of air pipe of oil &water tank B/BS Gooseneck Air Pipe Head C/CS Sounding & Ventilation Air Pipe Head 50--100 D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 on the top of air pipe of oil tank E/ES Float Disc Type Air Pipe Head for Water Tank on the top of air pipe of water tank FS Float Ball Type Air Pipe Head for oil &water Tank on the top of air pipe of oil &water tank Main Material:
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China

China Mushroom Air Pipe Head CB/T3594-94 Type A/AS:

Marine Air Pipe Head or can be called as marine air vent head, air pipe joint. It is used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,D/DS,E/ES,FS.

Standard: CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81

Flange Size as per GB569 or GB2501

Type Name Size Application
A/AS Mushroom Air Pipe Head 50--250 on the top of air pipe of oil &water tank
B/BS Gooseneck Air Pipe Head
C/CS Sounding & Ventilation Air Pipe Head 50--100
D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 on the top of air pipe of oil tank
E/ES Float Disc Type Air Pipe Head for Water Tank on the top of air pipe of water tank
FS Float Ball Type Air Pipe Head for oil &water Tank on the top of air pipe of oil &water tank

Main Material:

1-Cover: Cast Iron

2-Screw: Carbon Steel

3-Body: Cast Iron

4-Filter Screen: Brass

Main Size List for Type A/AS(mm):

DN Structure Dimension Thickness Cover Flange Size Weight (kgs)
D D1 b n d0 Cast Iron
H H1 δ d h Type A Type AS Type A Type AS Type A Type AS Type A Type AS Type A Type AS Type A Type AS
50 110 85 6 76 128 135 140 103 110 15 16 6 4 15 14 4.08 4.17
65 120 90 80 150 155 160 123 130 14 16 6 4 15 14 5.63 5.73
80 140 100 90 180 170 190 138 150 14 18 8 4 15 18 7.24 7.27
100 160 120 7 105 200 190 210 158 170 14 18 8 4 15 18 11.91 12.5
150 175 130 8 120 250 240 265 208 225 14 20 12 8 15 18 20.4 22.4
200 190 150 6 130 300 295 320 264 280 15 22 12 8 15 18 26.44 26.93
250 220 180 8 140 350 365 375 327 335 16 24 14 12 17 18 31.71 36
