Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Communication Equipment

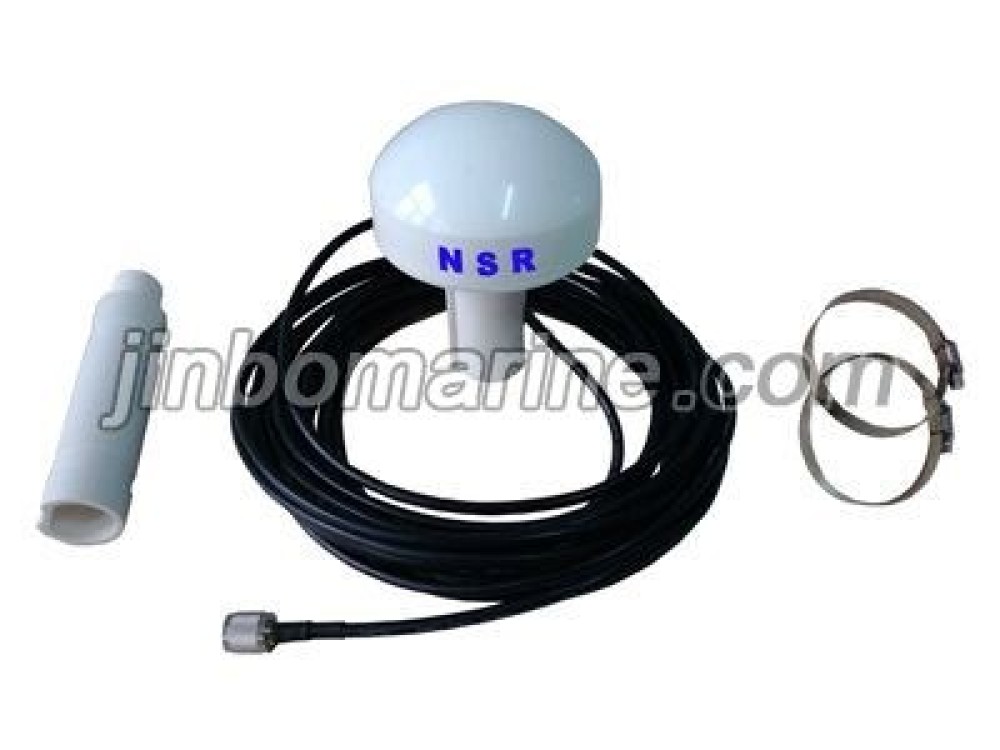

NGA100 GPS Antenna

Part No  NGA100-10, NGA100-20, NGA100-30  Receiving Frequency: 1575MHz±5 MHz Polarization:  Circular ...

ISO9001 Supplier Class Certificate Export Supply
NGA100 GPS Antenna

Key Highlights

Category
Marine Communication Equipment
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Communication Equipment
Model / SKU
NGA100-GPS-Antenna
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China NGA100 GPS Antenna:

Part No NGA100-10, NGA100-20, NGA100-30
Receiving Frequency:

 1575MHz±5 MHz
Polarization: Circular
Antenna Gain: ≥3.5dBi
Noise Figure: ≤1.5dB
Power Supply: 3V / 5V DC
Max. Dia: φ96mm
Length : 126mm
Cable: RG58 10M, 20M, 30M
Connector: TNC or BNC
Operation Temperature: -45℃~ ­+85℃
IP Grade: IP66
