Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Chain Stopper

OCIMF Type Single Point Mooring Chain Stopper

Customized service is available, Advanced equipment ,Strong consciousness in controlling quality. Provide mill certificate. Paint: Grey Epoxy Primer, for the middle paint and surface according to your requi...

ISO9001 Supplier Class Certificate Export Supply

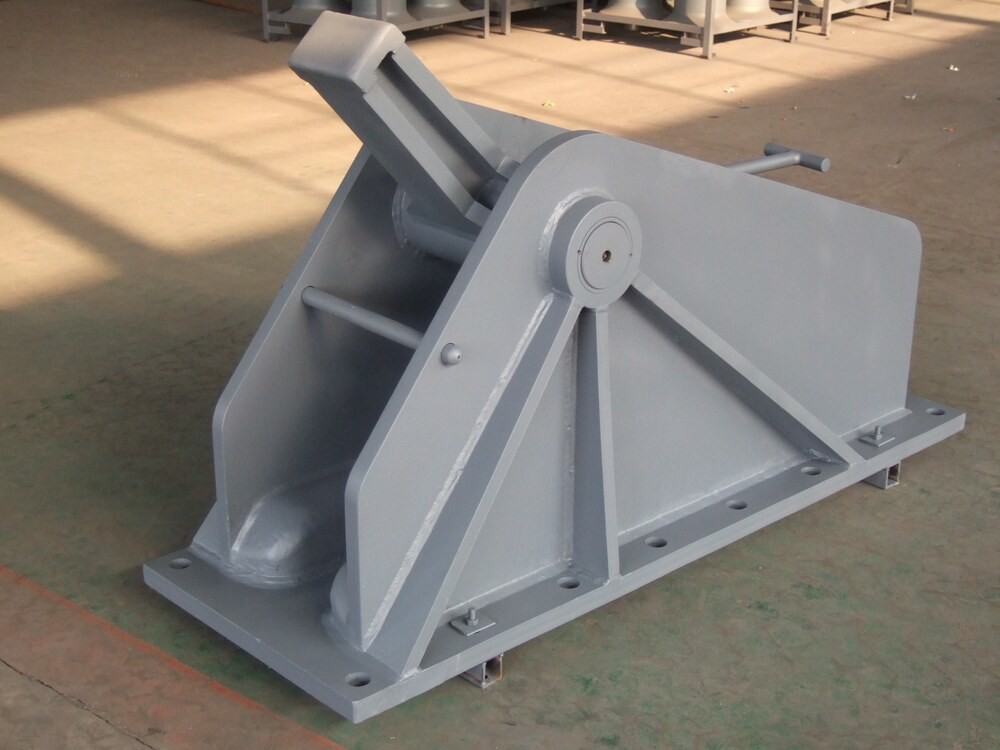

OCIMF Type Single Point Mooring Chain Stopper

Key Highlights

Category
Chain Stopper
Standard
DIN
Material
cast iron,cast steel
Weight / Size
OCIMF Type single point mooring Chain Stopper Nominal Chain Dimension(mm...
Certificate
CCS,BV,ABS,mill certificate etc.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Chain Stopper
Model / SKU
OCIMF-Type-Single-Point-Mooring-Chain-Stopper
Standard
DIN
Material
cast iron,cast steel
Weight / Size
OCIMF Type single point mooring Chain Stopper Nominal Chain Dimension(mm) Weight(kg) Dia.(mm) L B H H1 b4 54-56 1336 474 631 481 400 488 76-78 1800 640 850 648 540 1421
Surface
Grey Epoxy Primer, for the middle paint and surface according to your requirement.
Certificate
CCS,BV,ABS,mill certificate etc.
Warranty
12 Months unless specified otherwise
Origin
China

China OCIMF Type Single Point Mooring Chain Stopper:

Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.

Provide mill certificate.

Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.

Withstand 80% of Chain Cable's breaking load.

OCIMF Type single point mooring Chain Stopper

Nominal Chain

Dimension(mm)

Weight(kg)

Dia.(mm)

L

B

H

H1

b4

54-56

1336

474

631

481

400

488

76-78

1800

640

850

648

540

1421
