Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Tank Lid Packing

PTFE Tank Lid Packing IMPA 810724

PTFE Tank Lid Packing IMPA 810724 Size: 38mm*38mm Tank lid packing with an ethylene-propylene core, spirally wound with PTFE tape, over-braided with polypropylene yarn jackets. Specially developed to ...

ISO9001 Supplier Class Certificate Export Supply
PTFE Tank Lid Packing IMPA 810724

Key Highlights

Category
Marine Tank Lid Packing
Standard
DIN
Weight / Size
PTFE Tank Lid Packing IMPA 810724 Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Tank Lid Packing
Model / SKU
PTFE-Tank-Lid-Packing-IMPA-810724
Standard
DIN
Weight / Size
PTFE Tank Lid Packing IMPA 810724 Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. PTFE Tank Lid Packing IMPA 810724
  2. PTFE Tank Lid Packing Technical Specifications

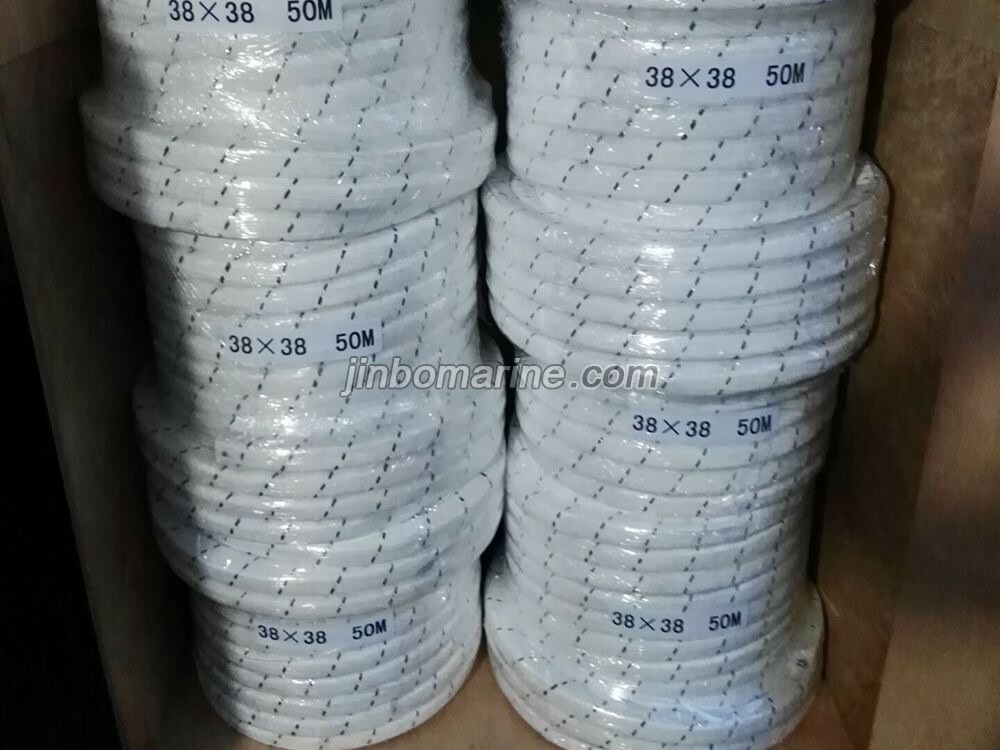

PTFE Tank Lid Packing IMPA 810724

Size: 38mm*38mm

Tank lid packing with an ethylene-propylene core, spirally wound with PTFE tape, over-braided with polypropylene yarn jackets.

Specially developed to seal marine cargo tank lids. The PTFE outer cover gives complete protection to the packing and is abrasion resistant. The unique core construction enables the packing to be welded together to form an endless seal, thus preventing the chance of any leakage at the joint. Tank lid packing is chosen according to type of cargo.

For static cargo or chemical tanks, and acids, alkalis, oils, solvents, chemicals and edible products.

PTFE Tank Lid Packing Technical Specifications

Square Section Rectangular Section
IMPA CODE Size (mm) IMPA CODE Size (mm)
810721 20×20 810726 20×15
810722 25×25 810727 30×20
810723 35×35 810728 35×25
810724 38×38 810729 40×30
810725 40×40
