US Type Bolt Anchor Shackle G2130
Forged Shackle
High Tensile force
Standard: U.S Type
4/6 Times Working Load
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Shackle

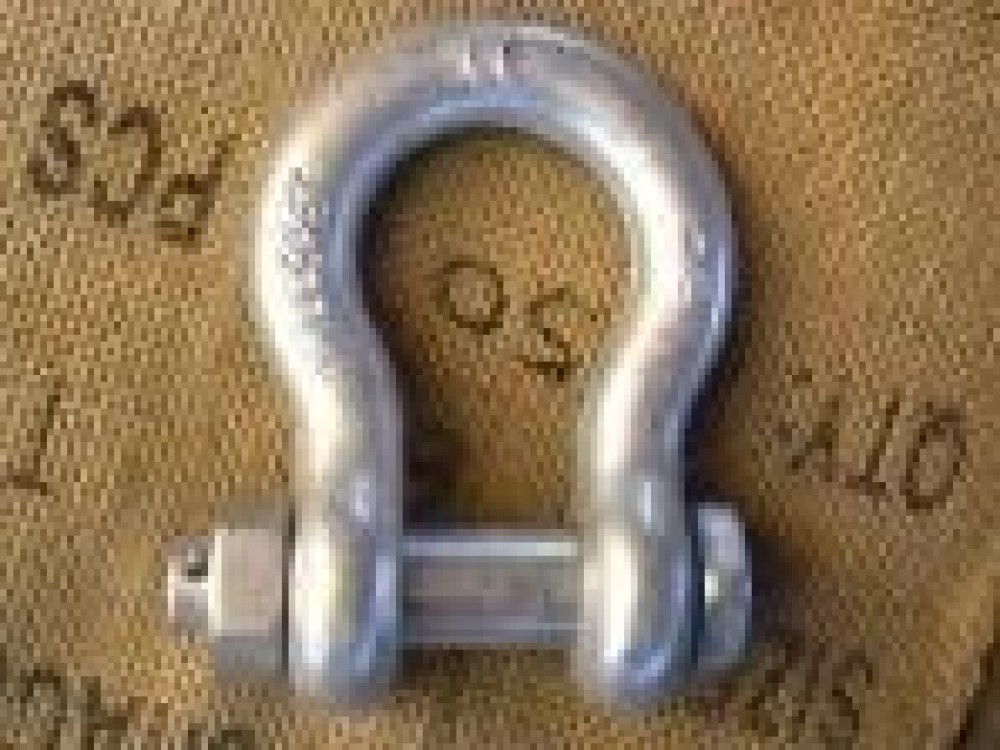

Safety Bow Shackle G2130
US Type Bolt Anchor Shackle G2130 Forged Shackle High Tensile force Standard: U.S Type 4/6 Times Working Load Main Specification Nomin...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Shackle
Standard
EN
Weight / Size
U.S Type 4/6 Times Working Load Main Specification Nominal Size Working ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Shackle
Model / SKU
Safety-Bow-Shackle-G2130
Standard
EN
Weight / Size
U.S Type 4/6 Times Working Load Main Specification Nominal Size Working Load Dimensions Weight (in.) (tons) A B C D E F H L N (lbs.) 3/16 1/3 0.38 0.25 0.88 0.19 0.6 0.56 1.47 0.98 0.19 0.06 1/4 1/2 0.47 0.31 1.13 0.25 0.78 0.61 1.84 1.28 0.25 0.11 5/16 3/4 0.53 0.38 1.22 0.31 0.84 0.75 2.09 1.47 0.31 0.22 3/8 1 0.66 0.44 1.44 0.38 1.03 0.91 2.49 1.78 0.38 0.33 7/16 1 1/2 0.75 0.5 1.69 0.44 1.16 1.06 2.91 2.03 0.44 0.49 1/2 2 0.81 0.64 1.88 0.5 1.31 1.19 3.28 2.31 0.5 0.79 5/8 3 1/4 1.06 0.77 2.38 0.63 1.69 1.5 4.19 2.94 0.69 1.68 3/4 4 3/4 1.25 0.89 2.81 0.75 2 1.81 4.97 3.5 0.81 2.72 7/8 6 1/2 1.44 1.02 3.31 0.88 2.28 2.09 5.83 4.03 0.97 3.95 l 8 1/2 1.69 1.15 3.75 1 2.69 2.38 6.56 4.69 1.06 5.66 l 1/8 9 1/2 1.81 1.25 4.25 1.13 2.91 2.69 7.47 5.16 1.25 8.27 l 1/4 12 2.03 1.4 4.69 1.29 3.25 3 8.25 5.75 1.38 11.71 l 3/8 13 1/1 2.25 1.53 5.25 1.42 3.63 3.31 9.16 6.38 1.5 15.83 l 1/2 17 2.38 1.66 5.75 1.53 3.88 3.63 10 6.88 1.62 19 l 3/4 25 2.88 2.04 7 1.84 5 4.19 12.34 8.8 2.25 33.91 2 35 3.25 2.3 7.75 2.08 5.75 4.81 13.68 10.15 2.4 52.25 2.5 55 4.13 2.8 10.5 2.71 7.25 5.69 17.9 12.75 3.13 98.25 3 85 5 3.3 13 3.12 7.88 6.5 21.5 14.62 3.62 154 3.5 120 5.25 3.76 14.63 3.62 9 8 24.88 17.02 4.38 265 4 150 5.5 4.26 14.5 4 10 9 25.68 18 4.56 338
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Safety Bow Shackle G2130:
Main Specification
| Nominal Size | Working Load | Dimensions | Weight | ||||||||
| (in.) | (tons) | A | B | C | D | E | F | H | L | N | (lbs.) |
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 1.47 | 0.98 | 0.19 | 0.06 |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 1.28 | 0.25 | 0.11 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 1.47 | 0.31 | 0.22 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 0.33 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 2.03 | 0.44 | 0.49 |
| 1/2 | 2 | 0.81 | 0.64 | 1.88 | 0.5 | 1.31 | 1.19 | 3.28 | 2.31 | 0.5 | 0.79 |
| 5/8 | 3 1/4 | 1.06 | 0.77 | 2.38 | 0.63 | 1.69 | 1.5 | 4.19 | 2.94 | 0.69 | 1.68 |
| 3/4 | 4 3/4 | 1.25 | 0.89 | 2.81 | 0.75 | 2 | 1.81 | 4.97 | 3.5 | 0.81 | 2.72 |
| 7/8 | 6 1/2 | 1.44 | 1.02 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 4.03 | 0.97 | 3.95 |
| l | 8 1/2 | 1.69 | 1.15 | 3.75 | 1 | 2.69 | 2.38 | 6.56 | 4.69 | 1.06 | 5.66 |
| l 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 7.47 | 5.16 | 1.25 | 8.27 |
| l 1/4 | 12 | 2.03 | 1.4 | 4.69 | 1.29 | 3.25 | 3 | 8.25 | 5.75 | 1.38 | 11.71 |
| l 3/8 | 13 1/1 | 2.25 | 1.53 | 5.25 | 1.42 | 3.63 | 3.31 | 9.16 | 6.38 | 1.5 | 15.83 |
| l 1/2 | 17 | 2.38 | 1.66 | 5.75 | 1.53 | 3.88 | 3.63 | 10 | 6.88 | 1.62 | 19 |
| l 3/4 | 25 | 2.88 | 2.04 | 7 | 1.84 | 5 | 4.19 | 12.34 | 8.8 | 2.25 | 33.91 |
| 2 | 35 | 3.25 | 2.3 | 7.75 | 2.08 | 5.75 | 4.81 | 13.68 | 10.15 | 2.4 | 52.25 |
| 2.5 | 55 | 4.13 | 2.8 | 10.5 | 2.71 | 7.25 | 5.69 | 17.9 | 12.75 | 3.13 | 98.25 |
| 3 | 85 | 5 | 3.3 | 13 | 3.12 | 7.88 | 6.5 | 21.5 | 14.62 | 3.62 | 154 |
| 3.5 | 120 | 5.25 | 3.76 | 14.63 | 3.62 | 9 | 8 | 24.88 | 17.02 | 4.38 | 265 |
| 4 | 150 | 5.5 | 4.26 | 14.5 | 4 | 10 | 9 | 25.68 | 18 | 4.56 | 338 |
