Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Hook

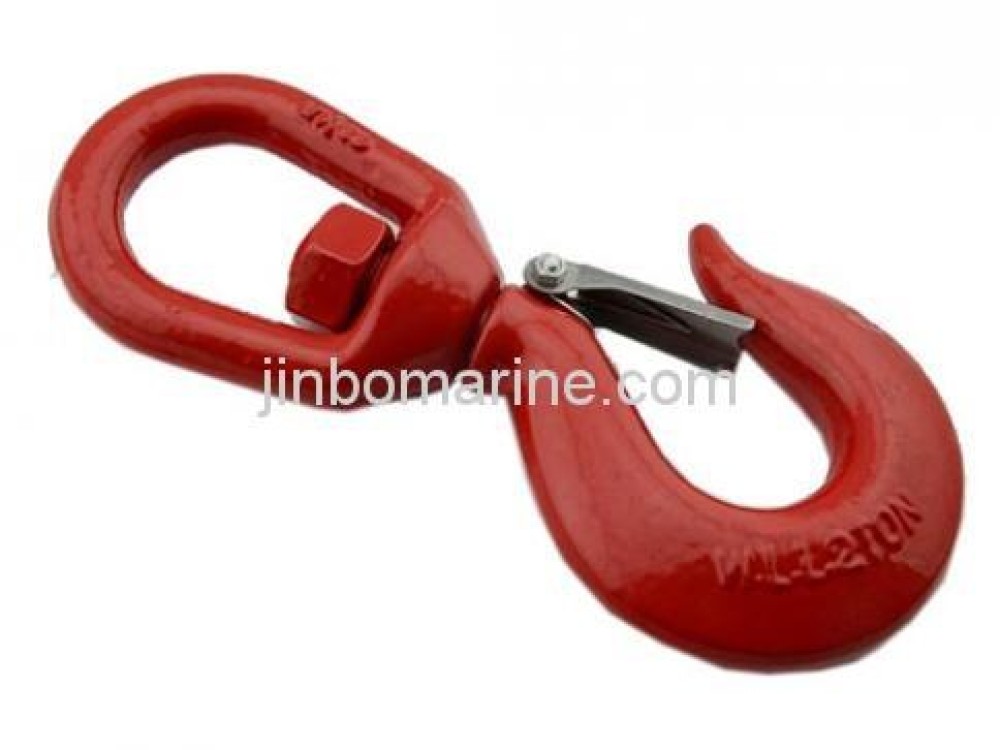

Swivel Hooks S322
Similar Name Latch hook Safety hook Lifting hook Swivel hook Main Specification Compromise of Hook and Latch Forging Technology 45# Steel Size Ta...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Hook
Standard
EN
Material
45# Steel
Weight / Size
Similar Name Latch hook Safety hook Lifting hook Swivel hook Main Specif...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Hook
Model / SKU
Swivel-Hooks-S322
Standard
EN
Material
45# Steel
Weight / Size
Similar Name Latch hook Safety hook Lifting hook Swivel hook Main Specification Compromise of Hook and Latch Forging Technology 45# Steel Size Table WLL (metric) DIMENSIONS(in) Weight (lbs) 322C 322A A B C D E L R S T O 3/4 1 2 15/16 1 1/4 2 7/8 15/16 5 9/16 4 15/32 3/8 13/16 7/8 0.75 1 1 1/2 2 1/2 1 5/16 1 1/2 3 3/16 1 1/32 6 5/8 5 9/32 1/2 13/16 31/32 1.25 1 1/2 2 3 1 5/8 1 3/4 3 5/8 1 1/16 7 5/8 6 1/64 5/8 27/32 1 2.25 2 3 3 1 9/16 1 3/4 4 3/32 1 7/32 8 1/8 6 3/8 5/8 1 3/16 1 1/8 2.57 3 Feb-41 3 1/2 1 3/4 2 4 15/16 1 1/2 9 19/32 7 13/32 3/4 1 3/8 1 11/32 4.75 5 7 4 1/2 2 5/16 2 1/2 6 1/2 1 7/8 12 13/32 9 19/32 1 1 25/32 1 11/16 10.29 7 1/2 11 5 2 3/8 2 3/4 7 9/16 2 1/4 11 1/8 11 1/8 1 1/8 2 1/8 2 1/16 16.25
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
Compromise of Hook and Latch
Forging Technology
45# Steel
Size Table
| WLL (metric) | DIMENSIONS(in) | Weight (lbs) | ||||||||||
| 322C | 322A | A | B | C | D | E | L | R | S | T | O | |
| 3/4 | 1 | 2 | 15/16 | 1 1/4 | 2 7/8 | 15/16 | 5 9/16 | 4 15/32 | 3/8 | 13/16 | 7/8 | 0.75 |
| 1 | 1 1/2 | 2 1/2 | 1 5/16 | 1 1/2 | 3 3/16 | 1 1/32 | 6 5/8 | 5 9/32 | 1/2 | 13/16 | 31/32 | 1.25 |
| 1 1/2 | 2 | 3 | 1 5/8 | 1 3/4 | 3 5/8 | 1 1/16 | 7 5/8 | 6 1/64 | 5/8 | 27/32 | 1 | 2.25 |
| 2 | 3 | 3 | 1 9/16 | 1 3/4 | 4 3/32 | 1 7/32 | 8 1/8 | 6 3/8 | 5/8 | 1 3/16 | 1 1/8 | 2.57 |
| 3 | Feb-41 | 3 1/2 | 1 3/4 | 2 | 4 15/16 | 1 1/2 | 9 19/32 | 7 13/32 | 3/4 | 1 3/8 | 1 11/32 | 4.75 |
| 5 | 7 | 4 1/2 | 2 5/16 | 2 1/2 | 6 1/2 | 1 7/8 | 12 13/32 | 9 19/32 | 1 | 1 25/32 | 1 11/16 | 10.29 |
| 7 1/2 | 11 | 5 | 2 3/8 | 2 3/4 | 7 9/16 | 2 1/4 | 11 1/8 | 11 1/8 | 1 1/8 | 2 1/8 | 2 1/16 | 16.25 |
