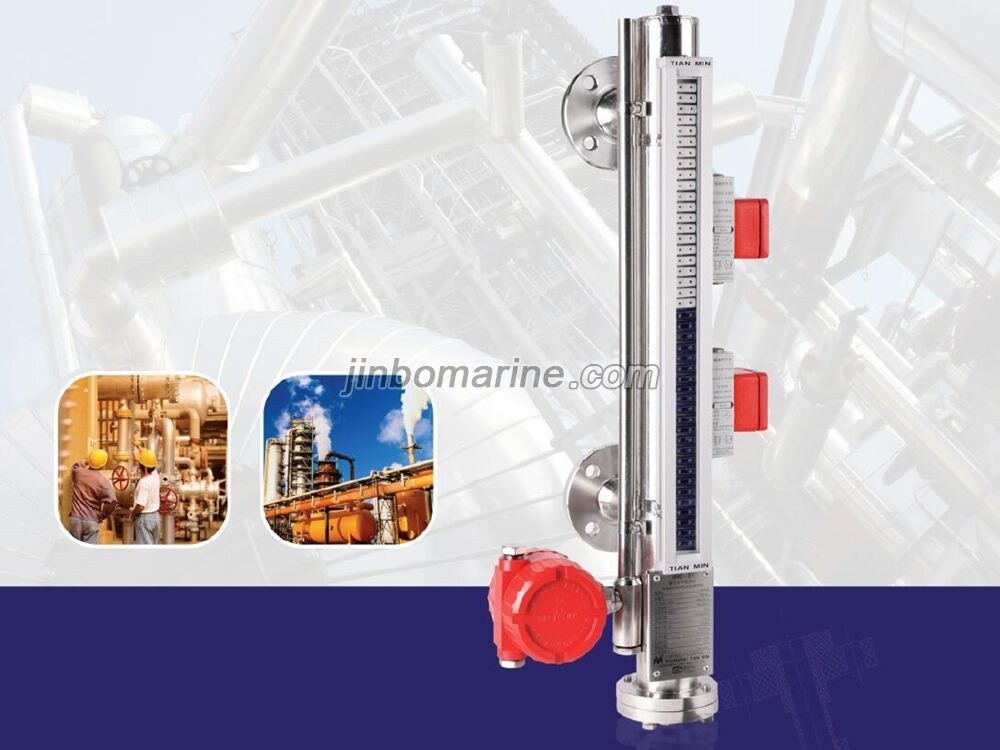

UHZ-511 Basic Magnetic Float Level Indicator Type.
UHZ-511Y High Pressure Magnetic Float Level Indicator Type.
UHZ-512Q Steam Heating jacket Magnetic Float Level Indicator Type.
UHZ-512D Electric Tracing Magnetic Float Level Indicator Type.
UHZ-513 Frost Preventive Magnetic Float Level Indicator Type.
UHZ-514 Corrosion Resistant Magnetic Float Level Indicator Type.
UHZ-515 Top Mounted Magnetic Float Level Indicator Type.
UHZ-515 Corrosion Prevention top mounted Magnetic Float Level Indicator Type.
UHZ-516 Suspension Magnetic Float Level Indicator Type.
UHZ-517 Lining Magnetic Float Level Indicator Type.
UHZ-518 Liquid Gas Magnetic Float Level Indicator Type.
UHZ-519 Sanitation Magnetic Float Level Indicator Type.
| UHZ-51 | Magnetic Float Level Indicator | ||||
| Code 1 | Model number | 1 | 2 | 3 | 4 |
| Basic type | Heating jacket type | Frost proof type | Corrosion resistant type | ||
| Y High pressure type | Q steam heating | ||||
| D electric trace heating | |||||
| DB Explosion proof electric trace heating | |||||
| 5 | 6 | 7 | 8 | 9 |
| Top mounted type | Suspension type | Lining type | Liquid gas type(Gasify type) | sanitation type |
| Code 2 | Magnetic flap indication |
| ZWA/... | Aluminium section,plastic magnetic flap,organic glass window.(white color turned to red color) |
| ZWH/... | Aluminium section,ceramic magnetic flap,glass window.(white color turned to blue color) |
| ZWS/... | Aluminium section,plastic magnetic flap,thicken organic glass window.(white color turned to red color),frost proof type |
| ZWV/... | Aluminium section,outer with stainless steel corrosion protection,plastic magnetic flap,organic glass window.(white color turned to red color). |
| ZWP/... | Plastic section,plastic magnetic flap,organic glass window.(white color turned to red color).corrosion prevention (suitable for UHZ-514 level gauge) |
| Additional scaleplate option | |
| .../SA | with scale aluminium ruler,scale unit cm |
| .../SV | with scale stainless stee; ruler,scale unit cm |
| Code 3 | Level transmitter (two wire system) |
| X/.... | aluminium junction box,stainless steel tube,normal type. |
| XBi/.... | aluminium junction box,stainless steel tube,intrinsic safety type. |
| XBd/.... | aluminium junction box,stainless steel tube,flame-proof type. |
| XH../XHBi.. | aluminium junction box,stainless steel tube,HART agreement. |
| Additional resolution ratio option. | |
| ..../K20 | Resolution ratio=20mm |
| ..../K10 | Resolution ratio=10mm |
| ..../K5 | Resolution ratio=5mm |
| Code 4 | Connection format |
| DN.../PN... | Flange connnection. Flange standard. |
| GM/.... | Internal thread connection/thread size |
| GN/.... | External thread connection/thread size |
| S/.... | Welding end connection/pipe size |
| Code 5 | Main body material and main tube size |
| V.... | Stainless steeel 304,main tube outer diameter x wall thickness (mm) |
| VL.... | Stainless steeel 316L,main tube outer diameter x wall thickness (mm) |
| P.... | PVC,main tube outer diameter x wall thickness (mm) |
| PP.... | PPR,main tube outer diameter x wall thickness (mm) |
| Code 6 | Pressure |
| WP.... | Working pressure (Mpa) |
| Code 7 | Installation Size |
| L.... | Center distance between the two flanges (top mounted type need to provide immersion length L0) (Suspension type provide installation spacing L1) |
| Code 8 | Density |
| S.G.... | the medium density need to measure (kg/m3) |
| Code 9 | Working Temperature |
| T80 | working temperature small or equal to 80 centigrade, magnetic flap material is ABS, red and white. |
| T200 | working temperature small or equal to 200 centigrade, magnetic flap material is PBT, red and white. |
| T450 | working temperature small or equal to 450 centigrade, magnetic flap material is ceramic, blue and white. |
| Code 10 | Magnetic switch |
| J/... | Cable type. Magnetism maintain type (1 meter standard cable) |
| JC/... | Junction box type,magnetism maintain type |
| JB/... | Intrinsically safe and explosion-proof type,magnetism maintain type |
| JH/... | High temperature type,magnetism maintain type |
| JD/... | Flame-proof type,magnetism maintain type |
| Additionl switch option | |
| ../...switch quantity/guide line length |
