Product Datasheet

Rudder Stock Seal

Upper Rudder Carrier CB*3145

Product Advantage It is mainly suitable for various inland water vessels. Dimensions (mm) Weight (kg) A B ...

ISO9001 Supplier Class Certificate Export Supply

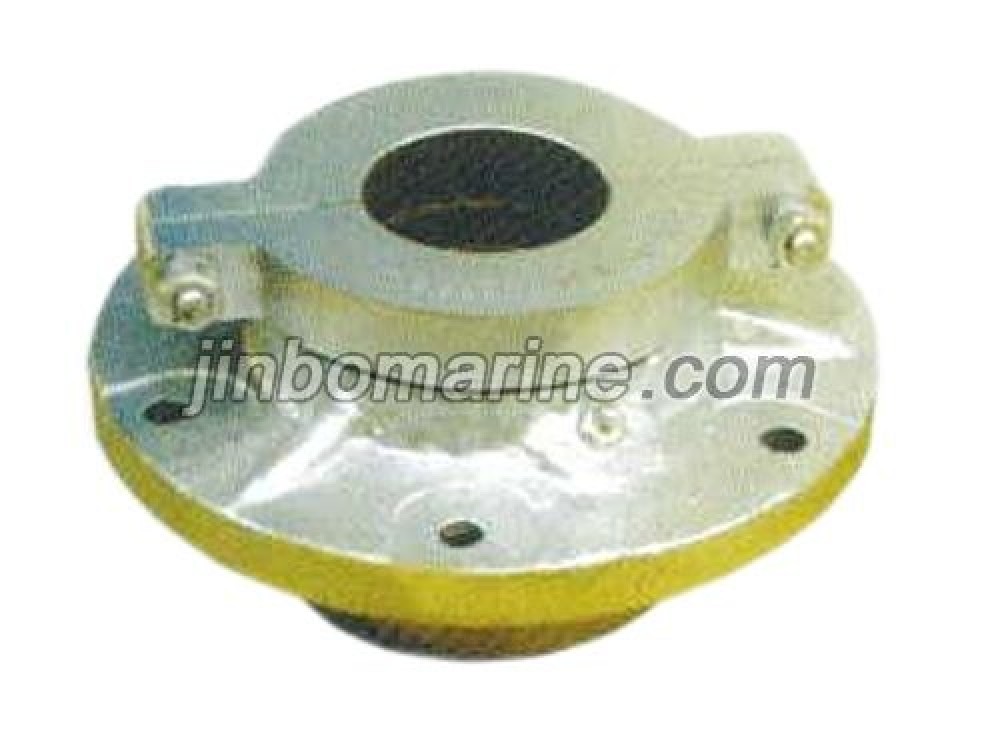

Upper Rudder Carrier CB*3145

Key Highlights

Category
Rudder Stock Seal
Standard
CB
Weight / Size
Dimensions (mm) Weight (kg) A B C D E L H b h d 146 120 80 40 34 80 34 1...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Rudder Stock Seal
Model / SKU
Upper-Rudder-Carrier-CB-3145
Standard
CB
Weight / Size
Dimensions (mm) Weight (kg) A B C D E L H b h d 146 120 80 40 34 80 34 12 14 M10 2.6 160 134 92 50 44 92 43 14 14 M10 4.8 188 158 110 60 52 106 45 14 16 M12 6.1 206 170 122 70 62 114 51 16 16 M12 9.1 235 199 135 80 70 124 65 16 18 M12 13.2 260 220 154 90 80 145 68 18 20 M16 21 298 250 174 100 88 158 70 20 20 M16 26.4 320 272 188 110 98 168 80 20 20 M16 32.3 342 294 202 120 106 183 90 22 24 M16 40.4 382 322 230 140 126 210 110 24 24 M20 55.8 424 354 258 160 144 239 120 26 28 M20 66.2 456 386 286 180 164 264 130 28 28 M20 89 490 422 318 200 180 294 140 30 32 M24 125.4 516 446 338 220 200 315 155 30 32 M24 154
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Product Advantage

It is mainly suitable for various inland water vessels.

Dimensions (mm) Weight (kg)
A B C D E L H b h d
146 120 80 40 34 80 34 12 14 M10 2.6
160 134 92 50 44 92 43 14 14 M10 4.8
188 158 110 60 52 106 45 14 16 M12 6.1
206 170 122 70 62 114 51 16 16 M12 9.1
235 199 135 80 70 124 65 16 18 M12 13.2
260 220 154 90 80 145 68 18 20 M16 21
298 250 174 100 88 158 70 20 20 M16 26.4
320 272 188 110 98 168 80 20 20 M16 32.3
342 294 202 120 106 183 90 22 24 M16 40.4
382 322 230 140 126 210 110 24 24 M20 55.8
424 354 258 160 144 239 120 26 28 M20 66.2
456 386 286 180 164 264 130 28 28 M20 89
490 422 318 200 180 294 140 30 32 M24 125.4
516 446 338 220 200 315 155 30 32 M24 154
