Shackle

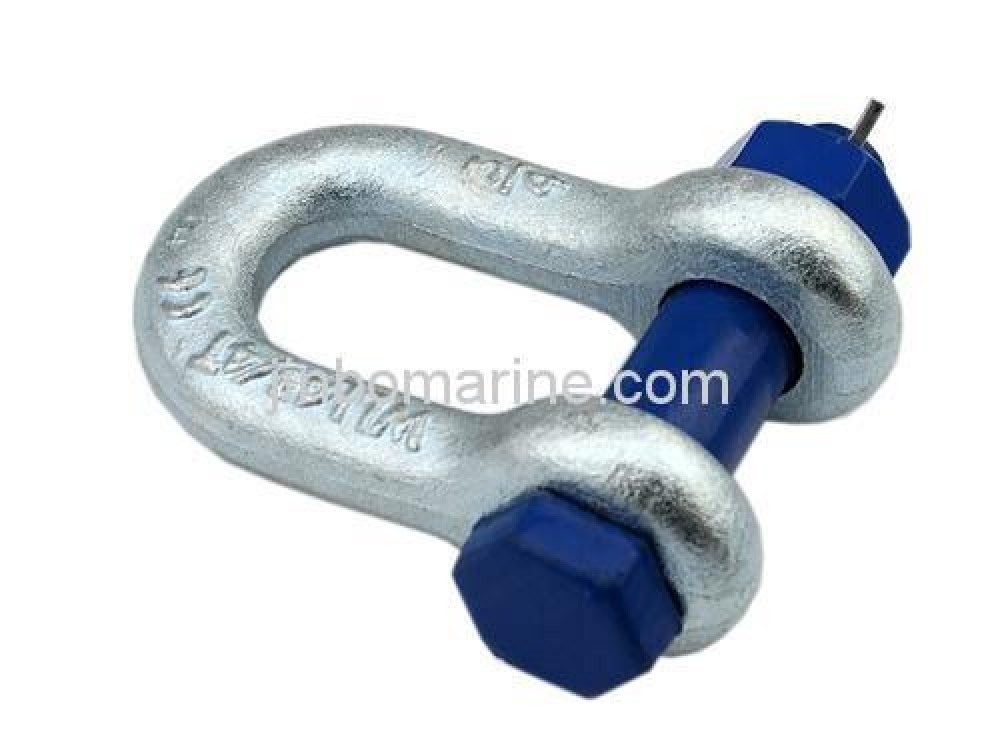

US Type Bolt Chain Shackle G2150
Similar Name US Type Screw Pin Chain Shackles G-2150 US Type Bolt Chain Shackle G-2150 US Type Straight Shackle G-2150 US Type High Strength Shackle G-2150 US Type Alloy Steel Shackle G-2150...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Shackle
Standard
EN
Material
45# Steel and 40Cr Steel
Weight / Size
Size Table Nominal Size(in) WLL (Tons) Dimension(in) Weight(lbs) A B D F...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Shackle
Model / SKU
US-Type-Bolt-Chain-Shackle-G2150
Standard
EN
Material
45# Steel and 40Cr Steel
Weight / Size
Size Table Nominal Size(in) WLL (Tons) Dimension(in) Weight(lbs) A B D F G K M P R G-2150 1/4 1/2 0.47 0.31 0.25 0.62 0.91 1.59 0.97 1.56 0.25 0.13 5/16 3/4 0.53 0.38 0.31 0.75 1.07 1.91 1.15 1.82 0.31 0.23 3/8 1 0.66 0.44 0.38 0.92 1.28 2.31 1.42 2.17 0.38 0.33 7/16 1 1/2 0.75 0.5 0.44 1.06 1.48 2.67 1.63 2.51 0.44 0.49 1/2 2 0.81 0.64 0.5 1.18 1.66 3.03 1.81 2.8 0.5 0.75 5/8 3 1/4 1.06 0.77 0.63 1.5 2.04 3.76 2.32 3.56 0.63 1.47 3/4 4 3/4 1.25 0.89 0.75 1.81 2.4 4.53 2.75 4.15 0.81 2.52 7/8 6 1/2 1.44 1.02 0.88 2.1 2.86 5.33 3.2 4.82 0.97 3.85 1 8 1/2 1.69 1.15 1 2.38 3.24 5.94 3.69 5.39 1 5.55 1 1/8 9 1/2 1.81 1.25 1.13 2.68 3.61 6.78 4.07 5.9 1.25 7.6 1 1/4 12 2.03 1.4 1.25 3 3.97 7.5 4.53 6.69 1.38 10.81 1 3/8 13 1/2 2.25 1.53 1.38 3.31 4.43 8.28 5.01 7.21 1.5 13.75 1 1/2 17 2.38 1.66 1.5 3.62 4.87 9.05 5.38 7.73 1.62 18.5 1 3/4 25 2.88 2.04 1.75 4.19 5.82 10.97 6.38 9.33 2.12 31.4 2 35 3.25 2.3 2.1 5 6.82 12.74 7.25 10.41 2.36 46.75 2 1/2 55 4.12 2.8 2.63 5.68 8.07 14.85 9.38 13.58 2.63 85 3 85 5 3.25 3 6.5 8.56 16.87 11 15.13 3.5 124.25
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
- U type body and a lateral pin.
- Drop Forged
- 45# Steel and 40Cr Steel
- Used in lifting or fasten cargo or machinery purpose.
Size Table
| Nominal Size(in) | WLL (Tons) | Dimension(in) | Weight(lbs) | ||||||||
| A | B | D | F | G | K | M | P | R | G-2150 | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.62 | 0.91 | 1.59 | 0.97 | 1.56 | 0.25 | 0.13 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.75 | 1.07 | 1.91 | 1.15 | 1.82 | 0.31 | 0.23 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.92 | 1.28 | 2.31 | 1.42 | 2.17 | 0.38 | 0.33 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 0.44 | 1.06 | 1.48 | 2.67 | 1.63 | 2.51 | 0.44 | 0.49 |
| 1/2 | 2 | 0.81 | 0.64 | 0.5 | 1.18 | 1.66 | 3.03 | 1.81 | 2.8 | 0.5 | 0.75 |
| 5/8 | 3 1/4 | 1.06 | 0.77 | 0.63 | 1.5 | 2.04 | 3.76 | 2.32 | 3.56 | 0.63 | 1.47 |
| 3/4 | 4 3/4 | 1.25 | 0.89 | 0.75 | 1.81 | 2.4 | 4.53 | 2.75 | 4.15 | 0.81 | 2.52 |
| 7/8 | 6 1/2 | 1.44 | 1.02 | 0.88 | 2.1 | 2.86 | 5.33 | 3.2 | 4.82 | 0.97 | 3.85 |
| 1 | 8 1/2 | 1.69 | 1.15 | 1 | 2.38 | 3.24 | 5.94 | 3.69 | 5.39 | 1 | 5.55 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 1.13 | 2.68 | 3.61 | 6.78 | 4.07 | 5.9 | 1.25 | 7.6 |
| 1 1/4 | 12 | 2.03 | 1.4 | 1.25 | 3 | 3.97 | 7.5 | 4.53 | 6.69 | 1.38 | 10.81 |
| 1 3/8 | 13 1/2 | 2.25 | 1.53 | 1.38 | 3.31 | 4.43 | 8.28 | 5.01 | 7.21 | 1.5 | 13.75 |
| 1 1/2 | 17 | 2.38 | 1.66 | 1.5 | 3.62 | 4.87 | 9.05 | 5.38 | 7.73 | 1.62 | 18.5 |
| 1 3/4 | 25 | 2.88 | 2.04 | 1.75 | 4.19 | 5.82 | 10.97 | 6.38 | 9.33 | 2.12 | 31.4 |
| 2 | 35 | 3.25 | 2.3 | 2.1 | 5 | 6.82 | 12.74 | 7.25 | 10.41 | 2.36 | 46.75 |
| 2 1/2 | 55 | 4.12 | 2.8 | 2.63 | 5.68 | 8.07 | 14.85 | 9.38 | 13.58 | 2.63 | 85 |
| 3 | 85 | 5 | 3.25 | 3 | 6.5 | 8.56 | 16.87 | 11 | 15.13 | 3.5 | 124.25 |
