Rope Thimbles

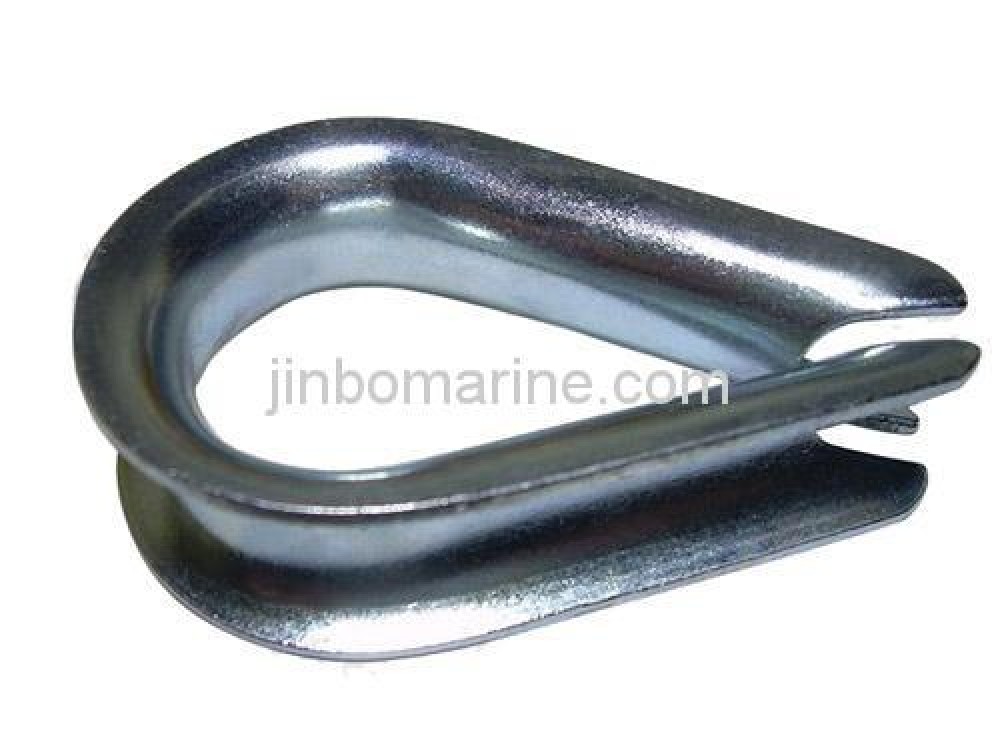

US Type Light Duty Wire Rope Thimbles G-411
Main Specification: Material: Q235 Finish: Hot Dip Galvanized. Size: 1/8" to 1 1/4" Size Table Pope DIA (IN) Weight /100(1bs...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Rope Thimbles
Standard
EN
Material
Material:
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Rope Thimbles
Model / SKU
US-Type-Light-Duty-Wire-Rope-Thimbles-G-411
Standard
EN
Material
Material:
Weight / Size
Size:
Surface
Hot Dip Galvanized
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Main Specification:
Material: Q235
Finish: Hot Dip Galvanized.
Size: 1/8" to 1 1/4"
Size Table
| Pope DIA (IN) | Weight /100(1bs.) | Dimensions(in.) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/8 | 2.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16 | 2.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4 | 3.75 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16 | 3.75 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8 | 6.25 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2 | 12.5 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8 | 25 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4 | 50 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8 | 85 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1 | 100 | 6.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
| 11/8-11/4 | 175 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 |
