WGP2 Type Horizontal Electrical Window Woper is new type to be used for side scuttles in the pilot house and operating cab. It is powered by an speed-adjustable motor. Its guide rail is made of aluminum alloy,which drives rubber wiper blade mounted at lower end of stainless steel swing rod.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Clear View Screen

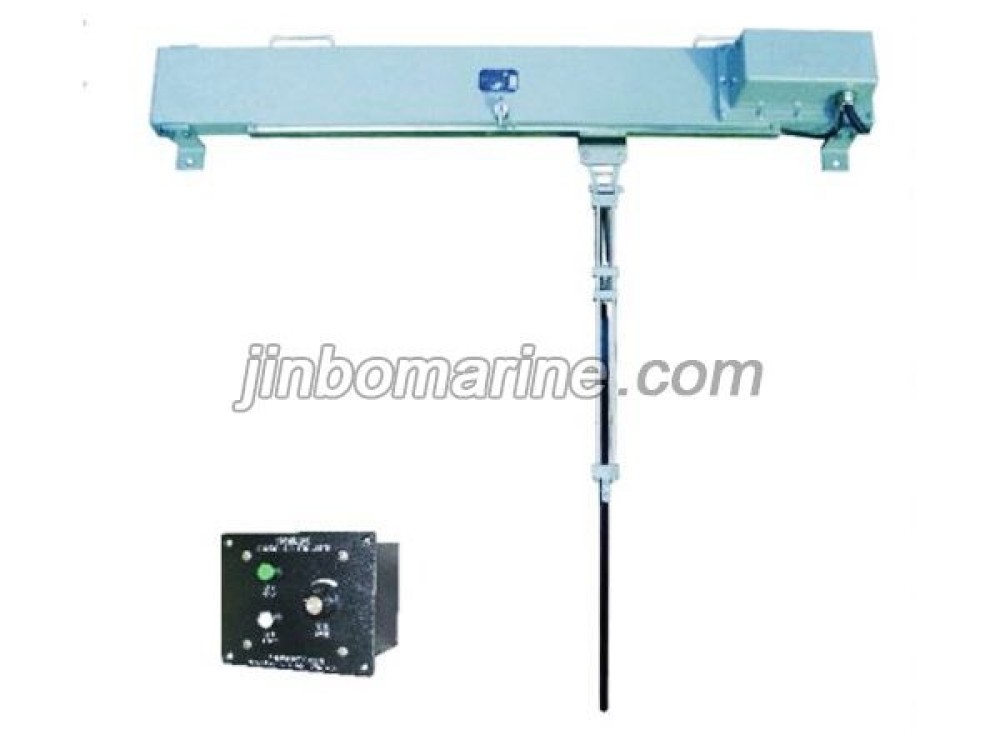

WGP2 Marine Horizontal Electrical Window Wiper
WGP2 Type Horizontal Electrical Window Woper is new type to be used for side scuttles in the pilot house and operating cab. It is powered by an speed-adjustable motor. Its guide rail is made of aluminum alloy,which drive...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Clear View Screen
Standard
EN
Material
Its guide rail is made of aluminum alloy,which drives rubber wiper blade...
Weight / Size
Outline Dimension of control box:
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Clear View Screen
Model / SKU
WGP2-Marine-Horizontal-Electrical-Window-Wiper
Standard
EN
Material
Its guide rail is made of aluminum alloy,which drives rubber wiper blade mounted at lower end of stainless steel swing rod.
Weight / Size
Outline Dimension of control box:
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
China WGP2 Marine Horizontal Electrical Window Wiper:
Main Technical Data
1. Power Supply: AC220V, AC110V or DC24V.
2. Frequency:50HZ/60HZ.
3. Wiper Speed:0.5-1.2M/Sec.
4. Consumed Power of Motor:<=120W.
5. Consumed power of Heater: <=300W.
6. Protection Grade: IP56.
7. Outline Dimension of control box: Box 130x100x132mm, Faceplate:150x120x4.
8. Power Box Extenernal Dimension: Box 250x200x145mm, Mounted Dimension: 280x170.
9. Weight: 26KGS.
10. Optional: Heater, Waterworks, automatic resetting.
| Type | Power | Body Length | Wiper Stroke | Arm Length | Blade Length |
| WGP2-JR | AC220V/AC110V | 1000-3000mm | 500-2700mm | 400-800mm | 400-1000mm |
| WGP-ZR | DC24V |
How to Order?
1. Please specify the model, swing distance, swing length, blade length, number of swing arms and addional heater.
2. Please specify if special requirement.
