| SIZE | A mm | B mm | C mm |
| 25 | 25 | 17 | 11.5 |
| 32 | 32 | 16.5 | 11.5 |
| 50 | 50 | 20 | 14 |
| 75 | 75 | 20 | 15 |
| 75 | 75 | 28.5 | 22 |
| 100 | 100 | 25 | 18 |
| 100 | 100 | 35 | 28 |
| 125 | 125 | 25.5 | 19.5 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Rope Thimbles

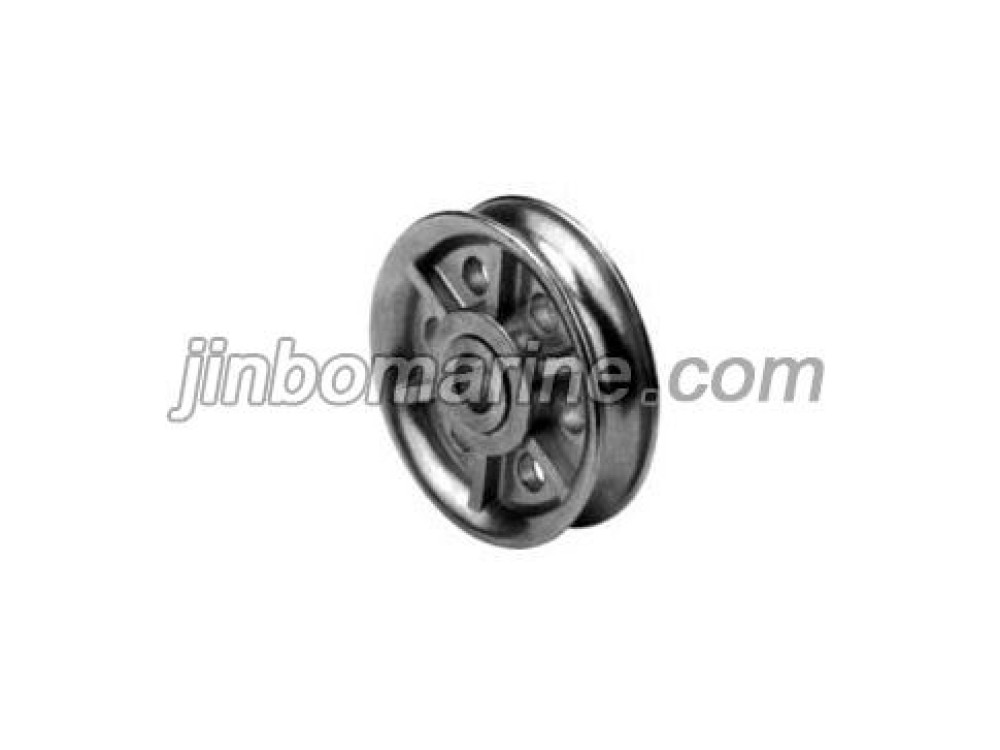

Wire Rope Sheave, SS304 OR SS316 BSSB02
SIZE A mm B mm C mm 25 25 17 11.5 32 32 16.5 ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Rope Thimbles
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm 25 25 17 11.5 32 32 16.5 11.5 50 50 20 14 75 75 20 1...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Rope Thimbles
Model / SKU
WIRE-ROPE-SHEAVE-SS304-OR-SS316-BSSB02
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm 25 25 17 11.5 32 32 16.5 11.5 50 50 20 14 75 75 20 15 75 75 28.5 22 100 100 25 18 100 100 35 28 125 125 25.5 19.5
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
