Marine Equipment
0.5PWF-8 Marine Smash Crushing Pump
0.5PWF-8 Marine Smash Crushing Pump: PWF smash pump for ships is mainly used for smashing and pumping of the waste in domestic sewage(for instance,paper,food waste,mud,anddry excrement...
Loading product images...

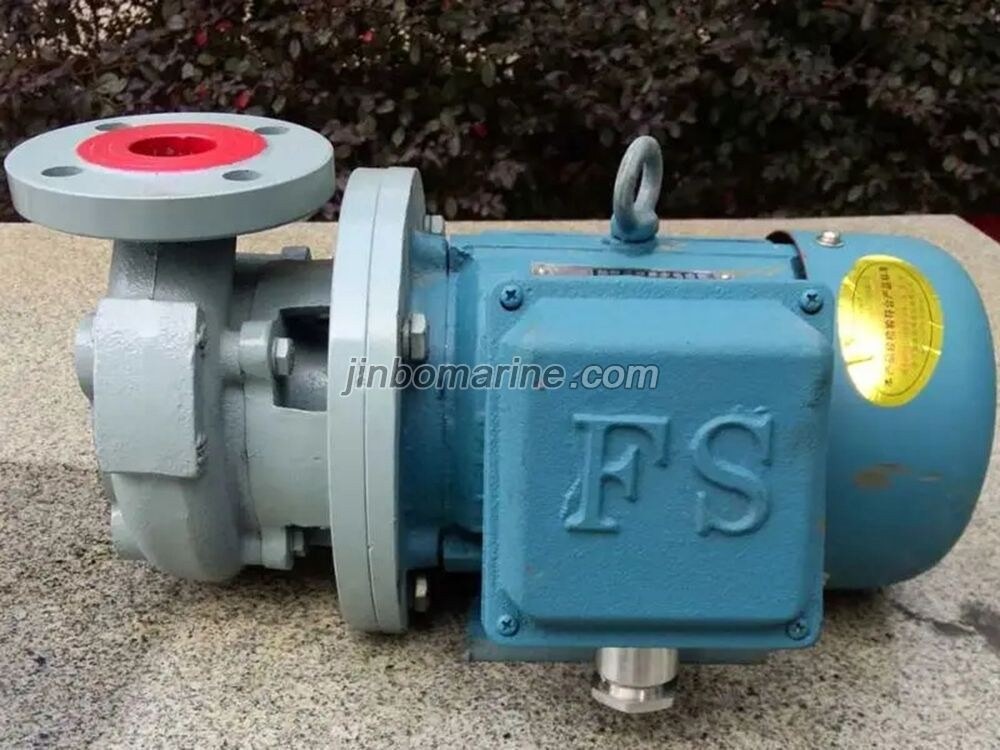

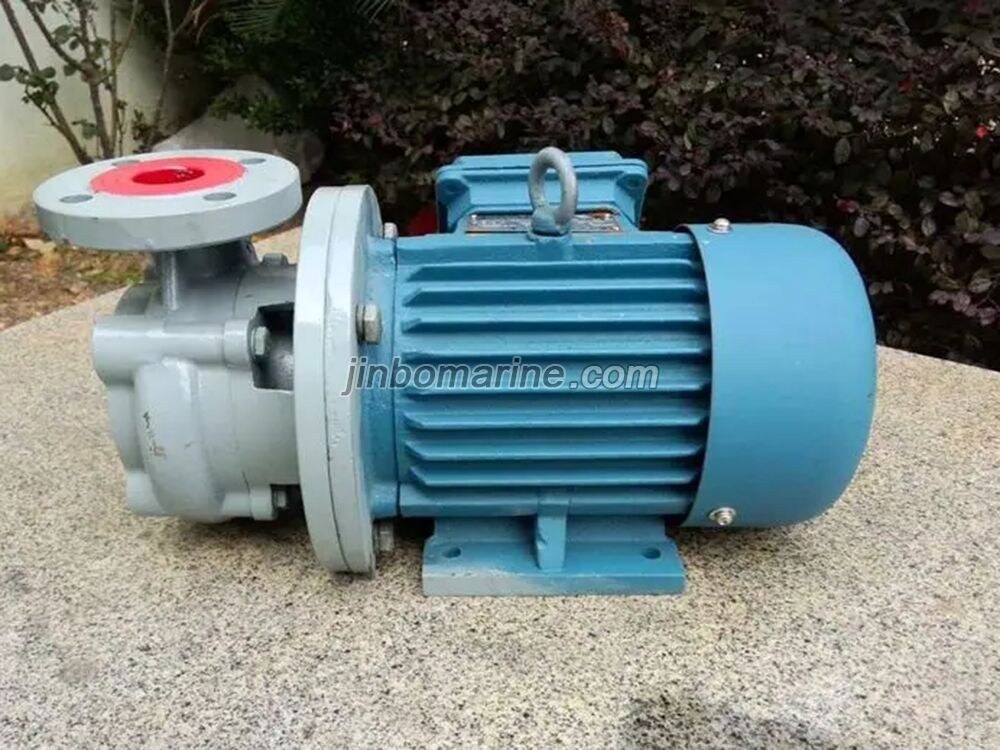

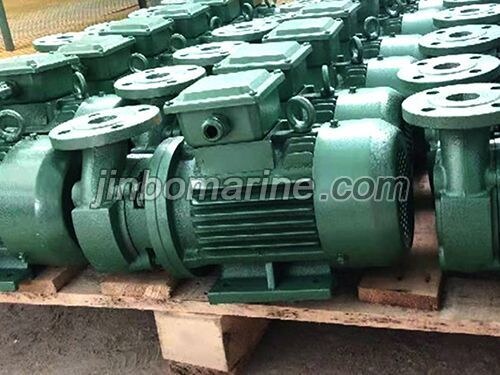

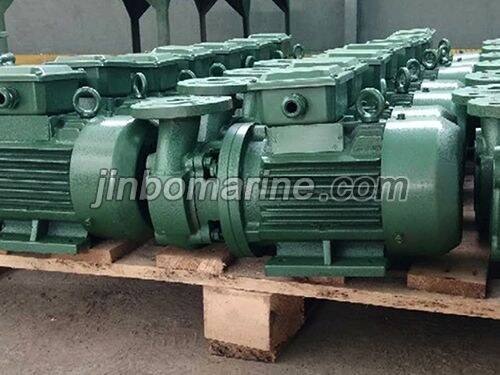

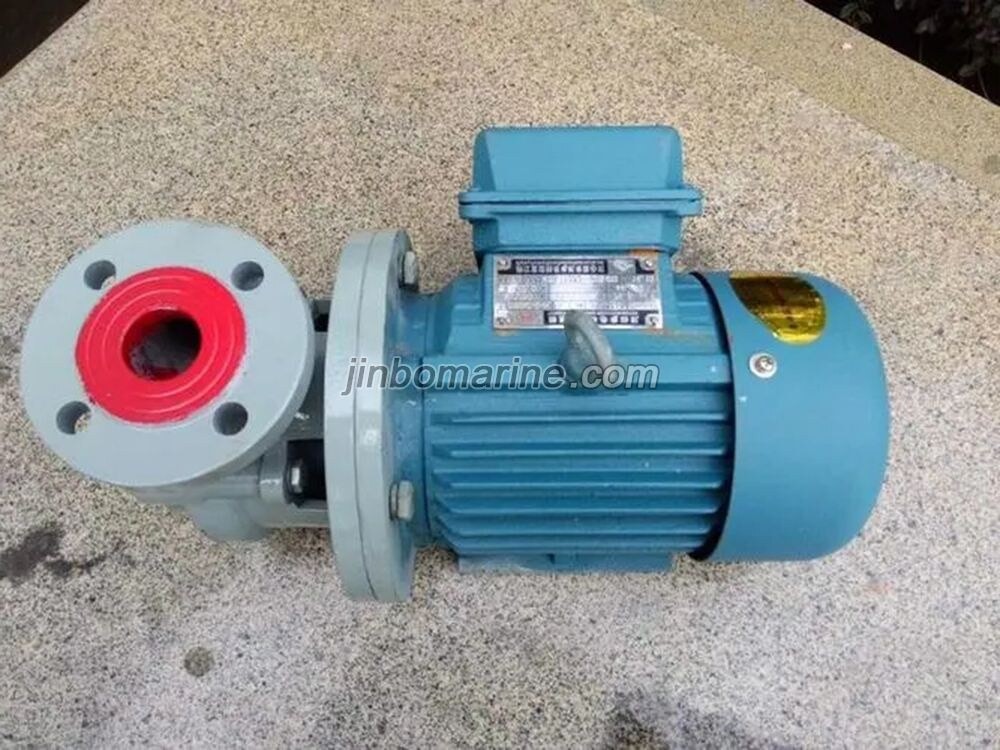

0.5PWF-8 Marine Smash Crushing Pump
PDF Datasheet
We can supply according to your requirement.
0.5PWF-8 Marine Smash Crushing Pump:
PWF smash pump for ships is mainly used for smashing and pumping of the waste in domestic sewage(for instance,paper,food waste,mud,anddry excrement).The largest diamerer of the solid particles after being smashed is no more than 5mm.The pump is more suitable for smashing low temperature agglomeratcd heavy oil to facilitatc the spraying.
Data Sheet:
| Model | Flow/h | Pressure Mpa | Motor Power KW | Speed rpm | ID mm | OD mm | ||||
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | |||
| 0.5PWF-8 | 5.00 | 6.10 | 0.08 | 0.12 | 0.75 | 1.50 | 2938 | 3460 | 50 | 32 |
| 0.5PWF-10 | 5.00 | 6.10 | 0.10 | 0.15 | 1.10 | 2.20 | 2840 | 3460 | 50 | 32 |
| 0.5PWF-15 | 5.00 | 6.10 | 0.15 | 0.22 | 1.10 | 2.20 | 2840 | 3460 | 50 | 32 |
| 0.5PWF-20 | 5.00 | 6.10 | 0.20 | 0.30 | 2.20 | 4.00 | 2845 | 3470 | 50 | 32 |
| 0.5PWF-25 | 5.00 | 6.10 | 0.25 | 0.37 | 2.20 | 4.00 | 2845 | 3470 | 50 | 32 |
| 1PWF-11 | 10.00 | 12.20 | 0.11 | 0.16 | 1.50 | 3.00 | 2845 | 3470 | 65 | 32 |
| 1PWF-20 | 10.00 | 12.20 | 0.20 | 0.30 | 3.00 | 5.50 | 2860 | 3490 | 65 | 32 |
| 1PWF-25 | 10.00 | 12.20 | 0.25 | 0.37 | 4.00 | 7.50 | 2870 | 3500 | 65 | 32 |
| 2PWF-11 | 20.00 | 24.40 | 0.11 | 0.16 | 2.20 | 4.00 | 2845 | 3470 | 65 | 40 |
| 2PWF-20 | 20.00 | 24.40 | 0.20 | 0.29 | 5.50 | 11.00 | 2900 | 3520 | 65 | 40 |
| 2PWF-25 | 20.00 | 24.40 | 0.25 | 0.36 | 7.50 | 15.00 | 2915 | 3520 | 65 | 40 |
| 2.5PWF-6 | 20.00 | 24.40 | 0.06 | 0.90 | 2.20 | 4.00 | 2840 | 3470 | 65 | 40 |
| 2.5PWF-6A | 10.00 | 12.20 | 0.06 | 0.09 | 1.50 | 3.00 | 2845 | 3470 | 65 | 40 |
| 2.5PWF-6B | 5.00 | 6.10 | 0.06 | 0.09 | 1.50 | 3.00 | 2840 | 3460 | 65 | 32 |
| 2.5PWF-10 | 10.00 | 12.20 | 0.06 | 0.09 | 1.50 | 3.00 | 2840 | 3470 | 65 | 40 |
| 2.5PWF-20 | 20.00 | 24.40 | 0.06 | 0.09 | 2.20 | 4.00 | 2840 | 3470 | 65 | 40 |
| 3PWF-6 | 30.00 | 36.60 | 0.06 | 0.09 | 4.00 | 7.50 | 2870 | 3500 | 80 | 50 |
| 3PWF-10 | 30.00 | 36.60 | 0.10 | 0.15 | 4.00 | 7.50 | 2870 | 3500 | 80 | 50 |
| 3PWF-20 | 30.00 | 36.60 | 0.20 | 0.29 | 5.50 | 11.00 | 2900 | 3520 | 80 | 50 |
| 3PWF-25 | 30.00 | 36.60 | 0.25 | 0.36 | 7.50 | 15.00 | 2915 | 3520 | 80 | 50 |
