01 Series 1500GPH Bilge Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

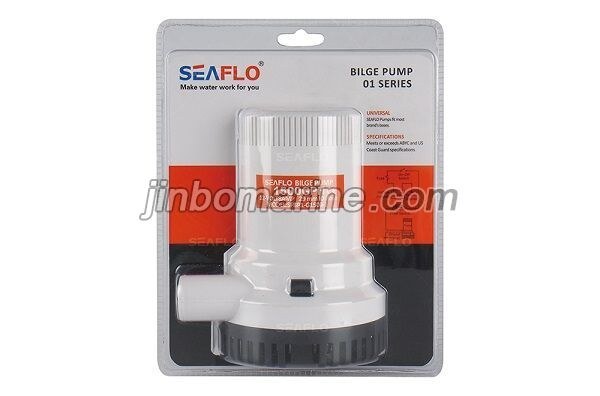

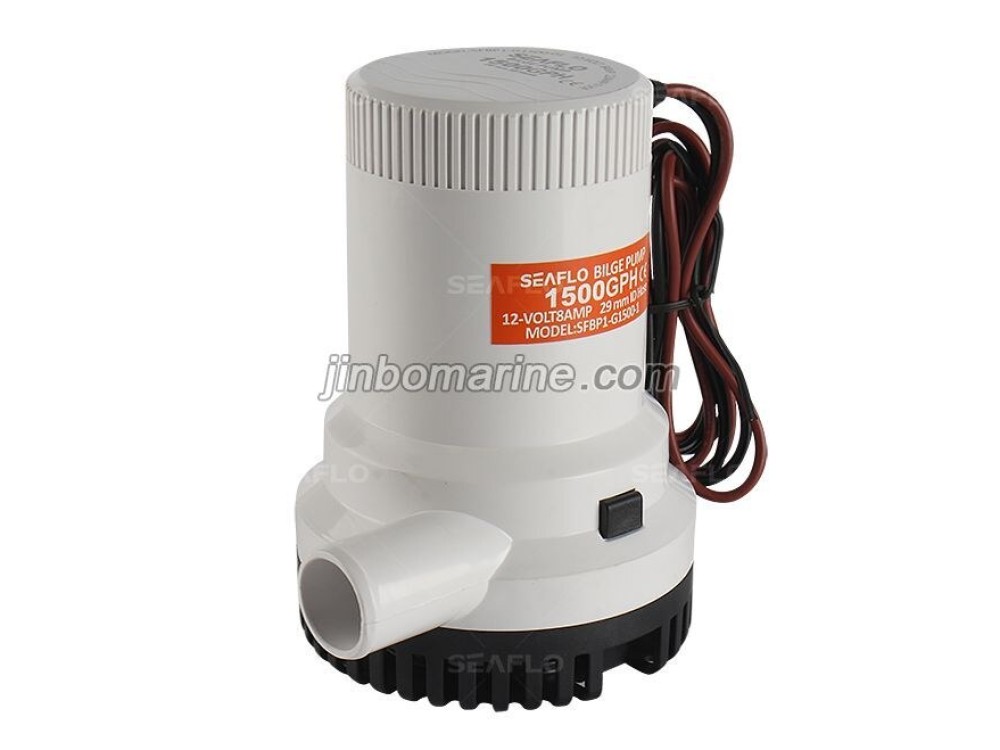

01 Series 1500GPH Bilge Pump

SEAFLO non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.

STANDARD PUMP CONFIGURATIONS

Model FlowRate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G1500-01 1500 GPH 12V 8.0 A 12.0 A 16' (5m) 3' (1m) 1-1/8" 1.13/1.21 kg
SFBP2-G1500-01 1500 GPH 24V 4.0 A 7.0 A 16' (5m) 3' (1m) 1-1/8" 1.13/1.21 kg

PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

12 7.1 1308 4950 0
12 5.6 976 3694 0.5
12 8 865 3274 1
12 5.8 688 2604 1.5
12 9 840 3179 2
12 6.1 596 2256 2.5
12 6.2 570 2157 3
12 6.3 538 2036 3.5

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

13.6 8.1 1427 5401 0
13.6 8.2 963 3645 1
13.6 9 906 3429 2
