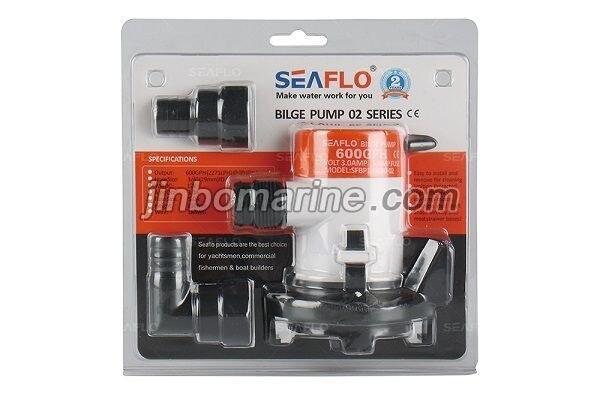

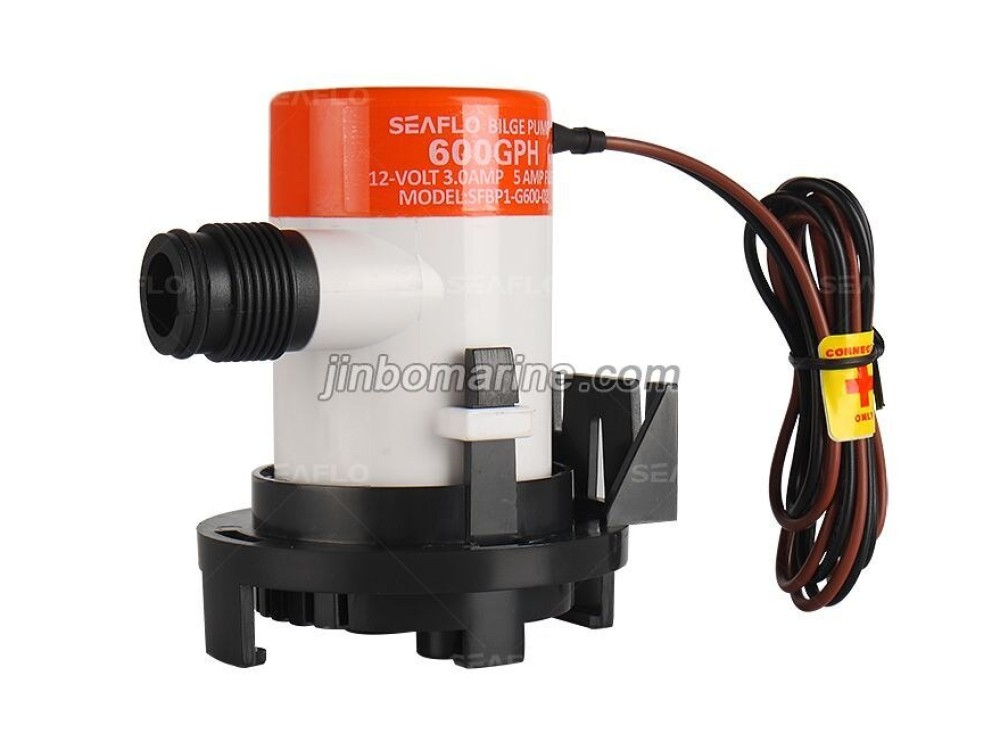

02 Series 600GPH Bilge Pump
Like our 01-series, this pump is normally activated by a panel or float switch. However, this custom strainer allows the pump to be mounted to a bulkhead or transom =, as well as normal bilge mounting. One type offers a barbed output, while the other is threaded in order to be flexible to your specific application.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G600-02 | 600 GPH | 1 2V | 2.5 A | 4.0 A | 9' (3m) | 3' (1m) | 3/4" | 0.22/0.33 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 12 | 1.7 | 516 | 1953 | 0 |
| 12 | 1.7 | 493 | 1866 | 0.4 |
| 12 | 1.7 | 462 | 1749 | 0.8 |
| 12 | 1.9 | 428 | 1620 | 1.2 |
| 12 | 1.9 | 336 | 1272 | 1.6 |
| 12 | 2.1 | 258 | 977 | 2 |
| 12 | 2.3 | 215 | 814 | 2.4 |
