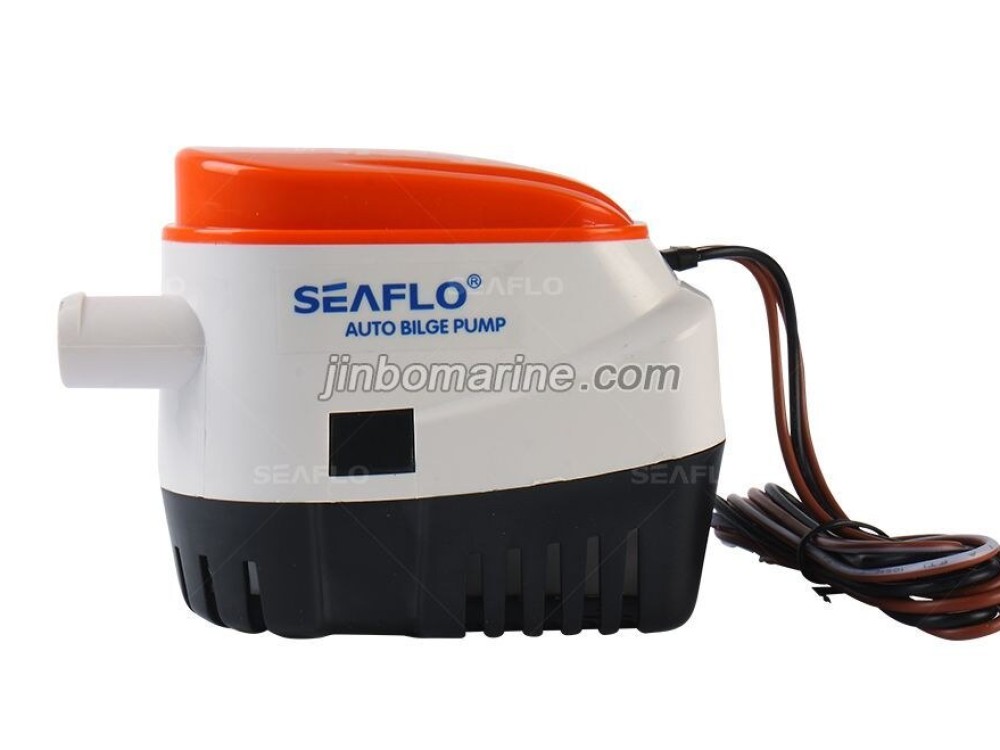

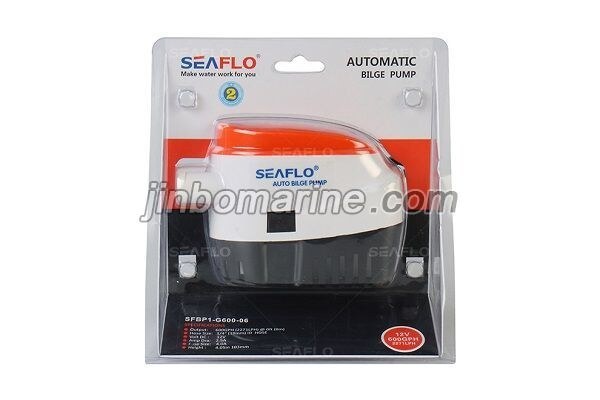

06 Series 600GPH Bilge Pump
06 Series 600GPH Bilge Pump All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is remo...
Loading product images...
06 Series 600GPH Bilge Pump
PDF Datasheet
We can supply according to your requirement.
06 Series 600GPH Bilge Pump
All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G600-06 | 600 GPH | 12V | 2.5 A | 4.0 A | 8.2' (2.5m) | 3' (1m) | 3/4" | 0.47/0.52 kg |
| SFBP2-G600-06 | 600 GPH | 24V | 1.5 A | 3.0 A | 8.2' (2.5m) | 3' (1m) | 3/4" | 0.47/0.52 kg |
PERFORMANCE
600GPH
| Voltage(V) | Current(A) | Flow | Head(M) | |
| GPH | LPH | |||
| 12 | 2.1 | 510 | 1930 | 0 |
| 12 | 2.1 | 485 | 1836 | 0.4 |
| 12 | 2.1 | 435 | 1646 | 0.8 |
| 12 | 2.2 | 375 | 1419 | 1.2 |
| 12 | 2.2 | 260 | 984 | 1.6 |
| 12 | 2.2 | 225 | 852 | 2 |
