07 Series 750GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

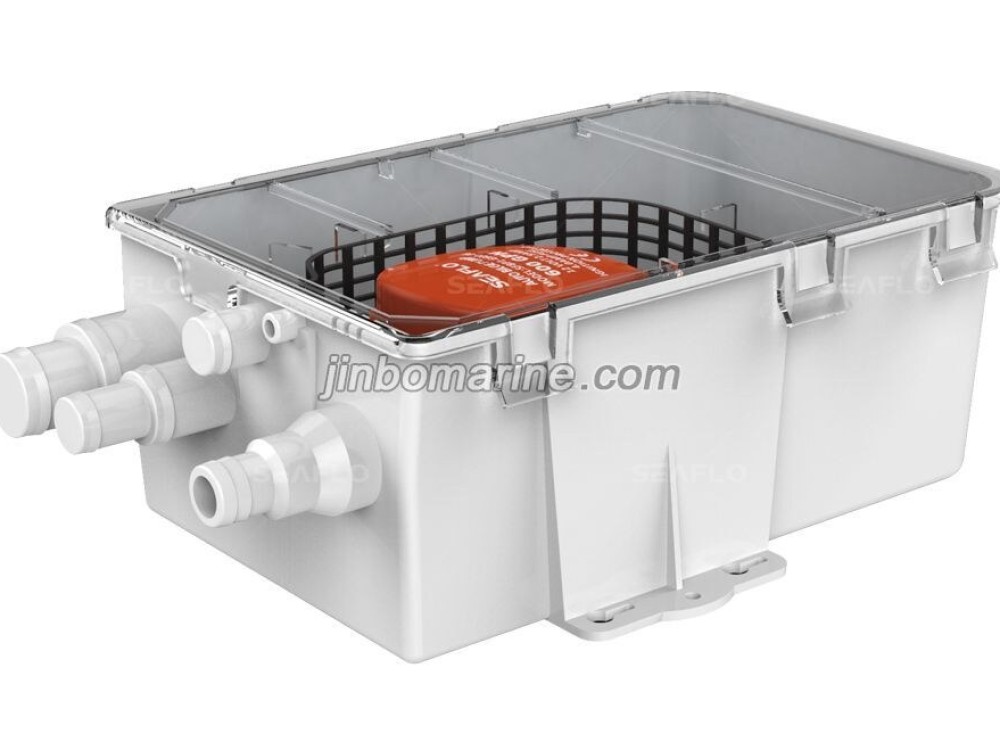

07 Series 750GPH Bilge Pump

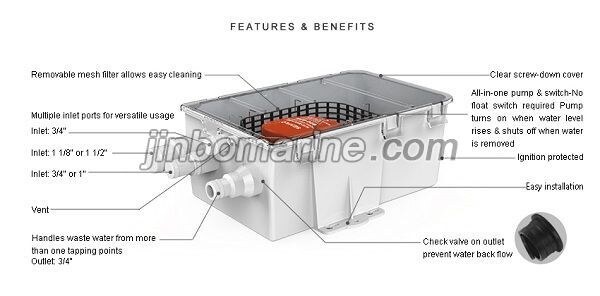

All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed. SEAFLO shower sump pump system with multiple inlet ports for versatile usage. Clear screw-down cover and removable mesh filter for easy replacement or in the event that the pump becomes clogged with debris. Check valve on outlet prevent water back flow.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G750-07 | 750 GPH | 12V | 3.0 A | 5.0 A | 9' (3m) | 3' (1m) | 3/4" | 1.17/1.35 kg |
| SFBP2-G750-07 | 750 GPH | 24V | 1.6 A | 3.0 A | 9' (3m) | 3' (1m) | 3/4" | 1.17/1.36 kg |
PERFORMANCE
750GPH
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
| GPH |
LPH |
|||
| 12 | 2.6 | 690 | 2612 | 0 |
| 12 | 2.6 | 680 | 2574 | 0.4 |
| 12 | 2.7 | 620 | 2347 | 0.8 |
| 12 | 2.7 | 560 | 2120 | 1.2 |
| 12 | 2.8 | 430 | 1628 | 1.6 |
| 12 | 2.8 | 370 | 1400 | 2 |
| 12 | 2.8 | 320 | 1211 | 2.4 |
