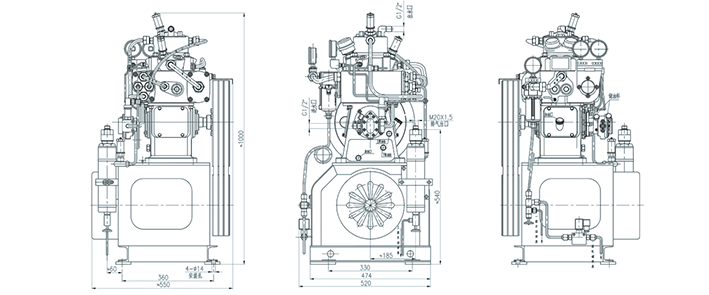

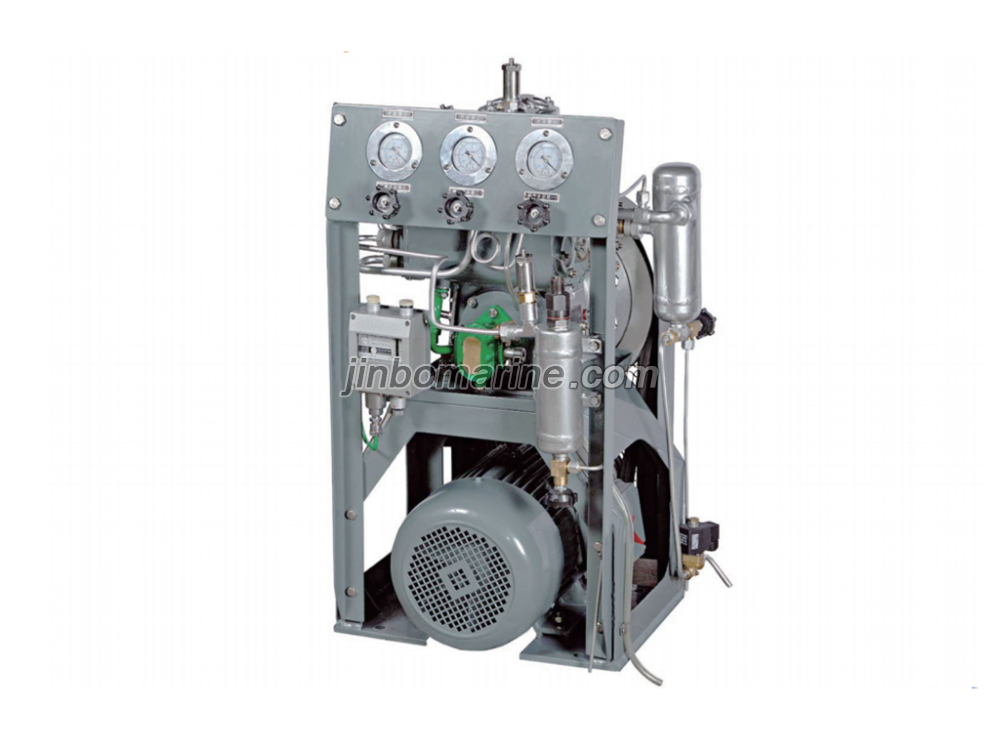

1-0.27/150B Vertical Navy Marine High Pressure Water Cooled Air Compressor
Description: 1. Adopt three-stage compression and water cooling. Mainly used for navy ship projects; 2. High and low pressure automatic start and stop, water pressure c...
Loading product images...
1-0.27/150B Vertical Navy Marine High Pressure Water Cooled Air Compressor
PDF Datasheet
We can supply according to your requirement.
Description:
1. Adopt three-stage compression and water cooling. Mainly used for navy ship projects;
2. High and low pressure automatic start and stop, water pressure control, automatic unloading and sewage discharge;
3. Obtain the classification society factory type approval and provide the classification society certification;
4. Customized according to customer requirements;
5. Vertical structure suitable for tighter spaces
Techincal data:
| No. | Model | Volume flow m3/min | Exhaust pressure MPa | Power kW | Frequency HZ | Rated speed r/min | Weight kg | L x W x H mm |
| 1 | CZ-0.41/200B | 0.41 | 19.6 | 11 | 50/60 | 1470 | 320 | 600x600x1100 |
| 2 | CZ-0.42/150B | 0.42 | 14.7 | 11 | 50/60 | 1470 | 320 | 600x600x1100 |
| 3 | CZ-0.43/60B | 0.43 | 6 | 11 | 50/60 | 1470 | 290 | 600x600x1100 |
| 4 | 1-0.27/150B | 0.27 | 14.7 | 7.5 | 50/60 | 970 | 280 | 600x600x1100 |
