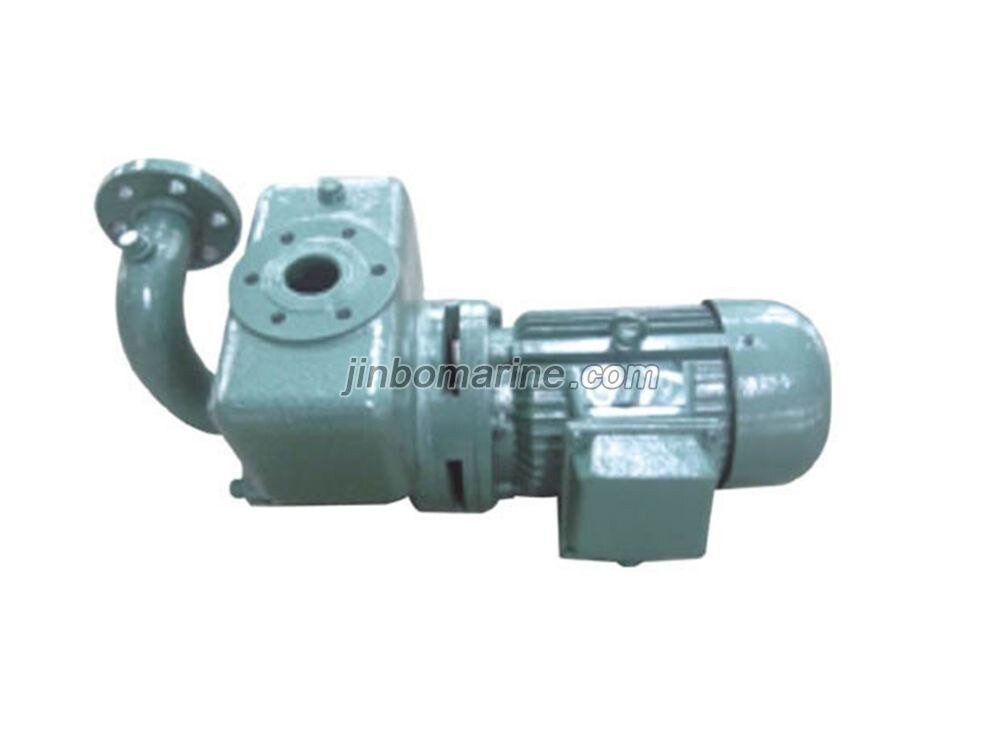

1.5CWX-3 Series Self-Priming Vortex Pump
- Category:Vortex Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
1.5CWX-3 Vortex pump for ship installations heart pumping water, washing and sanitation used in freshwater and seawater.
Technical data:
| Model |
Capacity m3/h |
Head n |
Speed r/min |
NPSH M |
Suction head m |
Shaft power |
Efficiency % |
Motor power kw |
Wight kg |
| 1.5CWX-2 | 3 | 40 | 2900 | 4 | 6 | 2 | 16.3 | 2.2 | 45 |
| 1.5CWX-3 | 6.5 | 35 | 2900 | 4 | 6 | 2.3 | 26.9 | 3 | 50 |
| 1.5CWX-4 | 10 | 35 | 2900 | 4 | 6 | 2.5 | 38.1 | 4 | 65 |
| 1.5CWX-2A | 3 | 40 | 2900 | 4 | 6 | 2 | 16.8 | 2.2 | 63 |
| 1.5CWX-3A | 6.5 | 35 | 2900 | 4 | 6 | 2.3 | 26.9 | 3 | 68 |
| 1.5CWX-4A | 10 | 35 | 2900 | 4 | 6 | 2.5 | 38.1 | 4 | 84 |
Perfrrmance parameters in case of power supply freguency of 60Hz, 3P. 440V:
| Model |
Capacity m3/h |
Head n |
Speed r/min |
NPSH M |
Suction head m |
Shaft power |
Efficiency % |
Motor power kw |
Wight kg |
| 1.5CWX-2 | 3.6 | 57 | 3500 | 4.5 | 5.2 | 3.43 | 16.3 | 4 | 65 |
| 1.5CWX-3 | 7.8 | 50 | 3500 | 4.5 | 5.2 | 3.95 | 26.9 | 5.5 | 82 |
| 1.5CWX-4 | 12 | 50 | 3500 | 4.5 | 5.2 | 4.29 | 38.1 | 5.5 | 86 |
| 1.5CWX-2A | 3.6 | 57 | 3500 | 4.5 | 5.2 | 3.43 | 16.8 | 4 | 83 |
| 1.5CWX-3A | 7.8 | 50 | 3500 | 4.5 | 5.2 | 3.95 | 26.9 | 5.5 | 100 |
| 1.5CWX-4A | 12 | 50 | 3500 | 4.5 | 5.2 | 4.29 | 38.1 | 5.5 | 105 |
