10 inch LCD Navigational Sounder DS2008
DS2008, navigation echo sounder with a 10.4 inch, high resolution graphic LCD, continuously dispaly echo graphics on the LCD along with complete navigational details. External connectors ar...
Loading product images...

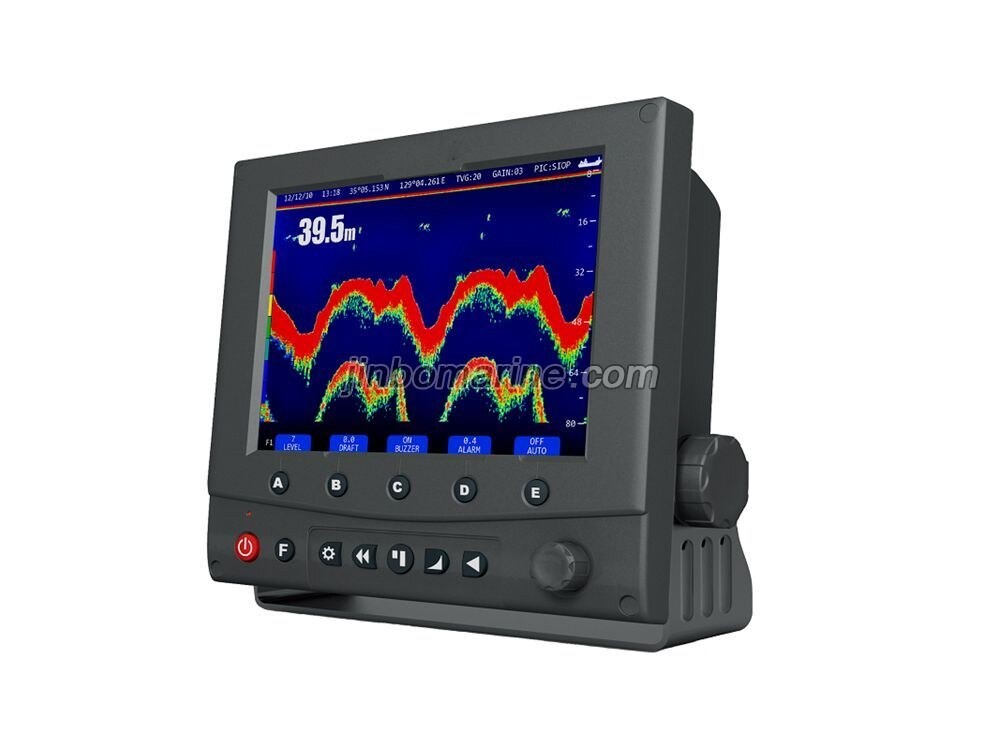

10 inch LCD Navigational Sounder DS2008
PDF Datasheet
We can supply according to your requirement.
China 10 inch LCD Navigational Sounder DS2008 :
DS2008, navigation echo sounder with a 10.4 inch, high resolution graphic LCD, continuously dispaly echo graphics on the LCD along with complete navigational details.
External connectors are provided for printer, and NMEA in/output.
DS2008 contains history memory that stores depth, time and other available navigation data continuously for the preceding 20 hours.
Dual channels echo sounder display DS2008S and DS2008H can display depth at the FORE and AFT positions simultaneously.
Features:
10.4 inch color TFT LCD
50 kHz / 200 kHz transducer
20 hours history data record
NMEA0183 Depth data output
Printer interface forDPU-414 printer to print out date/time/location/depth information
Compatible with most echo sounder transducer in the market
50 kHz / 200 kHz transducer
20 hours history data record
NMEA0183 Depth data output
Printer interface forDPU-414 printer to print out date/time/location/depth information
Compatible with most echo sounder transducer in the market
ITEM SPECIFICATIONS ITEM SPECIFICATIONS |
| Display 10.4” color LCD with adjustable backlight Auto Range Yes |
| Pixel Number 640×480 Alarm Shallow water, Power drop |
| Power Supply DC24V (18~33V) Power Alarm Power lost alarm |
| Dimension 264(H)×270(W)×93(D)mm Alarm Media Buzzer, Flashing |
| Time Scale 30s interval DS2008: 200kHz only × 1 channel time bar on LCD |
| DS2008: 50kHz only × 1 channel Picture Speed 6 steps plus freeze |
| DS2008H: 200kHz × 2 channels NMEA Outputs NMEA0183 (DPT) |
| Model |
| DS2008S: 50&200kHz, 2 channels NMEA Input GPS Position (GGA) |
| DS2008 & DS2028: 500W Echo color 7 colors |
| Power Output |
| DS2020: 300W Language English, Chinese |
| Mounting Protection Display IP23(IEC60945) |
| Dimensions |
| 261 × 247 mm |
| Mounting Desk/Ceiling/Flush |
| Depth Range 0.4m to 800m Depth repeater IR261 |
| Accuracy Error less ±1.0% of range |
| Options |
| Printer DPU-414 |
| History Storing 20 hours history data Classification Made to IMO performance standard |
