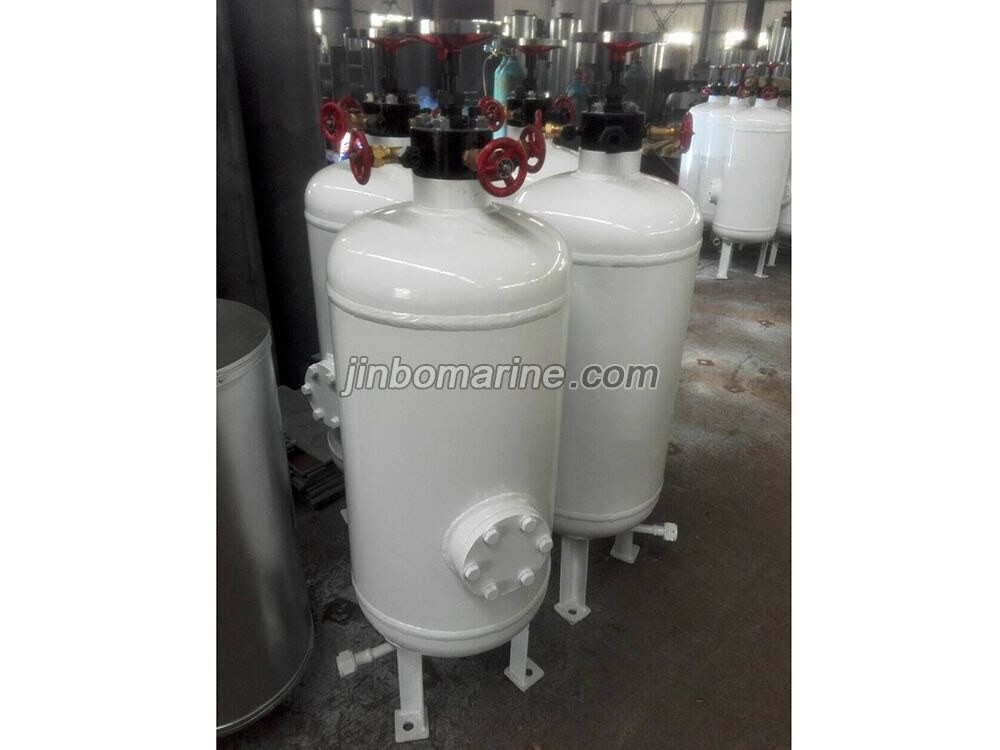

160L Vertical Service Air Reservior
160L Vertical Service Air Reservior: Marine Low-pressure air receiver is mainly used to store compressed air, and supply start up or air whistle for main engine and auxiliary engi...
160L Vertical Service Air Reservior
PDF Datasheet
We can supply according to your requirement.
160L Vertical Service Air Reservior:
Marine Low-pressure air receiver is mainly used to store compressed air, and supply start up or air whistle for main engine and auxiliary engine.
A-type is made up of bottle valve and steel body. Body has handhole (or manhole) foe easy wash and examination, and bottle valve set up inlet/outlet valve, safety valve , pressure gauge and pressure gauge valve, drain valve etc.
B-type is made up of steel body, shell cover, manhole for easy examination and repair set in shell cover, inlet/outlet valve, safety valve, pressure gauge and pressure gauge valve, drain valve, installation seat ect.
Notice:
The specification is according to its volume and working pressure, you can choose as CB/T493-1998. You also can give us parameter concerned, we will provide non-standard products.
Technical data:
| Type | Type remark | Capacity | Working Pressure | Internal Diameter | Height | Weight |
| Mpa | mm | mm | kg | |||
| A | A0.05-1.0 | m3 | 1 | 300 | 1050 | 70 |
| A0.10-1.0 | 0.1 | 400 | 1270 | 125 | ||
| A0.16-1.0 | 0.16 | 400 | 1750 | 155 | ||
| A0.25-1.0 | 0.25 | 500 | 1760 | 180 | ||
| A0.32-1.0 | 0.32 | 500 | 2170 | 248 | ||
| A0.40-1.0 | 0.4 | 600 | 1865 | 250 | ||
| A0.05-3.0 | 0.05 | 3 | 300 | 1050 | 100 | |
| A0.08-3.0 | 0.08 | 300 | 1360 | 120 | ||
| A0.10-3.0 | 0.1 | 400 | 1270 | 165 | ||
| A0.16-3.0 | 0.16 | 400 | 1750 | 215 | ||
| A0.25-3.0 | 0.25 | 500 | 1760 | 295 | ||
| A0.32-3.0 | 0.32 | 500 | 2100 | 345 | ||
| A0.40-3.0 | 0.4 | 600 | 1865 | 410 | ||
| A0.50-3.0 | 0.5 | 600 | 2270 | 450 |
