Marine Equipment
2.4M Steel Buoy, Navigation Buoy
Specification JB2.4 Remark Beacon light power Solar cells, and 12 VDC or 6 VDC (optional) Optional ...
Loading product images...

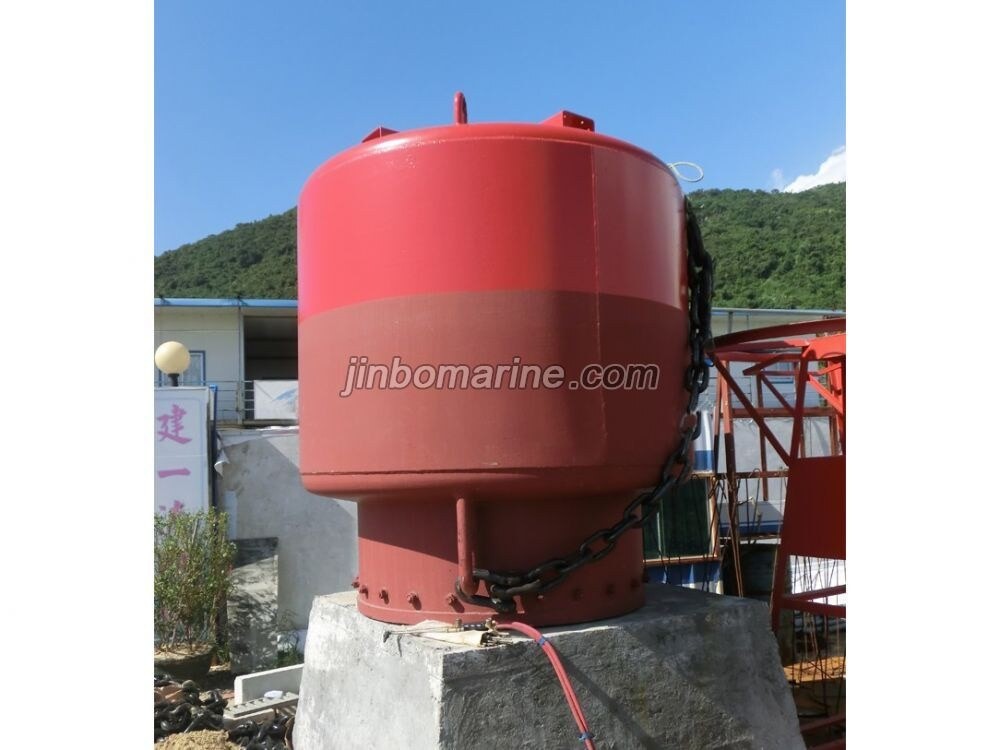

2.4M Steel Buoy, Navigation Buoy
PDF Datasheet
We can supply according to your requirement.
China 2.4M Steel Buoy, Navigation Buoy:
| Specification | JB2.4 | Remark |
| Beacon light power | Solar cells, and 12 VDC or 6 VDC (optional) | Optional |
| Light quality | On the left bank: green (white light), single or more flash flash The right side: red, single or double flash flash | |
| Range | 2-10Km (optional) | Optional |
| Remote telemetry | Remote wireless remote telemetry (with computer software installation) (optional) | Optional |
| Synchronous flash | GPS signal coordination and synchronization of consistency or less 0.2 ms (optional) | Optional |
| Diameter of Buoy (m) | 2.4 | |
| Material | ship plate | |
| Total Height(m) | 7.6 | |
| Height of Freeboard(m) | 1 | |
| Height of Lamp Standing Part(m) | 4.5 | |
| Max Swing Angle(°) | ≤15 | |
| Swing Cycle(s) | 3～5 | |
| Max Buoyancy(t) | 7 | |
| Total Weight(m) | 1.9 | |
| Embalmed | Paint spraing, scarifical andode | |
| Anchor Chain(mm) | 34 | |
| Sinker/Anchor block(t) | 3～6 | |
| Depth(m) | 10～50 |
