20DPFR/FEQ Marine Deep Frying Pan

Request a Quote Not what you need, please send your RFQs via Email.

Details

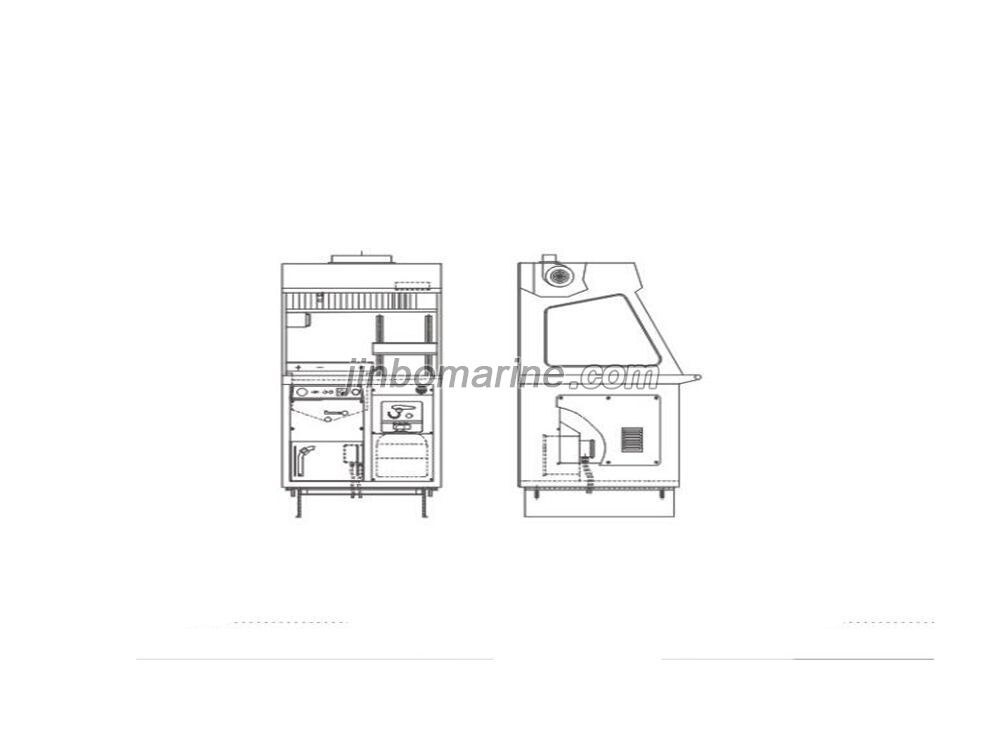

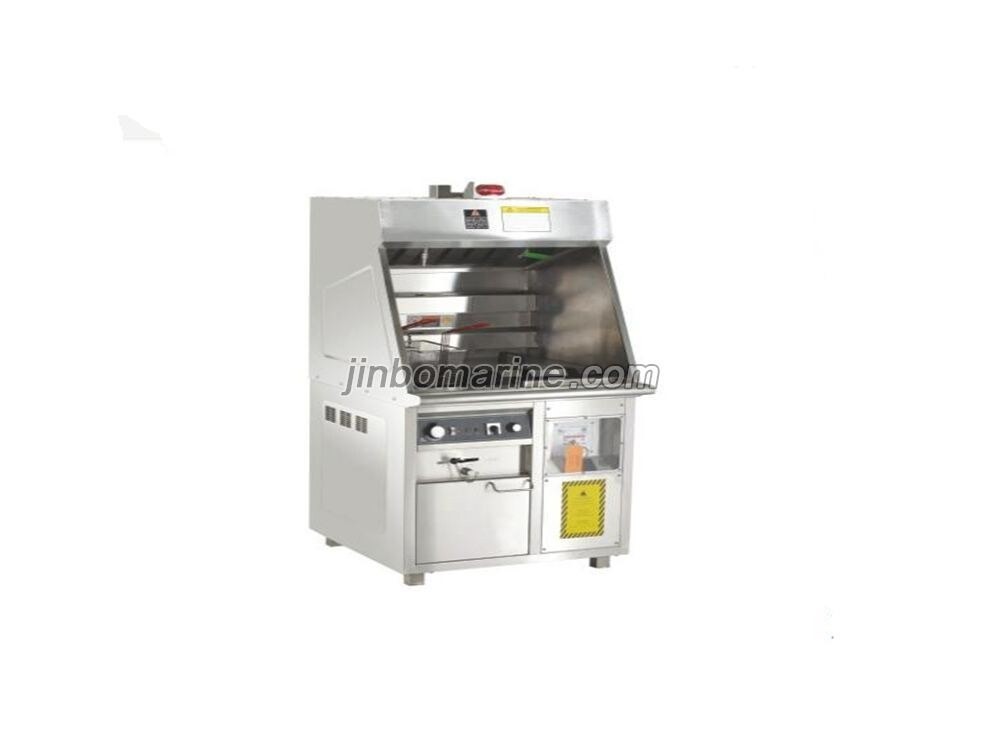

20DPFR/FEQ Marine Deep Frying Pan

1.Complete stainless steel execution.
2.Set up automatic detection, fire-fighting, alarm and automatically cut off the power supply device.
3.Start the fire extinguishing system emergency manually.
4.Set control and contact controlling power output.
5.With thermostat set work, limit the warm fault alarm function.
6.With oil barrels, a pan oil discharge valve.
7.With handdrails.
8.Products comply with SOLAS specifications, through the CCS/ABS/GL/EC/ certification.

20DPFR/FEQ Marine Deep Frying Pan Specification


Model Voltage Capacity Rating Size(WxDxH)mm Weight
10DPFR/FEQ 380-415V/3P/50Hz
440-480V/3P/60Hz
10L 6Kw 450x915x1755 125kg
20DPFR/FEQ 380-415V/3P/50Hz
440-480V/3P/60Hz
20L 9Kw 800x915x1755 160kg
DRG-6M 380-415V/3P/50Hz
440-480V/3P/60Hz
20L 6Kw 900x700x1700 190kg
DRG-9M 380-415V/3P/50Hz
440-480V/3P/60Hz
2x12L 9Kw 1150x700x1700 230kg
