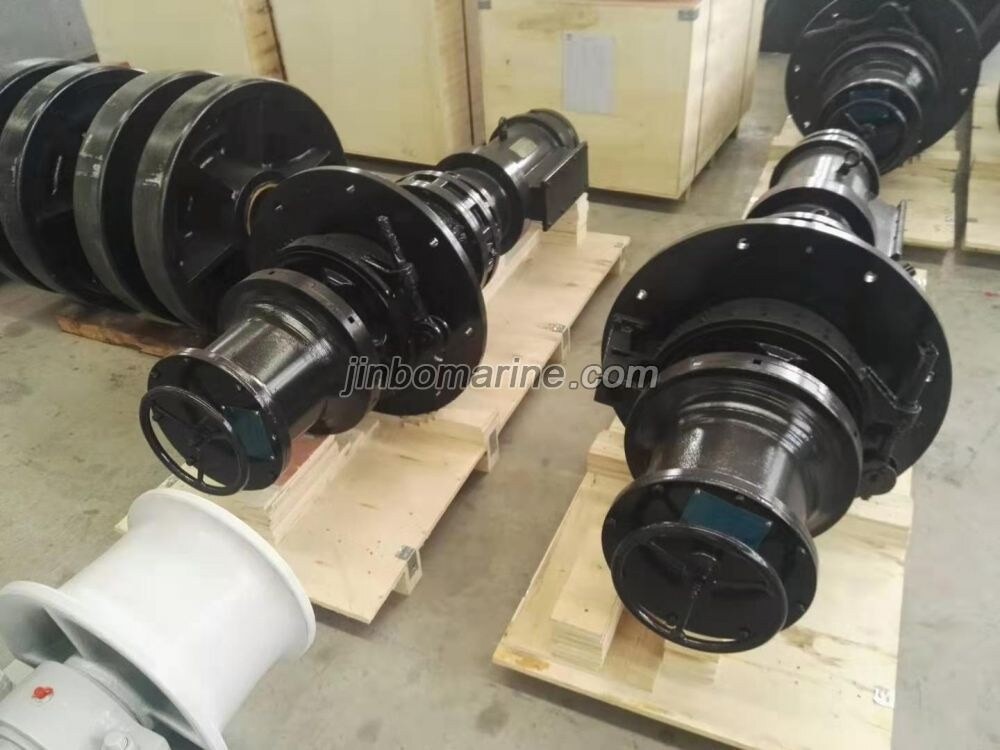

22mm Electric Anchor Capstan

2.1 Anchor chain dia. φ22 mm（AM2）

2.2 Working load 20.6 kN

2.3 Nominal anchor retaking speed 9 m/min

2.4 Overload pull 30.9 kN

2.5 Holding load 126kN

2.6 Mooring load 10kN

2.7 Nominal mooring speed 9 m/min

2.8 Steel rope dia. φ11 mm

2.9 E-motor type JZ2-H32-4/12

Power 6/2.5kW

Speed 1350/390 r/min

Duty 400 V/50Hz
