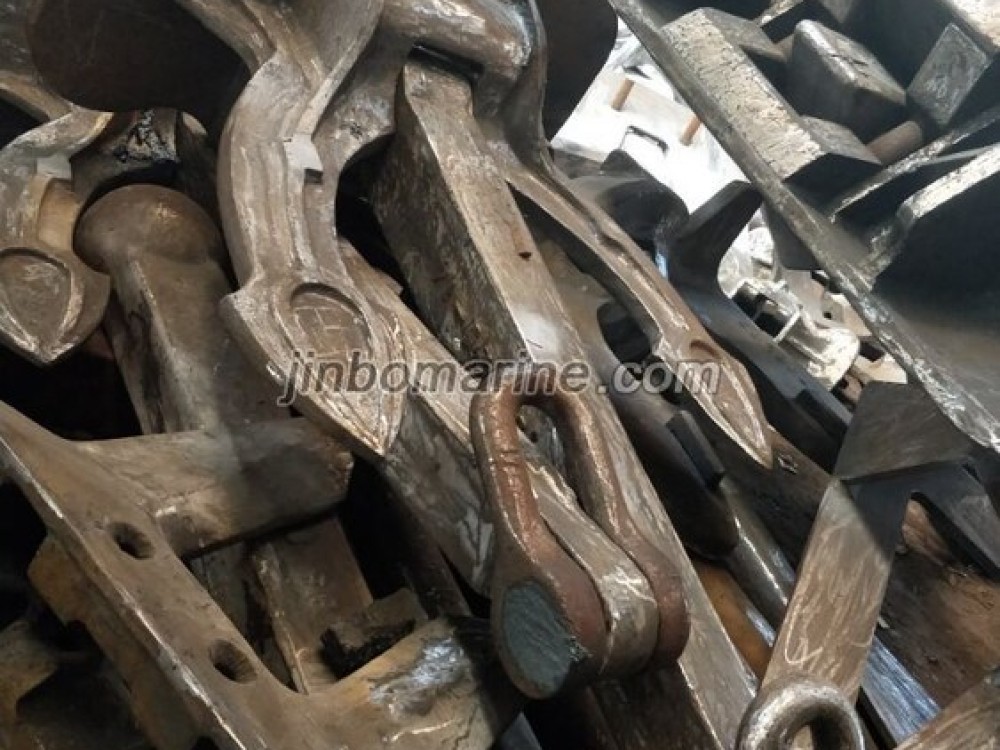

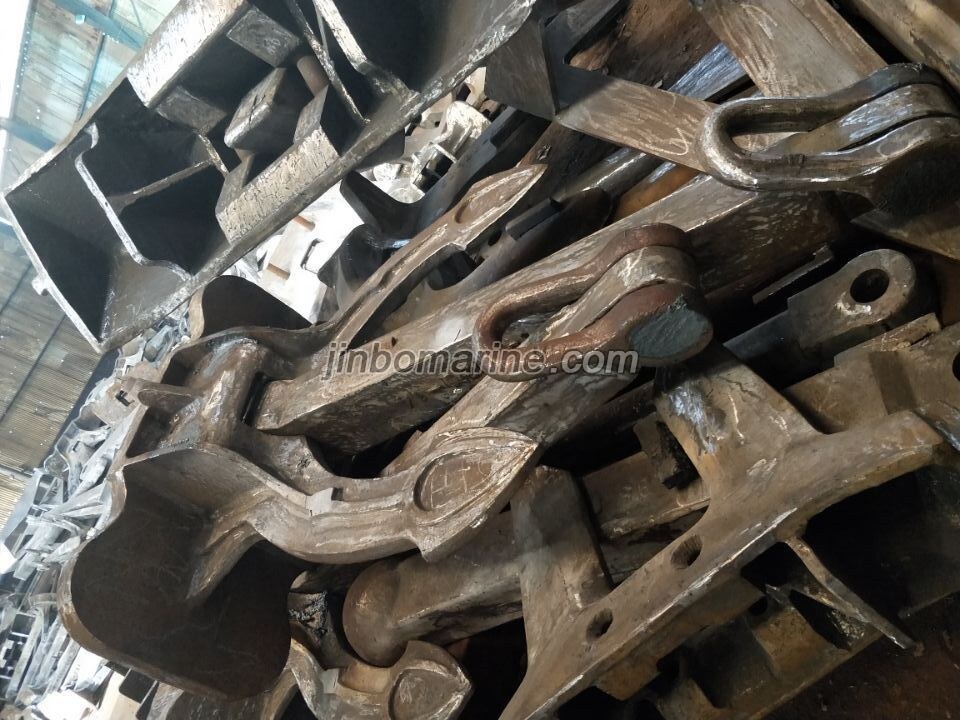

2640KGS SPEK Anchor

Request a Quote Not what you need, please send your RFQs via Email.

Details

China 2640KGS SPEK Anchor:

Weight: 2640KGS.

Finish: Black Painting.

Certificate: LR,BV, ABS, NK, DNVGL.

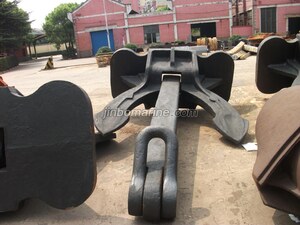

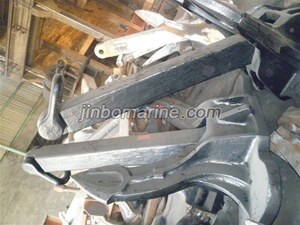

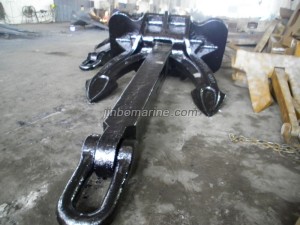

Other size of SPEK Anchor

Nominal Weight
(KG)
Size(mm)
A B C D F
100 672 373 112 515 250
150 770 428 128 590 290
180 846 470 140 640 300
240 900 500 150 690 358
300 990 550 166 760 398
360 1065 600 180 828 431
420 1080 600 180 828 446
500 1170 650 196 900 446
570 1170 650 196 900 486
660 1260 700 210 962 486
780 1355 750 225 1032 547
900 1440 800 240 1100 573
1020 1530 850 252 1170 591
1140 1620 900 268 1240 620
1290 1710 900 268 1240 640
1440 1710 950 279 1300 671
1590 1710 950 279 1378 689
1740 1800 1000 300 1454 704
1920 1850 1050 312 1454 717
2100 1890 1050 312 1454 736
2280 2010 1050 312 1514 764
2460 2010 1100 324 1584 794
2640 2070 1150 352 1584 804
2850 2070 1150 352 1650 820
3060 2160 1200 360 1650 834
3300 2155 1200 360 1650 834
3540 2350 1200 360 1850 880
3780 2430 1350 393 1850 917
4050 2430 1350 393 1926 930
4320 2520 1400 413 1926 930
4590 2520 1400 413 1926 931
4890 2520 1400 413 2000 954
5250 2610 1450 414 2000 964
5610 2610 1450 414 2060 981
6000 2700 1500 446 2060 1006
6450 2700 1500 446 2138 1028
6900 2790 1550 456 2138 1034
7350 2790 1550 456 2138 1062
7800 2920 1550 456 2332 1126
8300 3060 1700 510 2332 1156
8700 3060 1700 510 2332 1169
9300 3060 1700 510 2332 1188
9900 1700 1700 510 2332 1188
10500 1770 1770 531 2440 1212
11100 1770 1770 531 2440 1237
11700 1770 1770 531 2440 1279
12300 1910 1910 573 2632 1279
12900 1910 1910 573 2632 1316
13500 1910 1910 573 2632 1353
14100 1910 1910 573 2632 1369
14700 2050 2050 615 2824 1369
15400 2050 2050 615 2824 1387
16100 2050 2050 615 2824 1387
16900 2120 2120 636 2922 1415
17800 2120 2120 636 2922 1431
18800 2190 2190 657 3018 1461
20000 2190 2190 657 3018 1493
26000 2360 2360 716 3258 1628
