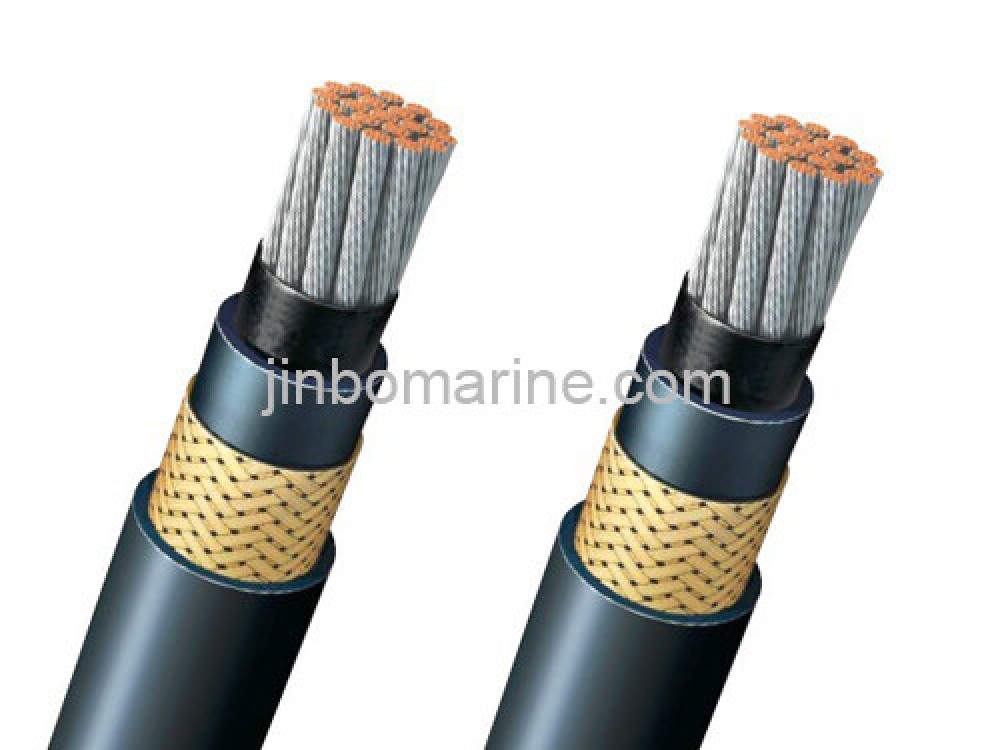

2KV SPBS Offshore Power(Distribution) Cable

Cable Type 2KV SP(HD), SPA(HD), SPB(HD), SPBS(HD) SP, SPA, SPB, SPBS FS-SP(HD), FS-SP...

IEEE Std 45/1580 Cable2 Photos ISO9001 Supplier

Loading product images...

Category: IEEE Std 45/1580 Cable

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

Cable Type 2KV

SP(HD), SPA(HD), SPB(HD), SPBS(HD)

SP, SPA, SPB, SPBS

FS-SP(HD), FS-SPA(HD), FS-SPB(HD), FS-SPBS(HD)

FS-SP, FS-SPA, FS-SPB, FS-SPBS

Classification	Code	Construction details
Conductor	Annealed Stranded Copper Wire
Cable Type	S	Single Conductor Distribution
Fire-resisting(Optional)	FS	Mica Tape
Insulation	P	Cross-Linked Polyolefin
Jacket	N	Flame Retardant Thermosetting Neoprene
Armor(Optional)	B	Bronze
T	Tinned Copper Wire
Outer Sheath(Optional)	S	Neoprene

IEEE 1560(2001) IEC 45(1998)

UL 1309/CSA C 22.2 NO. 245(1995)

IEEE 1202(1991)

IEC 60332-3 Category A

CSA C 22.2 NO.38(at -40℃)

IEC 60331-1(FS type Cable)

Cores: 1

Size (AWG or MCM):14 12 10 8 6 5 4 3 2 1 1/0 2/0 3/0 4/0 262 313 373 444 535 646 777 1111

The cable is fixed installation for power & lighting, voltage up to 2KV, apply for commercial marine, shipping building, MODU’S and Platform.

Flame retardant

Fire-resistant (FS Type)

Resistance to oil, abrasion, petrochemical fluid, moisture and sunlight

Excellent flexibility
