2WY 3WY Marine Oil Fired Boiler
Product Description: 2WY and 3WY horizontal threaded tube combined boiler is a welded high performance horizontal threaded tube combined boiler. Product characteristics:...
2WY 3WY Marine Oil Fired Boiler
PDF Datasheet
We can supply according to your requirement.
Product Description:

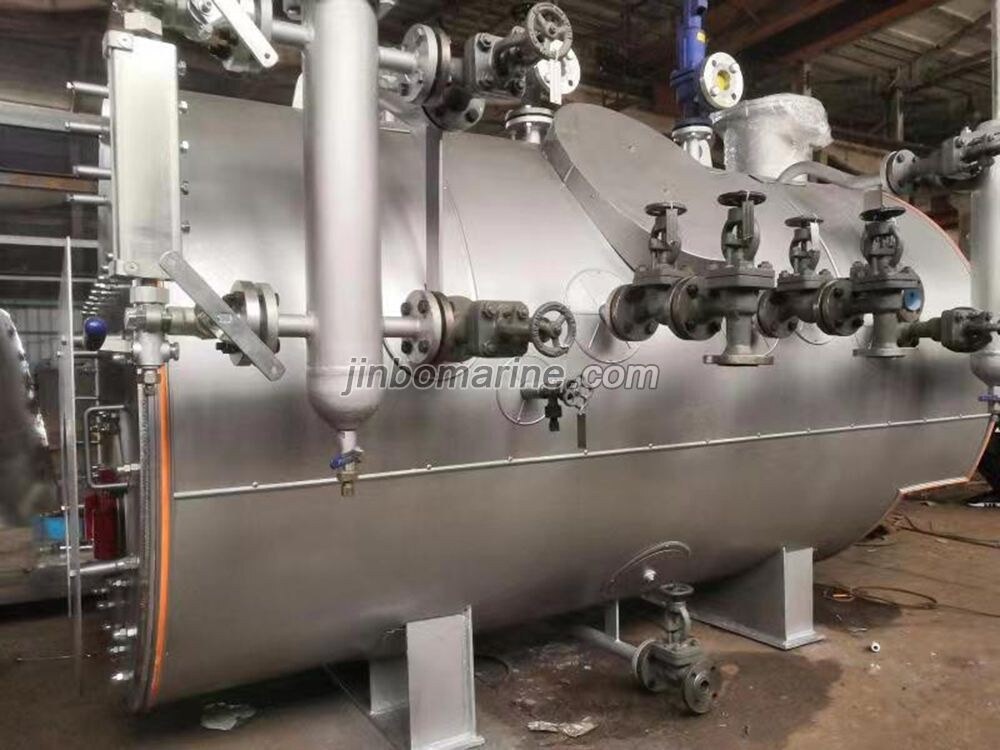

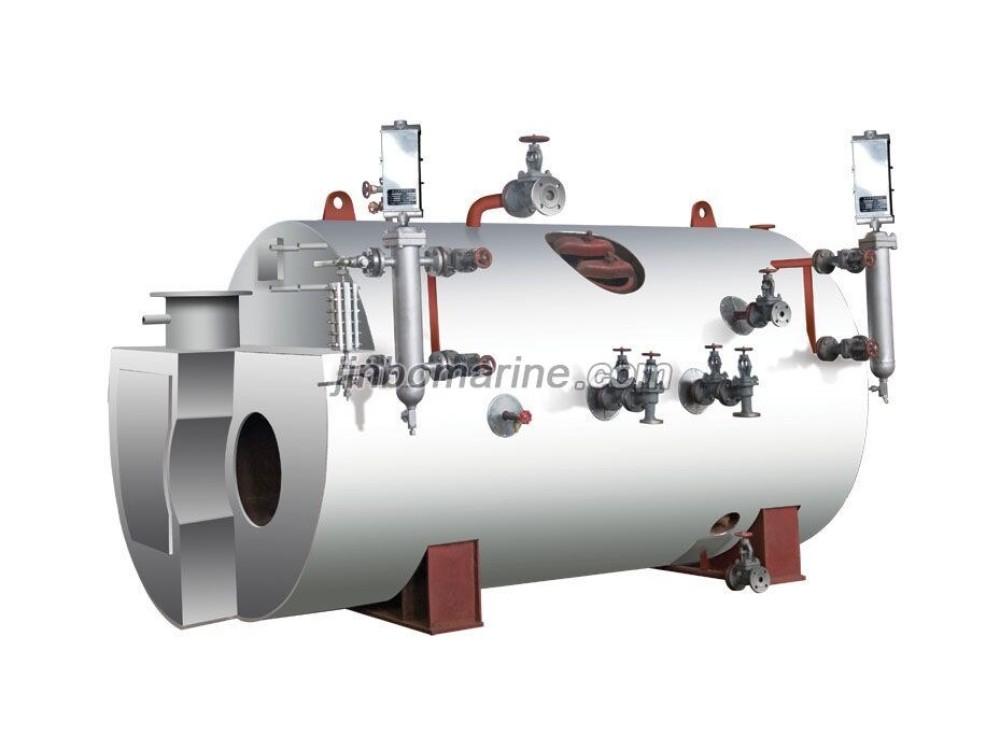

2WY and 3WY horizontal threaded tube combined boiler is a welded high performance horizontal threaded tube combined boiler.
Product characteristics:

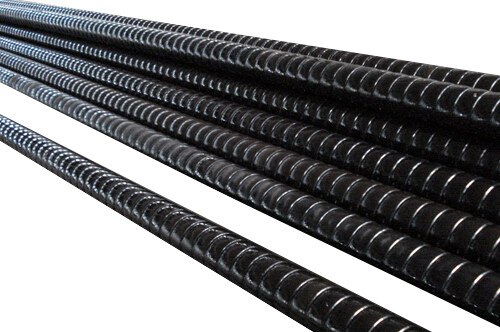

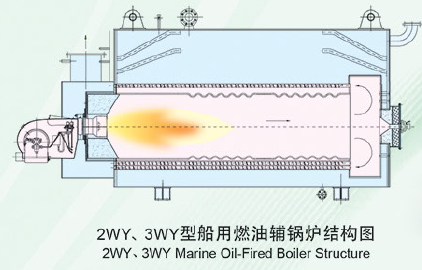

1. The round bladder is the radiation heating surface of the boiler; the special threaded tube is the convective heating surface of the fuel part.
2. The heating surface of the exhaust gas is composed of a flat tube or a threaded tube.
3. The rotating flow of flue gas is increased on the surface with threads on the flue gas side, thus improving the heat transfer coefficient.
4. There are check holes (cleaning doors) in front and back of the boiler, so the boiler is easy to clean.
5. The burner is arranged on the side of the boiler, which is very convenient for the operation and maintenance of the boiler.
Product advantages:
The boiler is suitable for ships with less steam consumption, such as cargo ships and general cargo ships. It is safe and reliable, and saves fuel. It is well received by users.
Technical data:

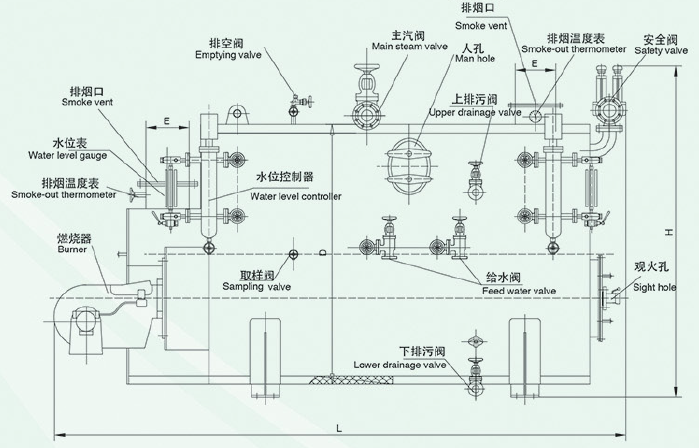

| Modle | Evaporation Capacity(kg/h) | Working Pressure (Mpa) | Dimension(mm) | |||
| L | H | D | E | |||
| 3WY0.5-0.7 | 500 | 0.7 | 2900 | 1875 | Φ1380 | 250 |
| 3WY0.7-0.7 | 700 | 3100 | 1875 | Φ1380 | 250 | |
| 2WY1.0-0.7 | 1000 | 3905 | 2155 | Φ1640 | 300 | |
| 2WY1.2-0.7 | 1200 | 4065 | 2155 | Φ1640 | 300 | |
| 2WY1.5-0.7 | 1500 | 4165 | 2355 | Φ1850 | 300 | |
| 2WY2.0-0.7 | 2000 | 4215 | 2355 | Φ1850 | 300 | |
| 2WY2.5-0.7 | 2500 | 4965 | 2730 | Φ2050 | 350 | |
| 2WY3.0-0.7 | 3000 | 5130 | 2805 | Φ2050 | 350 | |
| 3WY3.0-0.7 | 3000 | 5130 | 2940 | Φ2150 | 350 | |
| 2WY4.0-0.7 | 4000 | 5060 | 3035 | Φ2248 | 500 | |
| 2WY5.0-0.7 | 5000 | 5458 | 3035 | Φ2248 | 500 | |
