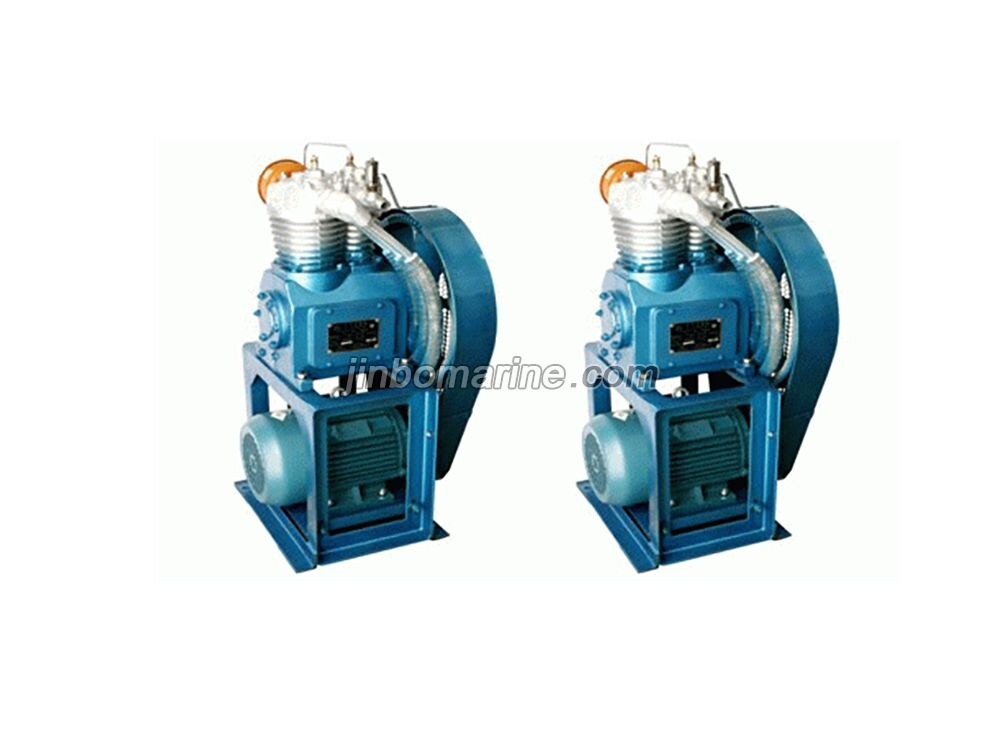

2ZF-0.34/30-2B Marine Vertical Medium Pressure Air Compressor
Model: 2ZF-0.34/30-2B Style: double row, air cooled, two stage compression piston Displacement: 0.34 m3 / min (20.4 m3 / h) The rated pressure: 3.0 MPa Product features It has sma...
2ZF-0.34/30-2B Marine Vertical Medium Pressure Air Compressor
PDF Datasheet
We can supply according to your requirement.
China 2ZF-0.34/30-2B Marine Vertical Medium Pressure Air Compressor:
Model: 2ZF-0.34/30-2B
Style: double row, air cooled, two stage compression piston
Displacement: 0.34 m3 / min (20.4 m3 / h)
The rated pressure: 3.0 MPa
Product features
It has small size, light weight, high efficiency, low noise, smooth operation especially suitable for the need of medium voltage source host started and ship. According to the needs of users of products can provide the following functions: two main for the functions of each control, temperature control, inlet pressure controller, exhaust outlet high pressure hose.
Specification
| Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension（L×W×H） | Weight | ||
| m3/h | m3/ min | MPa | r/min | kW | HP | mm | kg | |
| 2ZF-0.34/30-B | 20.4 | 0.34 | 3.0 | 600 | 5.5 | 7.5 | 940×500×850 | 210 |
| 2ZF-0.34/30-B (Vertical unit) | 586×520×1020 | 185 | ||||||
