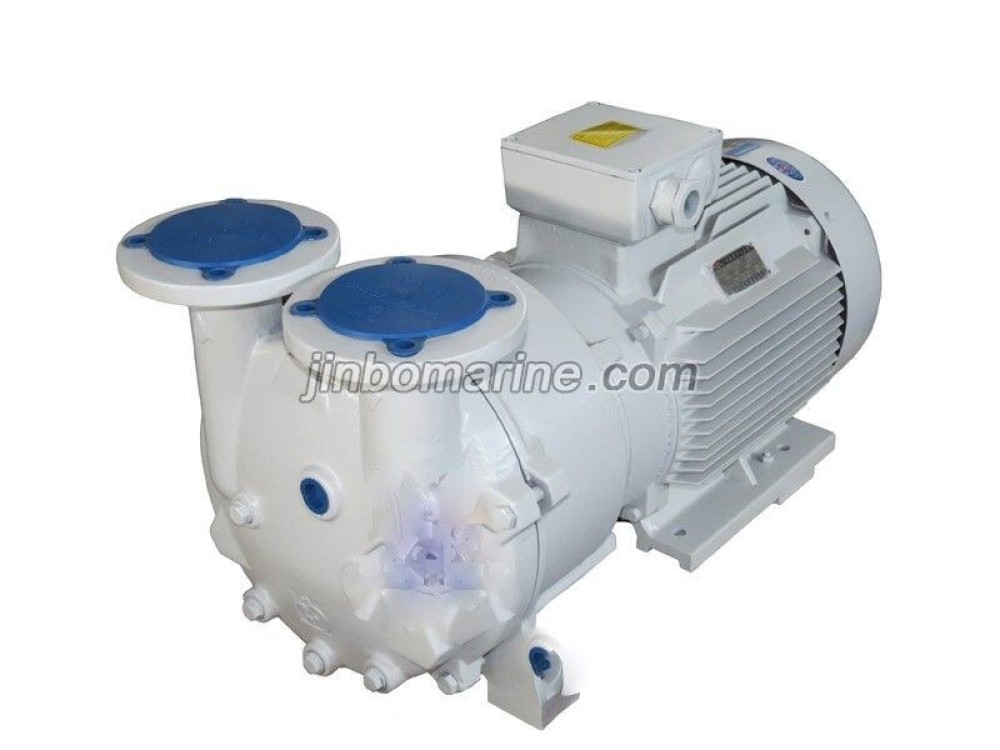

2BV Series Vacuum Pump
- Category:Vacuum Pump
- Material:Cast iron
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
2BV Series Vacuum pump
|
|||||||
| 一、Parameter | |||||||
| 一、Technical | |||||||
| Model | 2BV5161 | ||||||
| Quantity | 1台 | ||||||
| Medium | Air | ||||||
| Temperature | ≤40℃ | ||||||
| Seal | Mechancial seal | ||||||
| Extract capacity | 8.83m³/min | ||||||
| Speed | 970r.p.m | ||||||
| Max Vacuum | 3300PA | ||||||
| Outlet pressure | Slight positive pressure | ||||||
| Motor power | 15kw | ||||||
| Connection | Directly couple | ||||||
| 二、Material | |||||||
| Impeller | QT400-17:Ductile iron | ||||||
| Pump cover | QT400-17:Ductile iron | ||||||
| Pump casing | QT400-17:Ductile iron | ||||||
| Round plate | QT400-17:Ductile iron | ||||||
| Mechanical seal | Burgmann | ||||||
|
三、Motor detail |
|||||||
| Model 15KW/6级 | Speed 970rpm | ||||||
| Votalge 380V | Frequency 50Hz | ||||||
| Insulation F | IP IP54 | ||||||
