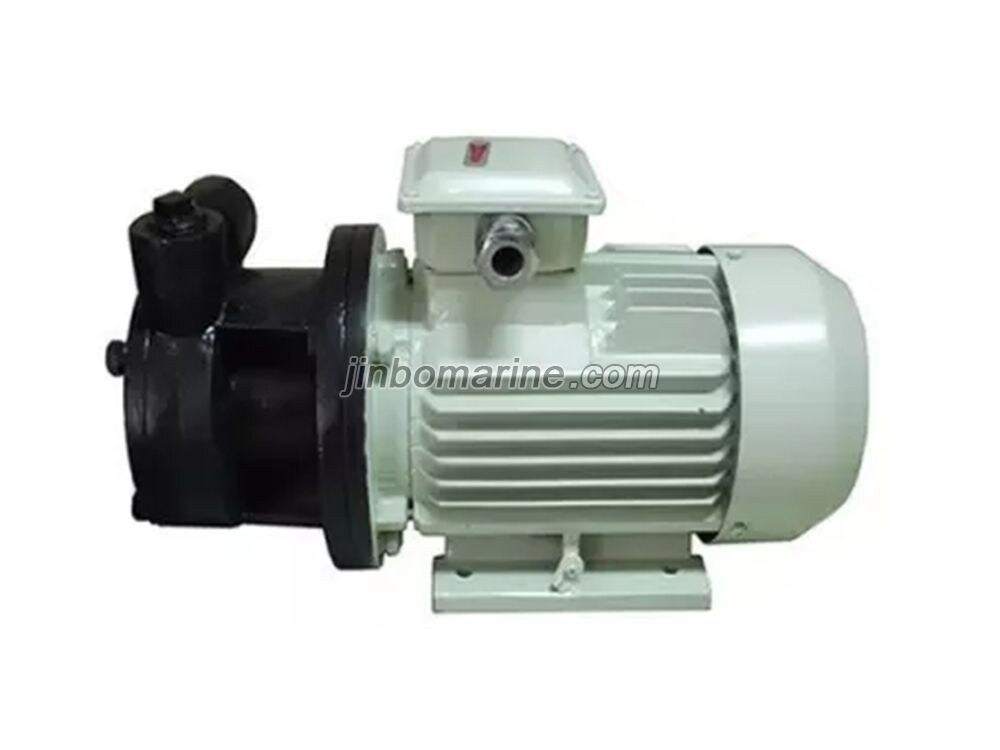

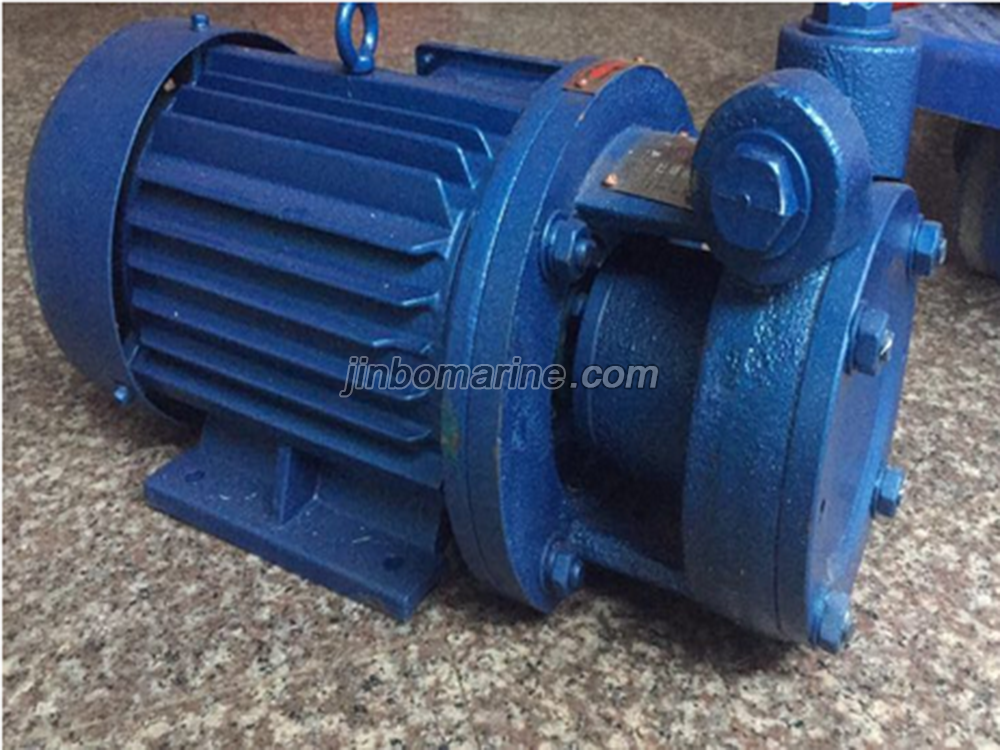

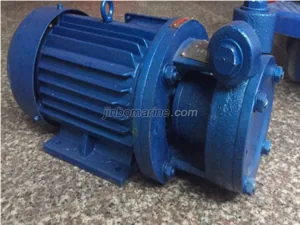

3/4W0.7-10.5 Single-stage Vortex Pump
3/4W0.7-10.5 single-stage vortex pump W. WTD. single-stage vortex pump, DB two-stage vortex pump, generally conveying liquids with a temperature not exceeding 60 ℃, non corrosive, soli...
Loading product images...
3/4W0.7-10.5 Single-stage Vortex Pump
PDF Datasheet
We can supply according to your requirement.
3/4W0.7-10.5 single-stage vortex pump
W. WTD. single-stage vortex pump, DB two-stage vortex pump, generally conveying liquids with a temperature not exceeding 60 ℃, non corrosive, solid particle free, low flow rate, high pressure, suitable for marine, land, boiler water supply, etc.
Techincal data:
| Model | Flow | Head | Speed | Motor power | efficiency | Voltage | Allow suction height | Sealing form |
|---|---|---|---|---|---|---|---|---|
| m3/n | m | r/min | kw | % | v | m | ||
| 3/4W0.7-10.5 | 0.7 | 105 | 2900 | 2.2 | 23 | 380/440 | 4 | Asbestos filler |
| 3/4WTD0.7-10.5 | 0.7 | 105 | 2900 | 1.5 | 30 | 380/440 | 5 | Mechnical seal |
| 1W2.4-10.5 | 2.4 | 105 | 2900 | 3 | 28 | 380/440 | 4 | Asbestos filler |
| 1WTD2.4-10.5 | 2.4 | 105 | 2900 | 2.2 | 30 | 380/440 | 5 | Mechnical seal |
| 1W2.5-12 | 2.5 | 120 | 2900 | 3 | 29 | 380/440 | 4 | Asbestos filler |
| 1WTD2.5-12 | 2.5 | 120 | 2900 | 3 | 30 | 380/440 | 5 | Mechnical seal |
| 1.5DB-0.7 | 2.4 | 105 | 2900 |
