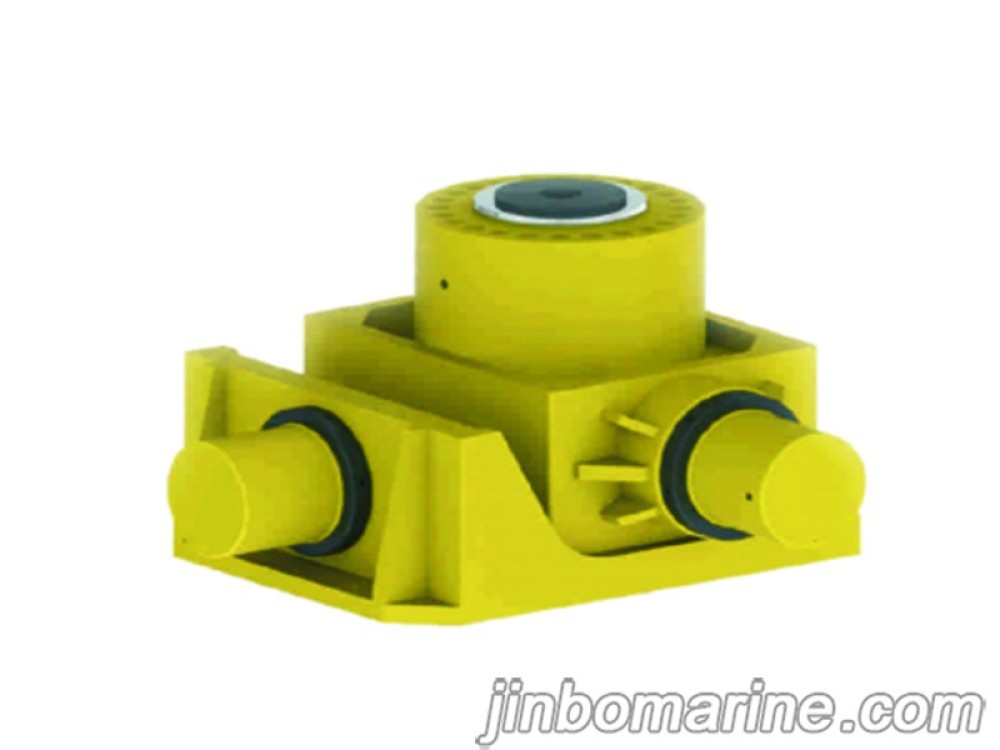

3DCS Intelligent Three Dimensional Jacking System
System features:
The load capacity is large, and the components canbe adjusted from 100 tons to 6000tons.
The precision is high, the synchronous precision can reach 0.5mm, and the jacking and descending canbe completely controlled.
The product is flexible and can be controlled flexibly according to different working conditions,oil cylinder tonnage and quantity and jacking accuracy.
Each control point is relatively independent and can be adjusted independently to one or several control points without interference between the control points.
The system adopts modular design, which can control 4,8,12,16 ,and can be extended to 99 points online.
It has data storage and recording function to facilitate the generation of reports.
The system control interface is simple,easy to operate and highly automatic.
System parameter:
| Model | Direction | Capacity | Nominal Pressure | Stroke | Effective Area | Oil Capacity | Weight | |||
| T (KN) | Mpa | mm | cm2 | cm3 | (kg) | |||||
| 3DCS-100 | Vertical | 100 | 70 | 200 | 132.7 | 2655 | 312 | |||
| Horizontal | 30 | 100 | 42.1 | 400 | ||||||
| Longitudinal | 30 | 100 | 42.1 | 400 | ||||||
| 3DCS-200 | Vertical | 200 | 70 | 200 | 256.9 | 5318 | 519 | |||
| Horizontal | 50 | 100 | 77 | 770 | ||||||
| Longitudinal | 50 | 100 | 77 | 770 | ||||||
| 3DCS-300 | Vertical | 300 | 70 | 200 | 456.2 | 9124 | 738 | |||
| Horizontal | 75 | 100 | 102.6 | 1067 | ||||||
| Longitudinal | 75 | 100 | 102.6 | 1067 | ||||||
| 3DCS-500 | Vertical | 500 | 70 | 200 | 730.6 | 14612 | 1904 | |||
| Horizontal | 150 | 100 | 198.6 | 1986 | ||||||
| Longitudinal | 150 | 100 | 198.6 | 1986 | ||||||
| 3DCS-800 | Vertical | 800 | 70 | 200 | 1176.3 | 23524 | 3858 | |||
| Horizontal | 200 | 100 | 256.9 | 2660 | ||||||
| Longitudinal | 200 | 100 | 256.9 | 2660 | ||||||
| 3DCS-1000 | Vertical | 1000 | 70 | 200 | 1465.7 | 29316 | 5366 | |||
| Horizontal | 300 | 100 | 456.2 | 4562 | ||||||
| Longitudinal | 300 | 100 | 456.2 | 4562 | ||||||
