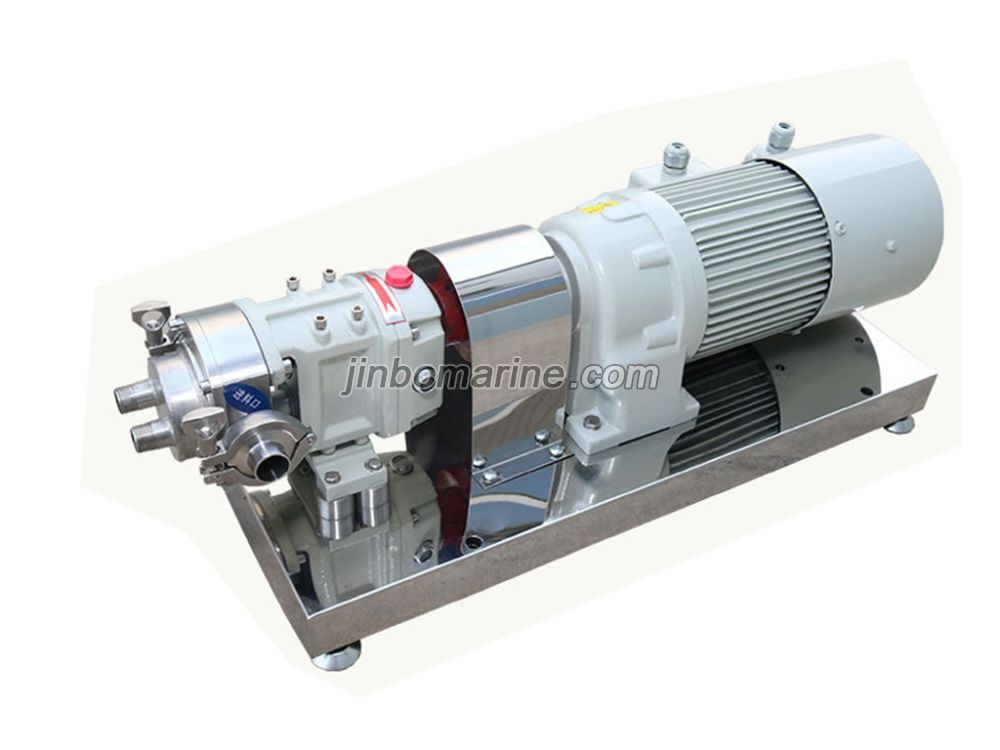

3RP Series Rotary Lobe Pump
BRIEF INTRODUCTION (1) Feature It belongs to positive displacement pump and has the advantages of outstanding self -priming, high efficiency and long life. It applies to deliveri...
3RP Series Rotary Lobe Pump
PDF Datasheet
We can supply according to your requirement.
BRIEF INTRODUCTION
(1) Feature
It belongs to positive displacement pump and has the advantages of outstanding self -priming, high efficiency and long life. It applies to delivering suspension liquid with soft solid particles, corrosive medium and suspension 1iquid. The delivered medium temperature range from -30C to +180C and viscosity range from 30cSt to 1.0x 10' cSt. The parts of contact with medium adopt stainless steel. The rotating speed can be adjusted according to the delivered medium' s physical property.
(2) Application
It applies to food、drink、brewing、medica1 industry. daily and
chemical industry. petroleum industry etc.
Technical data
| Model | Displacement (L/100r) | Max. Differential Pressure (MPa) | Port (mm) | Max. Speed (r/min) | Motor Power （KW) |
| 3RP6/0.6 | 6 | 0.6 | 25 | 960 | 1.5 |
| 3RP8/0.4 | 8 | 0.4 | 25 | 960 | 1.5 |
| 3RP12/1.0 | 12 | 1 | 25 | 960 | 4 |
| 3RP21/0.6 | 21 | 0.6 | 40 | 960 | 5.5 |
| 3RP28/0.4 | 28 | 0.4 | 50 | 960 | 4 |
| 3RP36/1.0 | 36 | 1 | 50 | 720 | 11 |
| 3RP52/0.6 | 52 | 0.6 | 50 | 720 | 11 |
| 3RP66/0.4 | 66 | 0.4 | 80 | 720 | 7.5 |
| 3RP78/1.0 | 78 | 1 | 80 | 720 | 22 |
| 3RP107/0.6 | 107 | 0.6 | 80 | 720 | 18.5 |
| 3RP156/0.4 | 156 | 0.4 | 100 | 720 | 18.5 |
