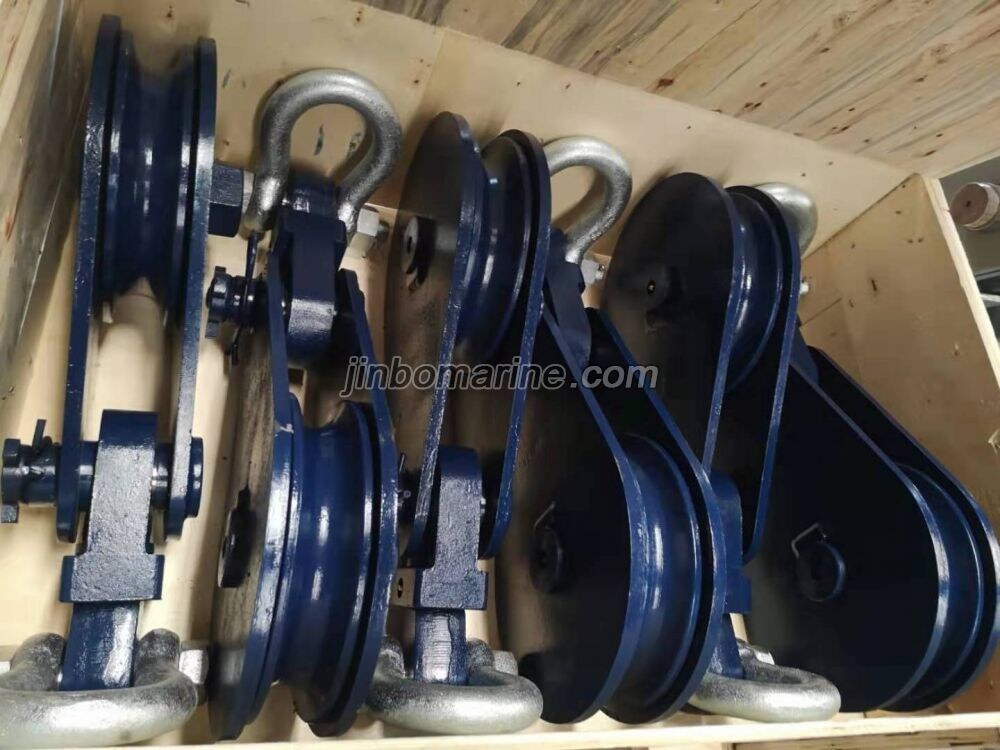

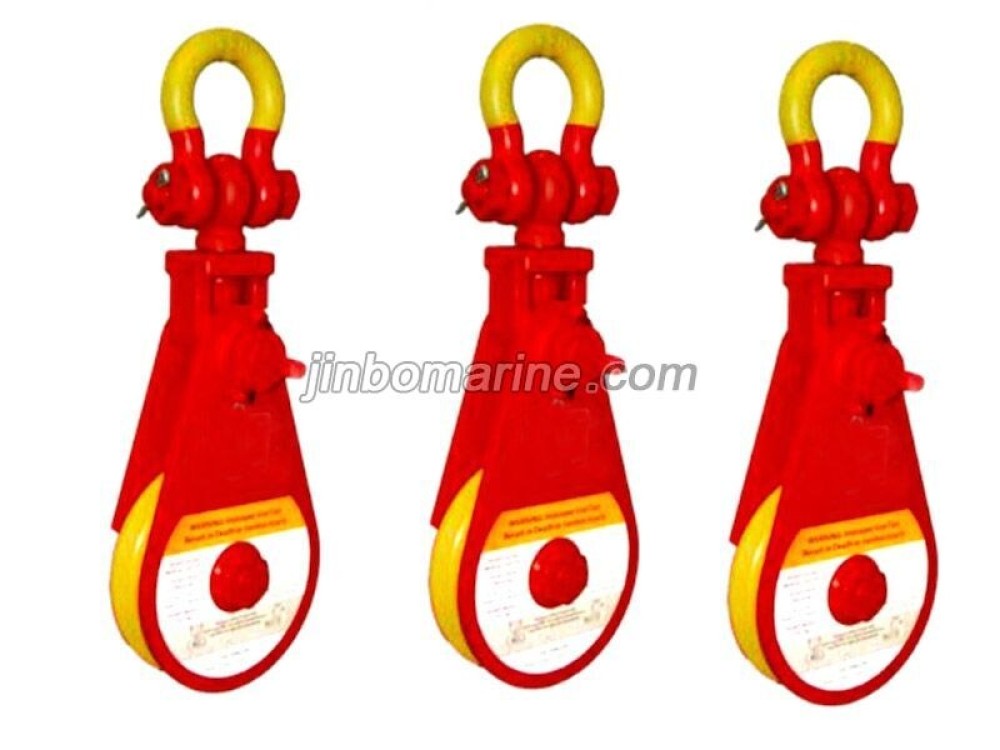

4Ton to 20Ton SWL Alloy Snatch Blocks

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China 4Ton to 20Ton SWL Alloy Snatch Blocks:

Forged alloy hooks and shackles heat treated for toughness.

Interchangeble hook and shackle connector options.

Available with bronze bushing, composite bushing or roller bearing.

Captured attaching pin allows convenient reeving while block is suspended.

Larger sheaves and WLL available upon request.

MODEL # SHEAVE DIAMETER BEARING TAILBOARD SWIVEL HOOK# SWIVEL SHACKLE/EYE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS)
4"4T 4" BB 1000135 1000136 1000137 3/8 1月2日 4
6"8T 6" BB 1000141 1000142 1000143 5/8 3月4日 8
8"8T 8" BB 1000144 1000145 1000146 5/8 3月4日 8
8"15T 8" BB 1000187 1000700 1000703 3/4 7月8日 15
8"20T 8" BB 1000710 1000711 1000712 1 1 1/8 20
10"8T 10" BB 1000150 1000151 1000152 5/8 3月4日 8
10"15T 10" BB 1000340 1000341 1000342 3/5 7月8日 15
10"20T 10" BB 1000807 1000808 1000809 1 1 1/8 20

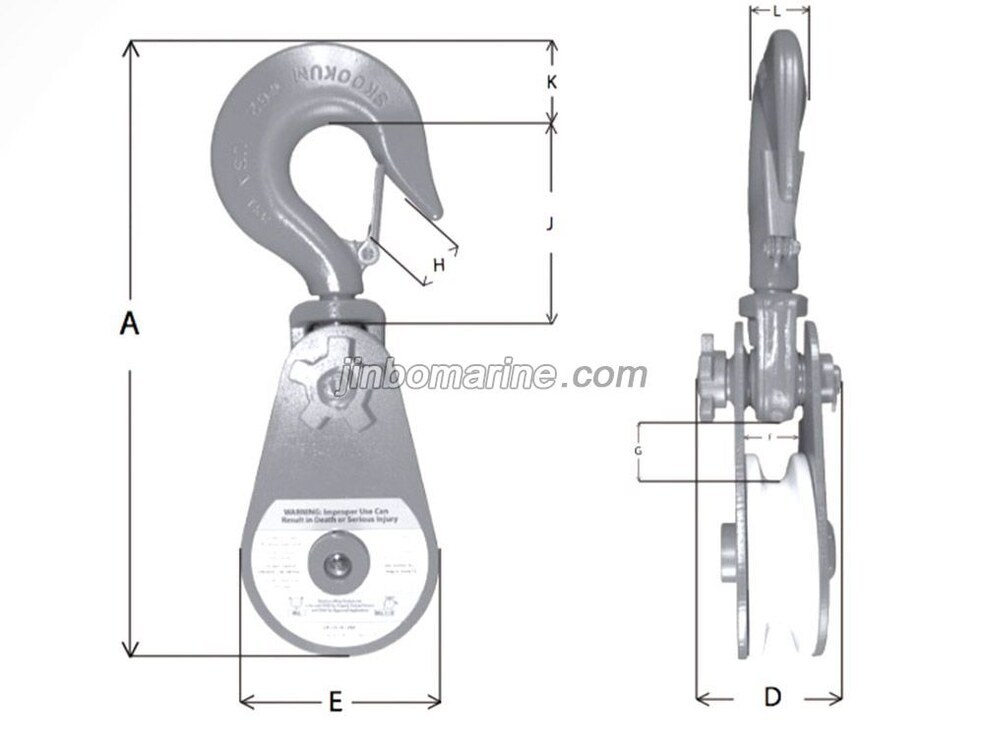

OVERALL HOOK HEIGHT OVERALL THICKNESS OVERALL WIDTH INSIDE THROAT WIDTH THROAT WIDTH HOOK OPENING HOOK HEIGHT HOOK TOP HEIGHT HOOK TOP THICK
A D E F G H J K L
13.6 3.3 4.06 1.5 1 1.35 5.2 1.5 1.13
18.65 4.25 6 1.91 1.21 1.7 6.33 2.38 1.5
20.65 4.25 8 1.91 1.21 1.7 6.33 2.38 1.5
23.85 4.43 8.25 1.97 1.13 2.77 8.71 2.64 2.02
26.73 6.19 8.13 2.56 1.26 3.51 9.75 3.15 2.52
22.65 4.25 10 1.91 1.21 1.7 6.33 2.38 1.5
25.85 4.43 10.25 1.97 1.13 2.77 8.71 2.64 2.02
28.73 6.19 10.13 2.56 1.26 3.51 9.75 3.15 2.52
