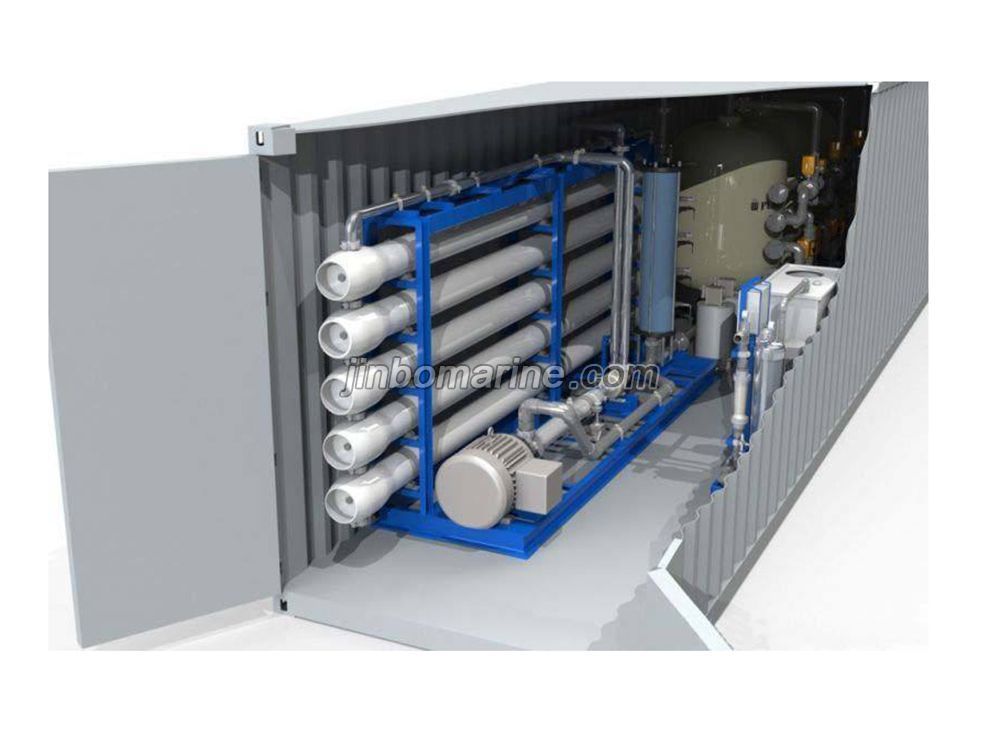

50Ton/day Sea Water Reverse Osmosis System
ZC-FSHB50 50Ton/day Sea Water Reverse Osmosis System: Fresh water standard comply with WHO Capacity: 50Ton/day Salt content: ≤600mg/L Raw water: sea water...
50Ton/day Sea Water Reverse Osmosis System
PDF Datasheet
We can supply according to your requirement.
ZC-FSHB50 50Ton/day Sea Water Reverse Osmosis System:
Capacity: 50Ton/day
Salt content: ≤600mg/L
Raw water: sea water
Other basic design condition related
Purpose：Marine and offshore
Power supply：380V，50 HZ，3P
System Function:
1. Sea water 35000-38000ppm, for desalinating sea water into fresh water 600ppm
2. Whole system under control and monitoring via Automatatical.
3. Semi-automatic cleaning and back-flushing system equipped for sand filter,
4. There is over-pressure protection available for high pressure pump, when pressure is over 6.5Mpa, the system will shut down automatically.
High pressure pump equipped with low-pressure protection device, when pre-treated sea water pressure is less than 0.05Mpa, the system will shut down automatically and give alarm for attention.
5. Working parameter (product flow, brine flow, operation pressure, product water conductivity)
6. If the product water is unqualified (salt content more than 700ppm), the system will drain automatically and give alarm for attention.
7. Potential-free alarm and running indication available for extension.
Technical Parameter：
| Product ： | 50m3/day |
| Raw water ： | 35000PPM |
| Inlet temperature ： | 5~35℃ |
| PH value of Raw Water ： | 3.0~10.0 |
| Boosting inlet pressure： | 0.1~1kg/cm2 (Positive) |
| Salt content of product water ： | ≤600PPM |
| Desalination rate ： | ≥98.5% |
| Product water pressure ： | ≤0.3Mpa |
| Recovery ： | ≈25% |
| Power supply ： | 380VAC/50HZ/3φ |
| Power consumption ： | ≈6.6KW（Include boost pump） |
| Control cabinet： | 220VAC |
| Control voltage: 220VAC | |
| IP: IP55 | |
| Potential-free extension for running indication and common alarm available. | |
| Motor ： | IP： IP55 |
| Insulation class: “F” |
